Secondary Air Injection Relay, Location

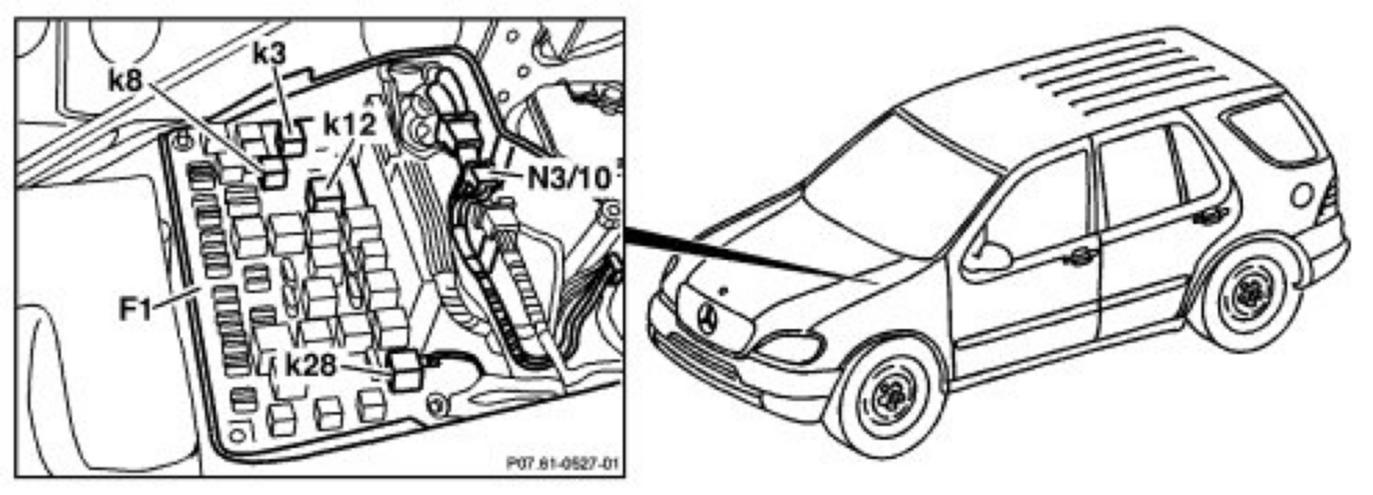

Secondary Air Injection Relay, Position




Location model 163
F1 Fuse and relay module
k3 Fuel pump relay
k8 Starter relay
k12 Circuit 15 relay
k28 Air injection relay
N3/10 ME-SFI [ME] control module
