Interior Lighting Module: Locations

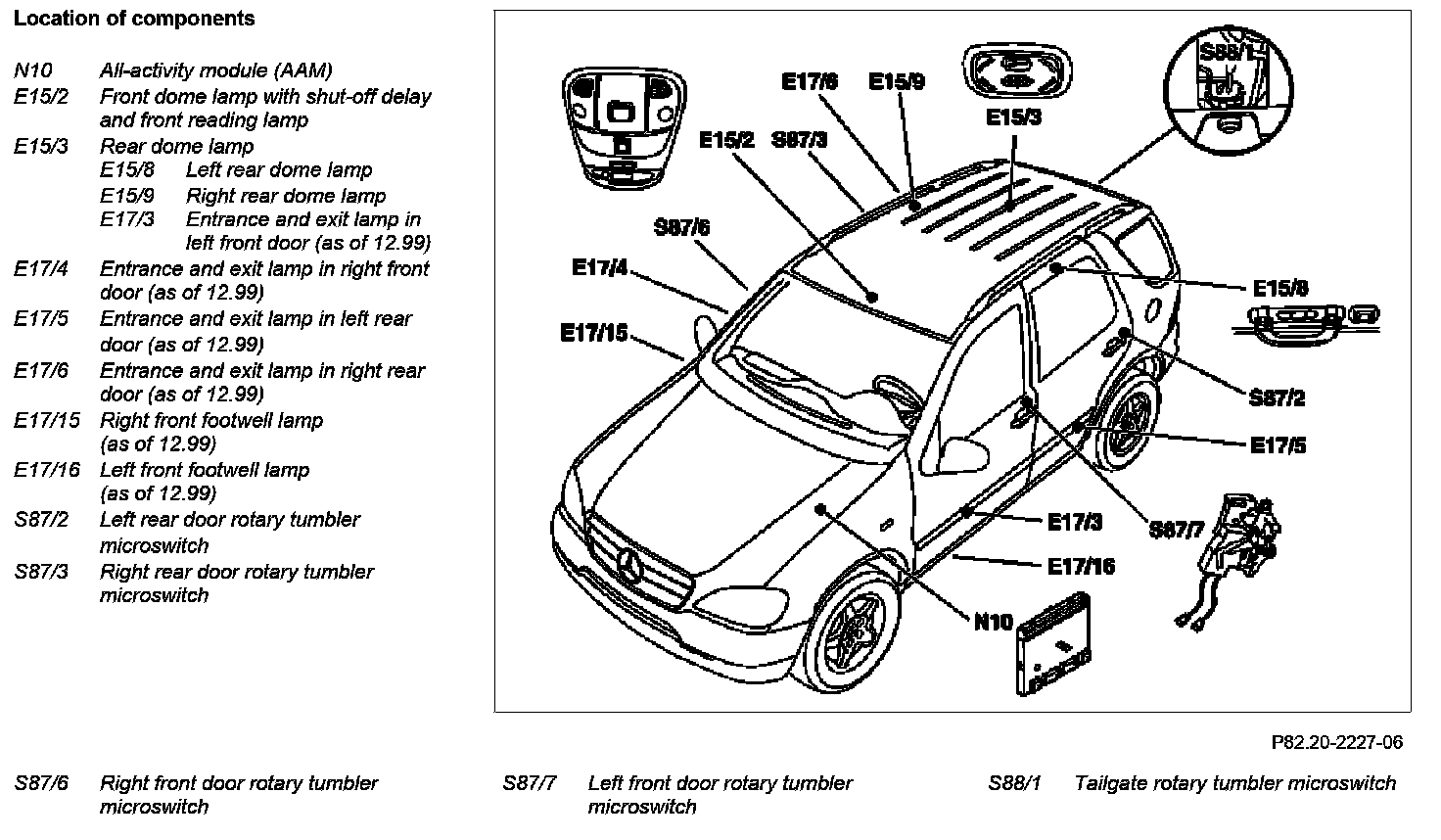

GF82.20-P-0002-01GH Interior lighting (IL), location of components
