Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Headlamp Alignment Control Module >> Locations

Headlamp Alignment Control Module: Locations

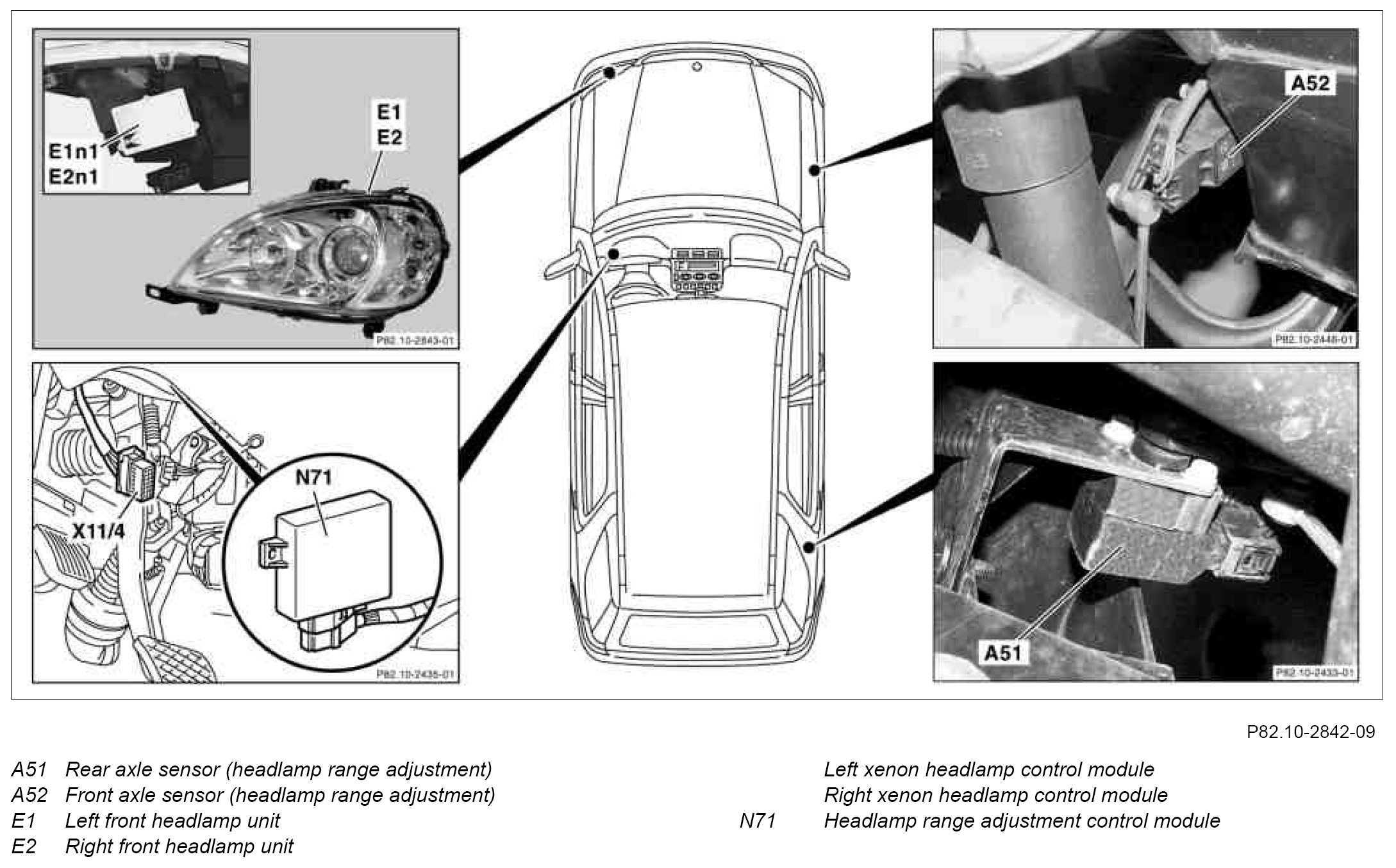

GF82.10-P-0001-01GHA Headlamp Range Adjustment (HRA), Location Of Components
- with CODE (614) Bi-xenon headlamp unit
