Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Traction Control Module >> Service and Repair >> SM42.45-P-0001GH Repair Wiring Harness Connector on ESP Control Module

SM42.45-P-0001GH Repair Wiring Harness Connector on ESP Control Module

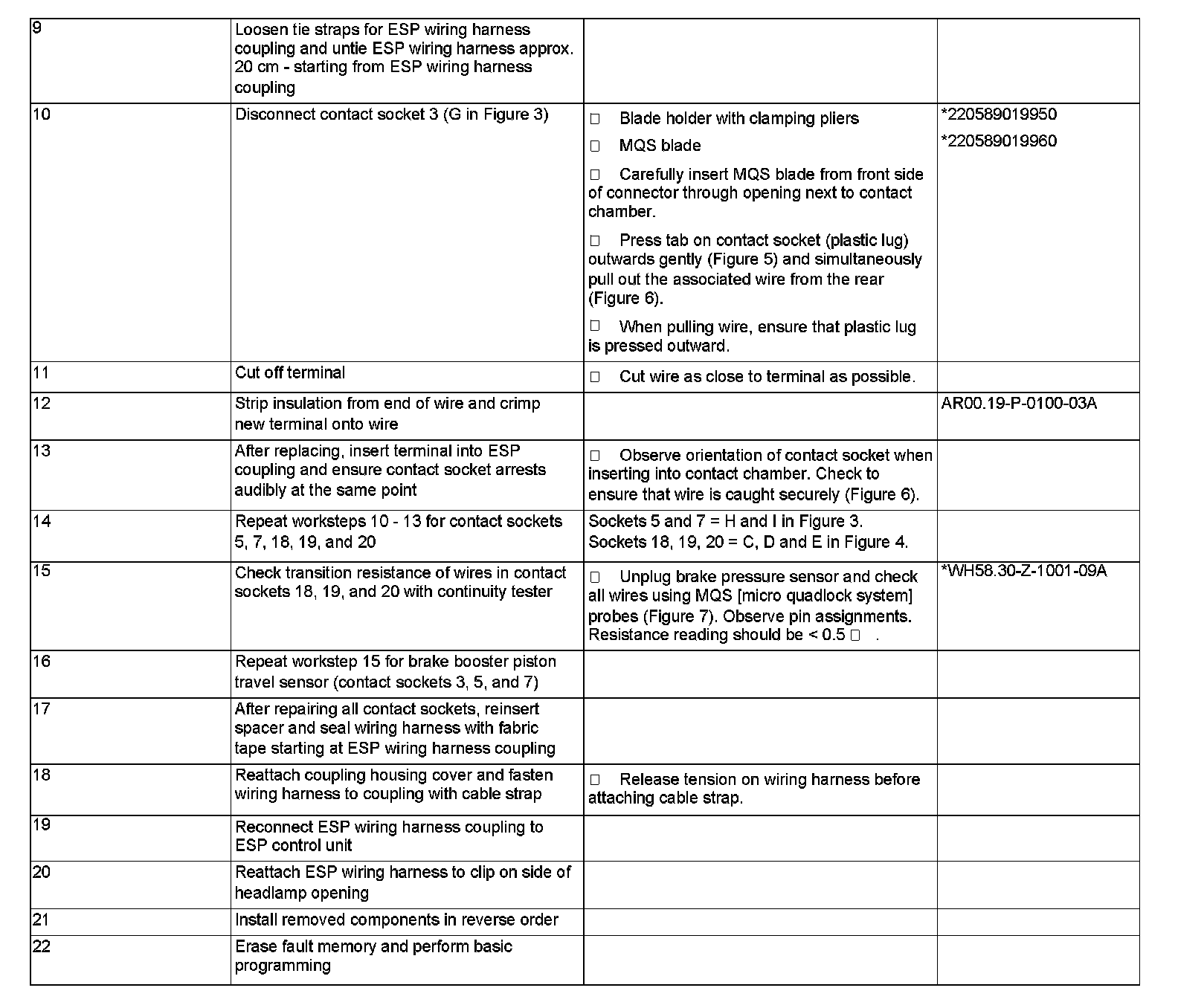

Repair wiring harness connector on ESP control module
