AR54.21-P-0816GJ Remove/Install Traction Systems Control Unit



AR54.21-P-0816GJ Remove/Install Traction Systems Control Unit
- Model 163.175 #A as of 371935
- Model 163.157

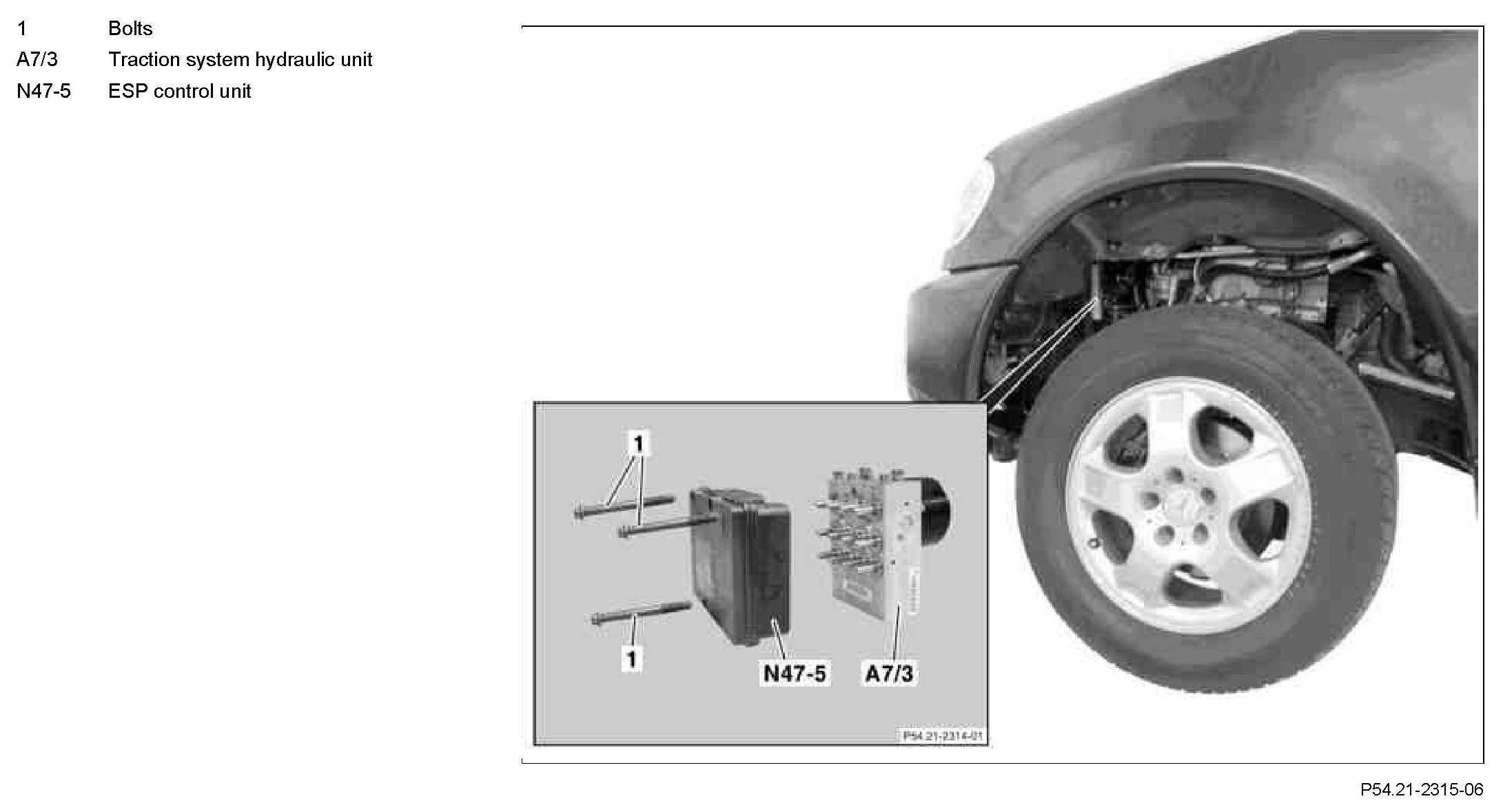

Component Identification:

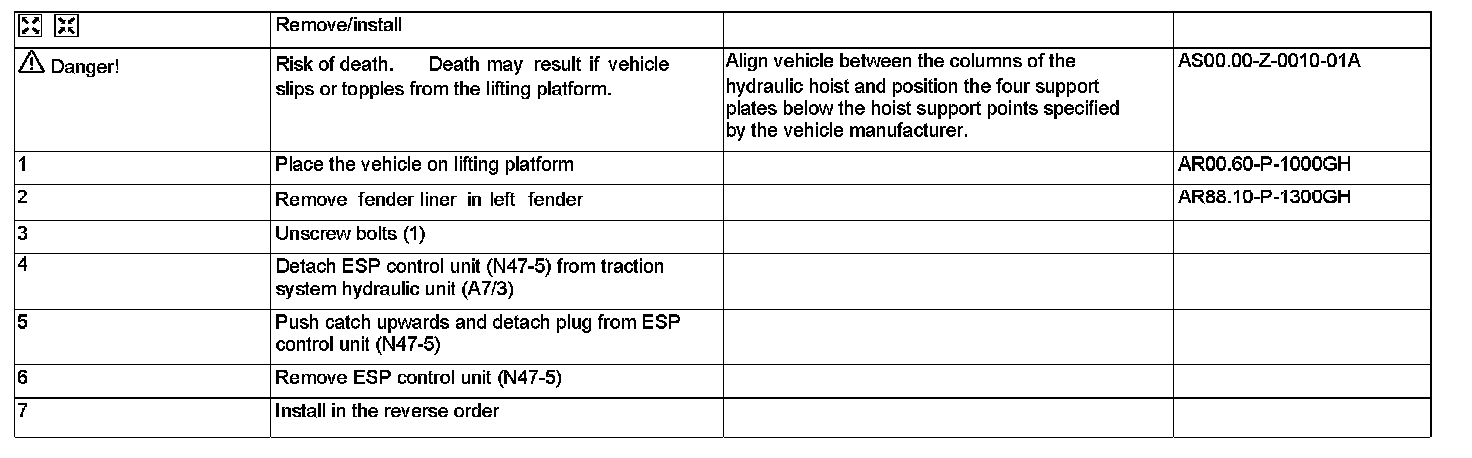

Steps 1 - 7:
