AR54.21-P-0816GI Remove/Install Traction Systems Control Module



AR54.21-P-0816GI Remove/Install Traction Systems Control Module
- Model 163.175 #A as of 221506 up to 371934
- Model 163.154/172/174 #A as of 221506
- Model 163.154/172 #X as of 734088, with CODE (472a) Electronic Stability Program

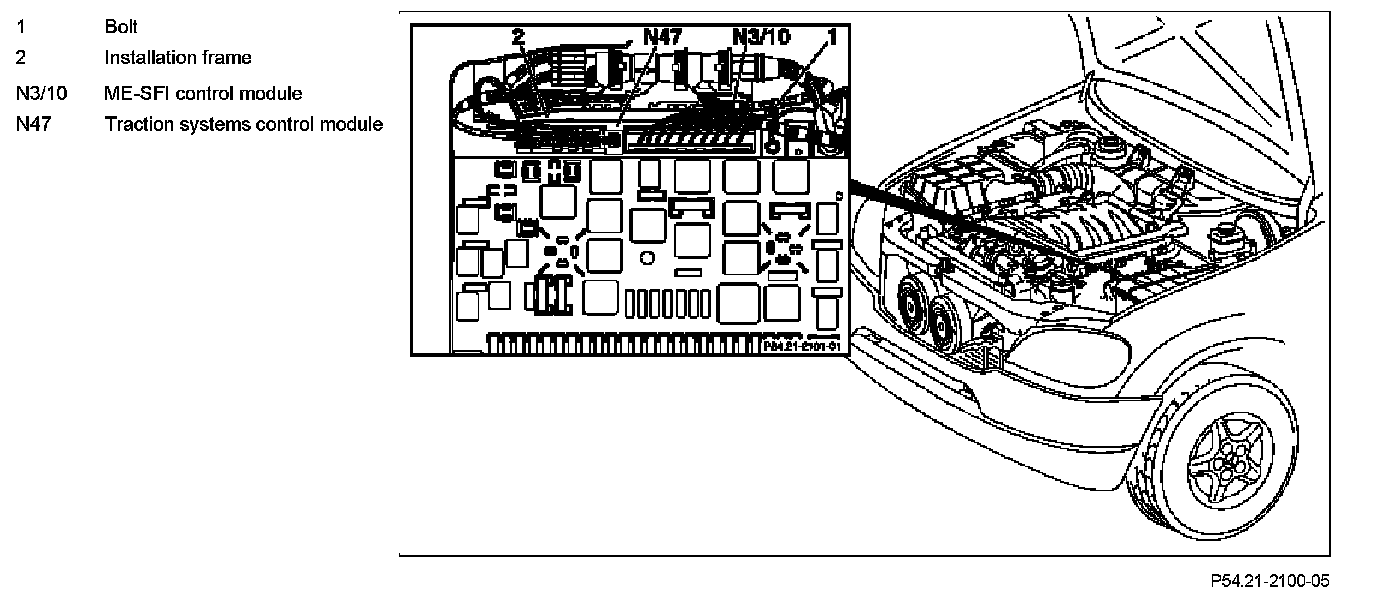

Component Identification:

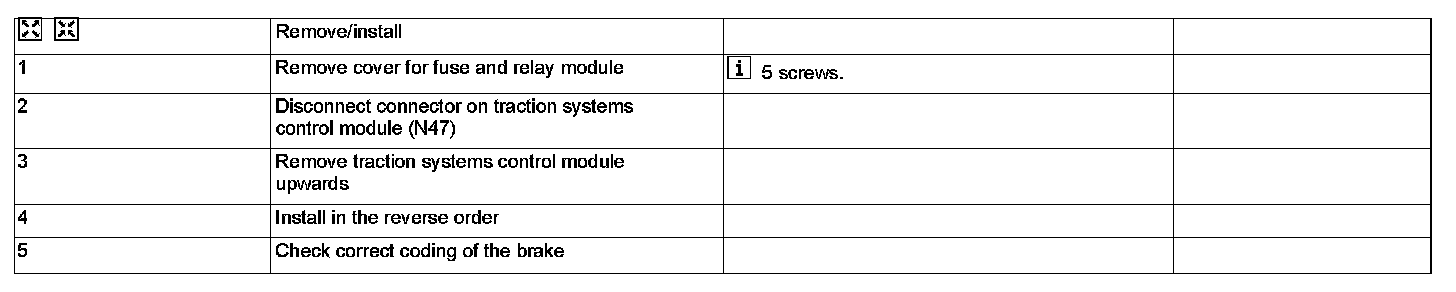

Steps 1 - 5:
