Emergency Contact Module: Diagrams

Emergency Call System PE82.95-U-2100GJ
- with CODE (347a) Emergency Call System (D2B)

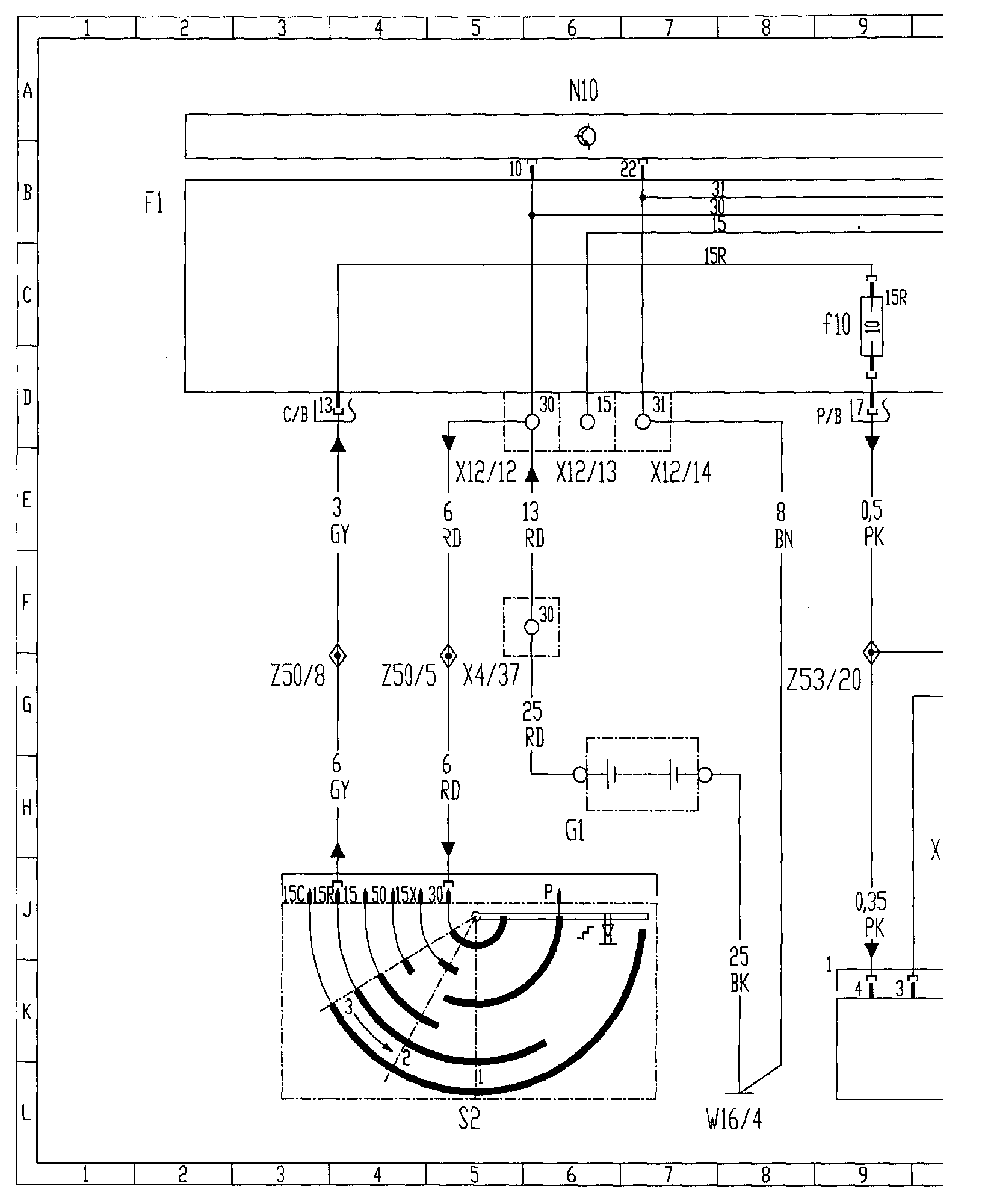

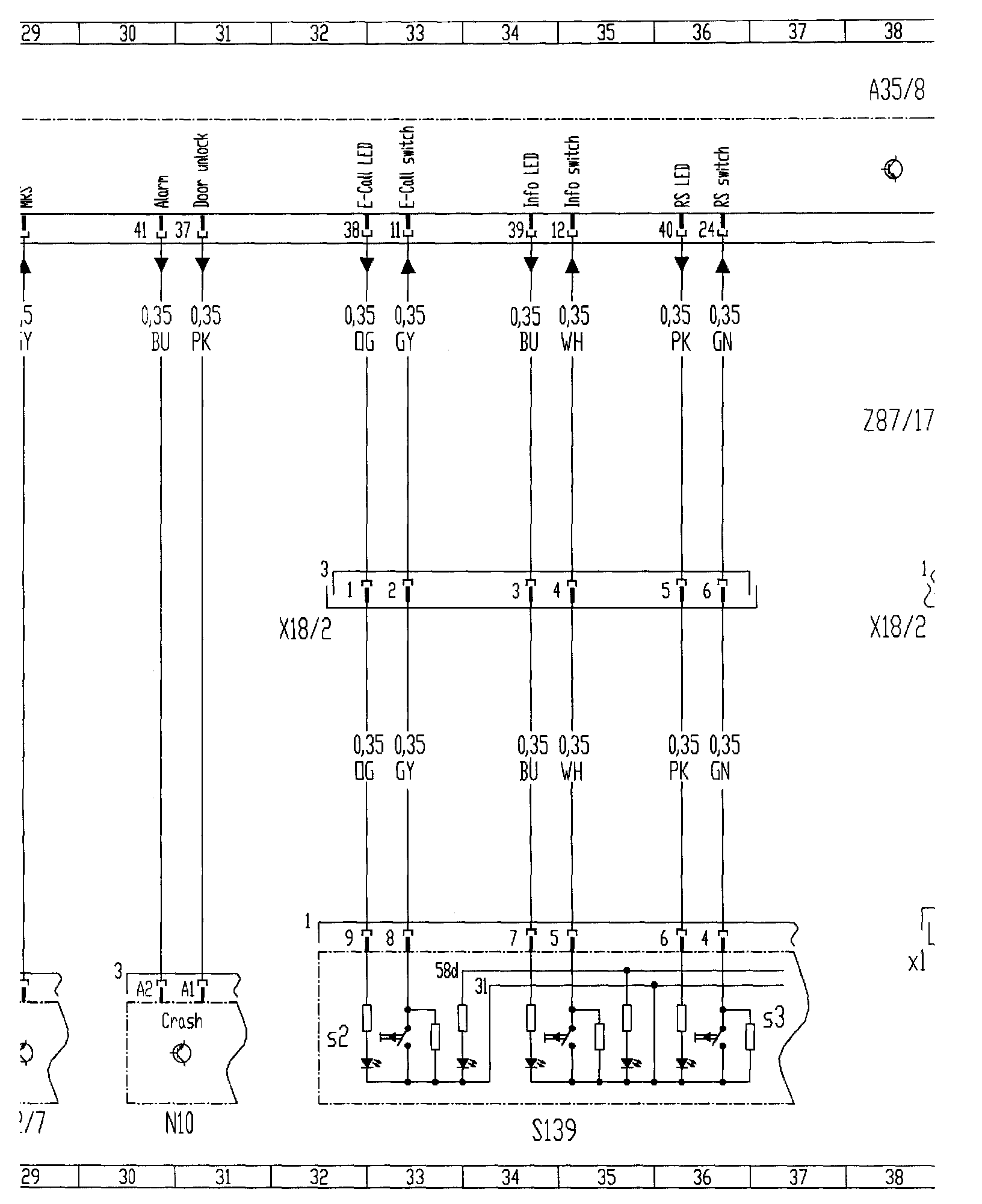

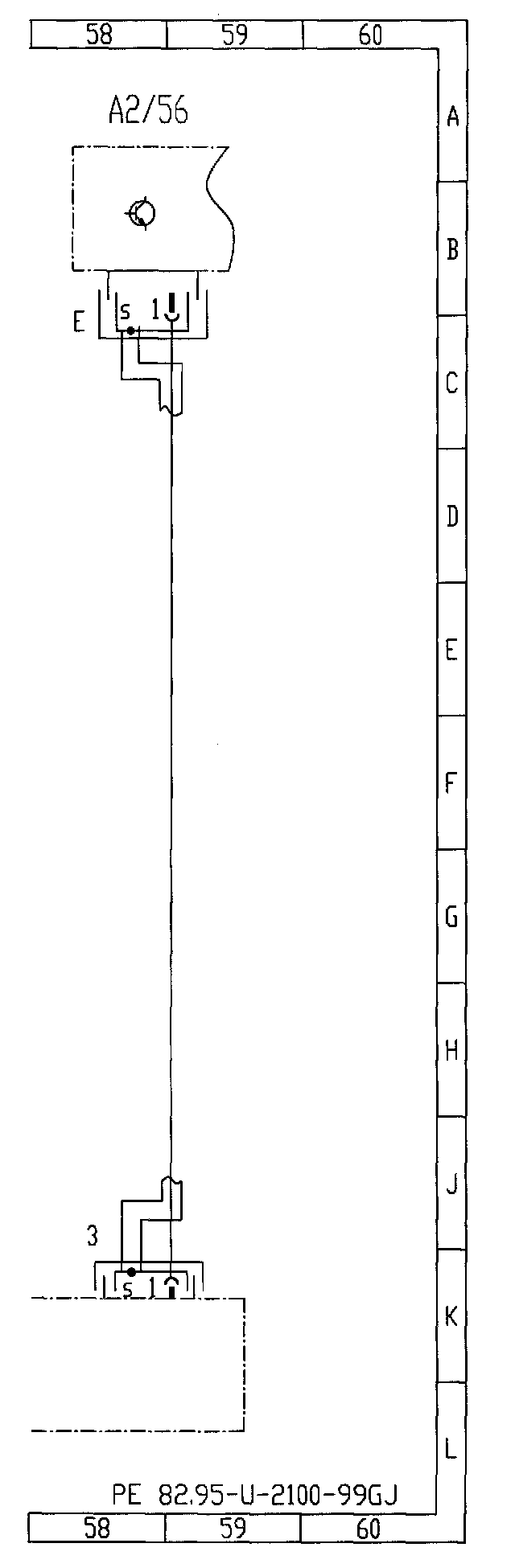

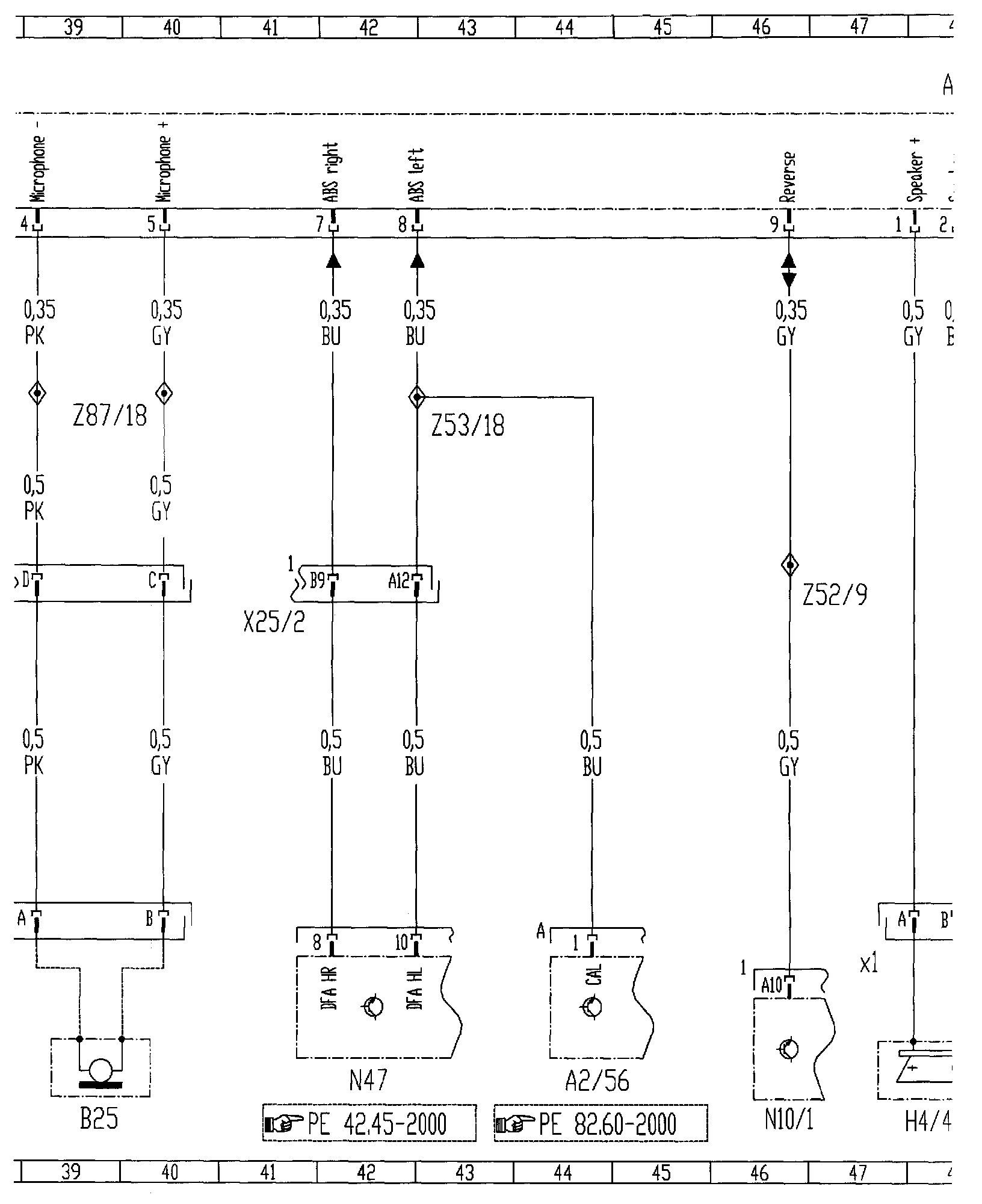

EMERGENCY CALL System:






EMERGENCY CALL System:






EMERGENCY CALL System:






EMERGENCY CALL System:






EMERGENCY CALL System:






EMERGENCY CALL System:






EMERGENCY CALL System:

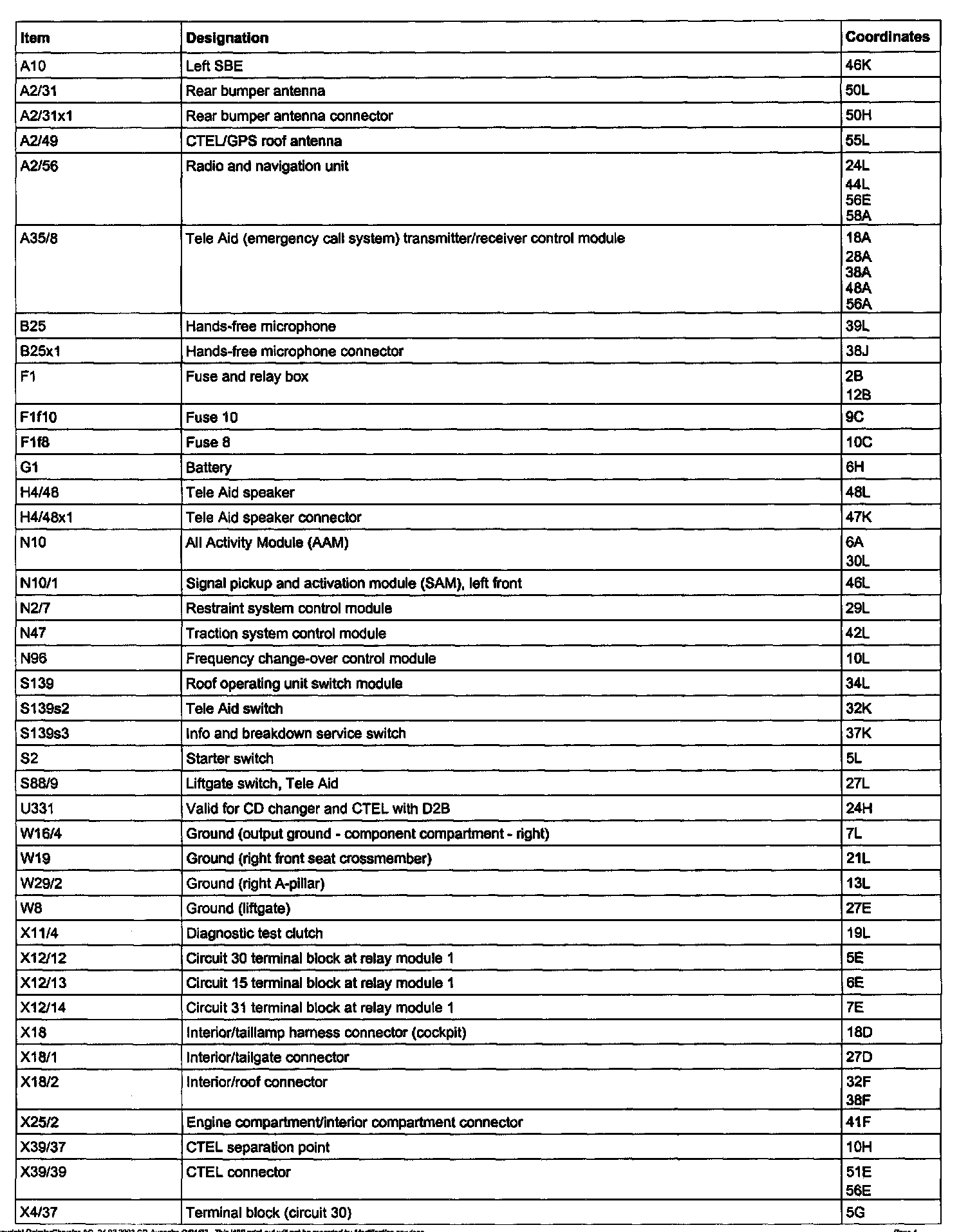

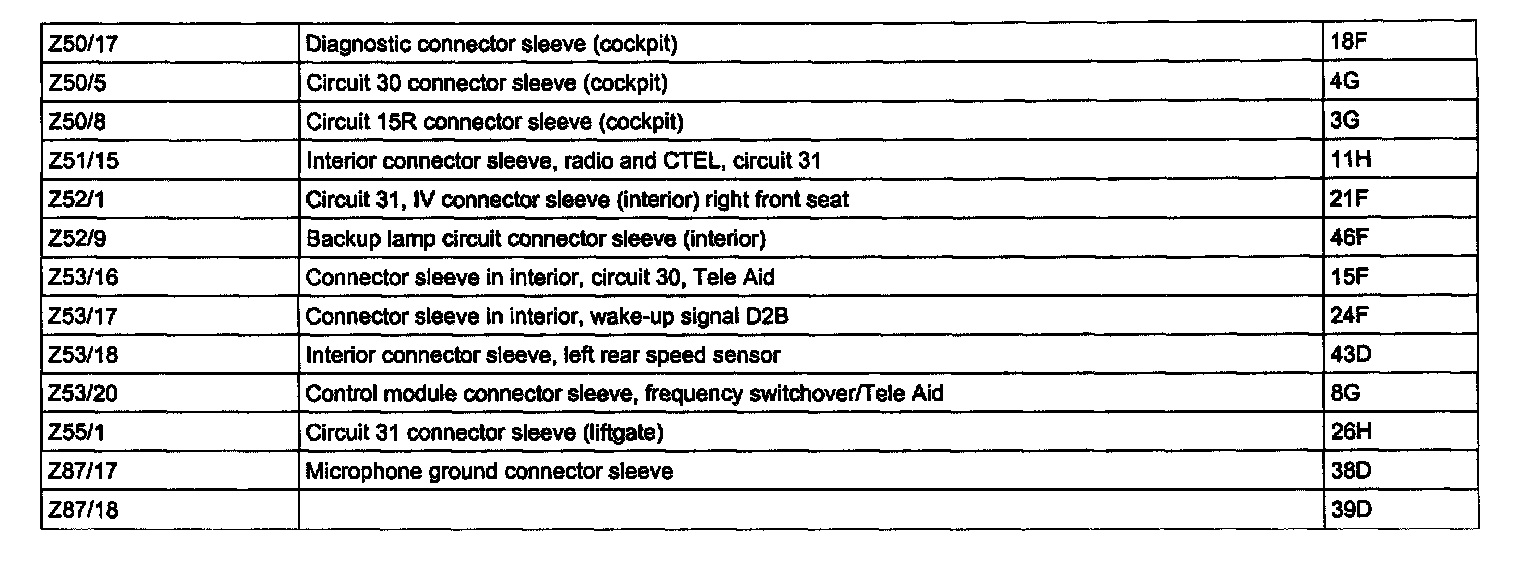

Legend For EMERGENCY CALL System:






Legend For EMERGENCY CALL System:
