AR01.10-P-0010-01V Connect Compression Tester

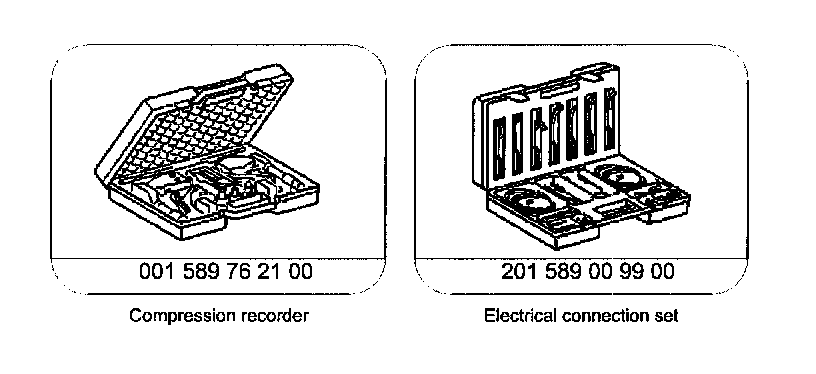

Compression Recorder & Electrical Connection Set:

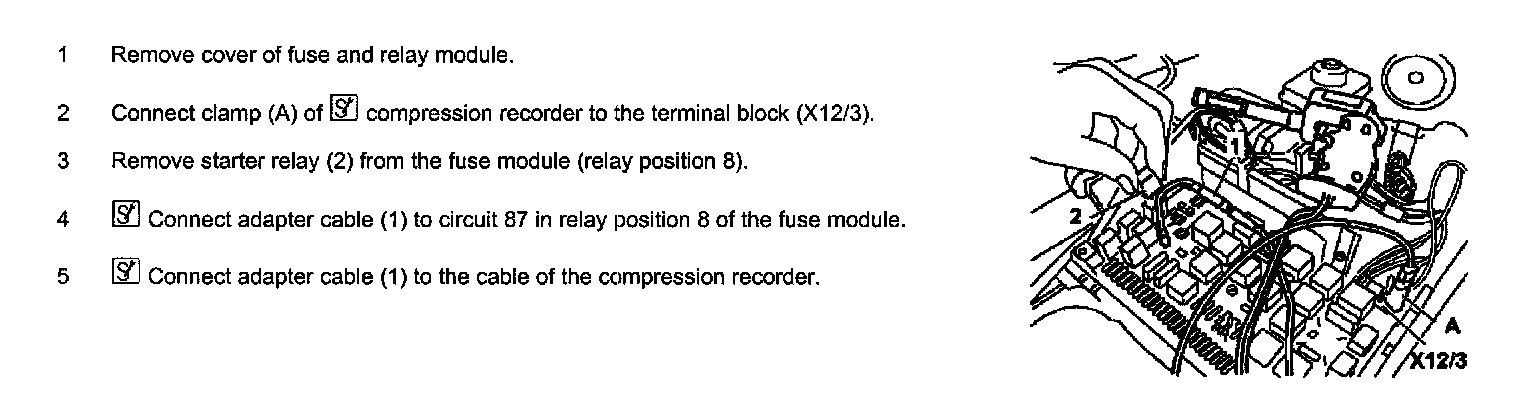

Operation Illustration:
