Ignition Switch Lock Cylinder: Service and Repair
AR46.10-P-0800GH Remove/install lock cylinder

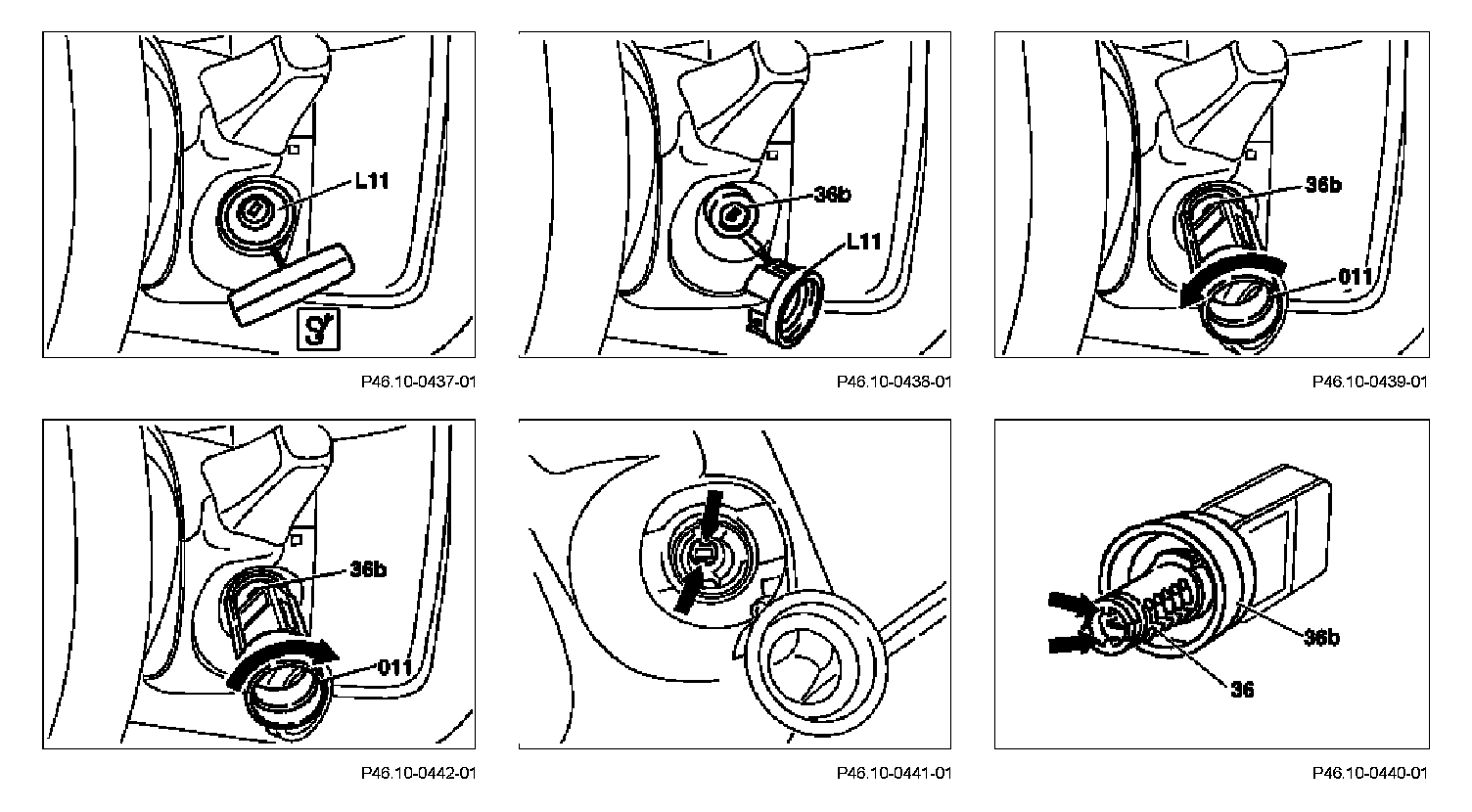

Component Identification:

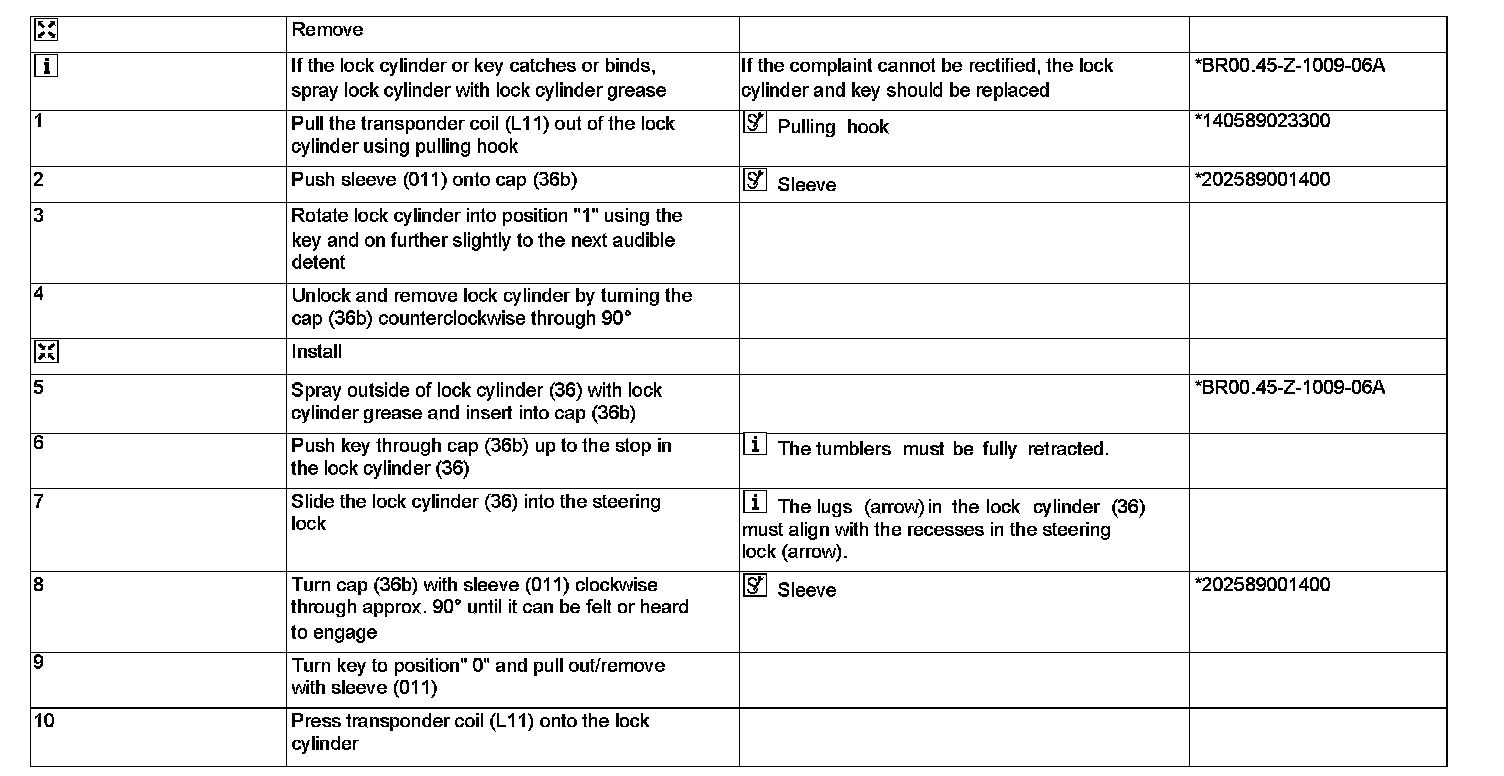

Steps 1 - 10:

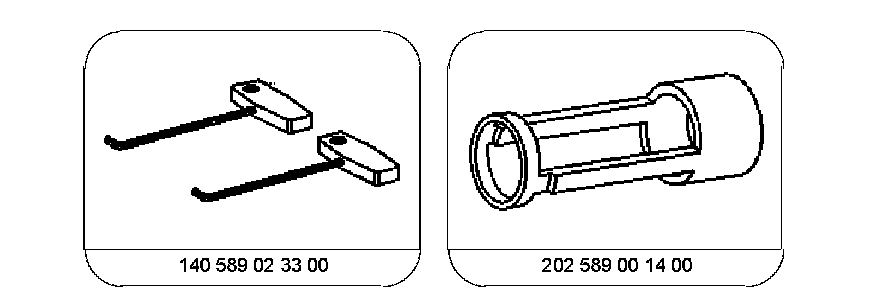

Special Tools:

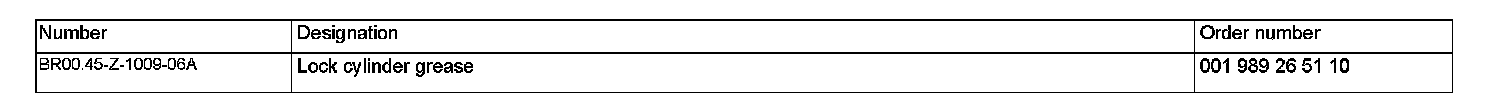

Repair Products:
