Fuel Pump Relay
>>
Description and Operation
>>
Fuel Pump Relay, Location/Task/Design/Function
>>
Fuel Pump Relay, Location
>>
Up to 31.Aug.01
Up to 31.Aug.01

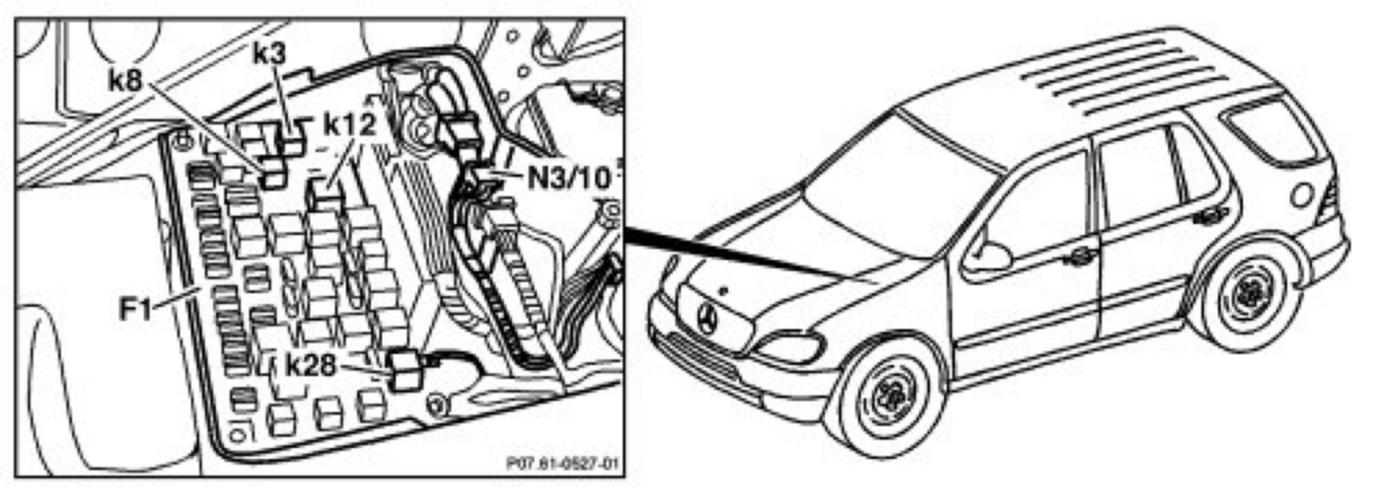

Fuel Pump Relay, Position
F1
Fuse and relay module
k3
Fuel pump relay
