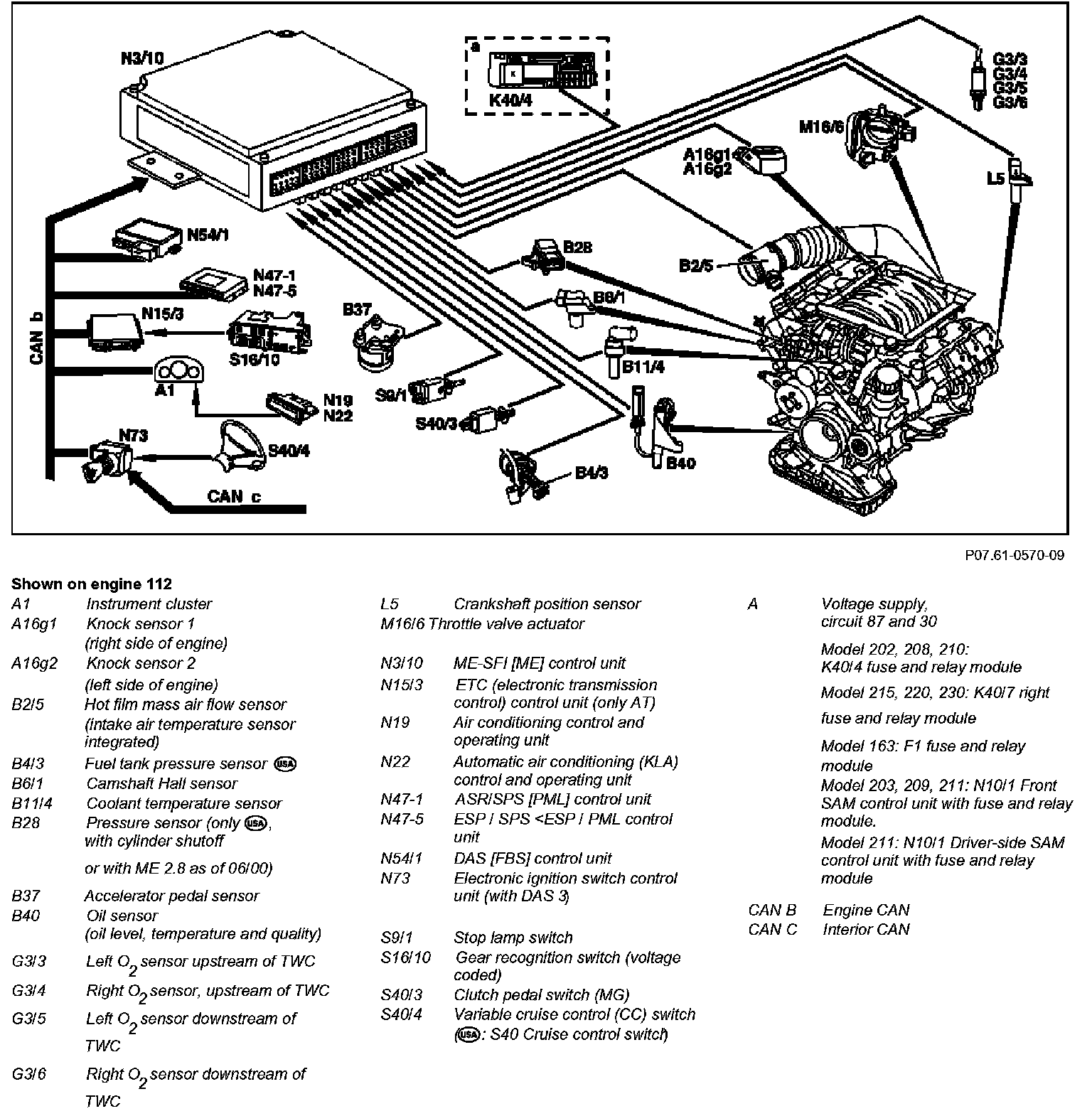

GF07.61-P-0001-06A Motor Electronics (ME-SFI) Fuel Injection and Ignition System Control Unit, Input Signals



GF07.61-P-0001-06A Motor Electronics (ME-SFI) Fuel Injection And Ignition System Control Unit, Input Signals
