Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Service and Repair >> Procedures >> AR82.70-P-0005GJ Fiber Optical Cable (D2B) Replace Complete (After Testing)

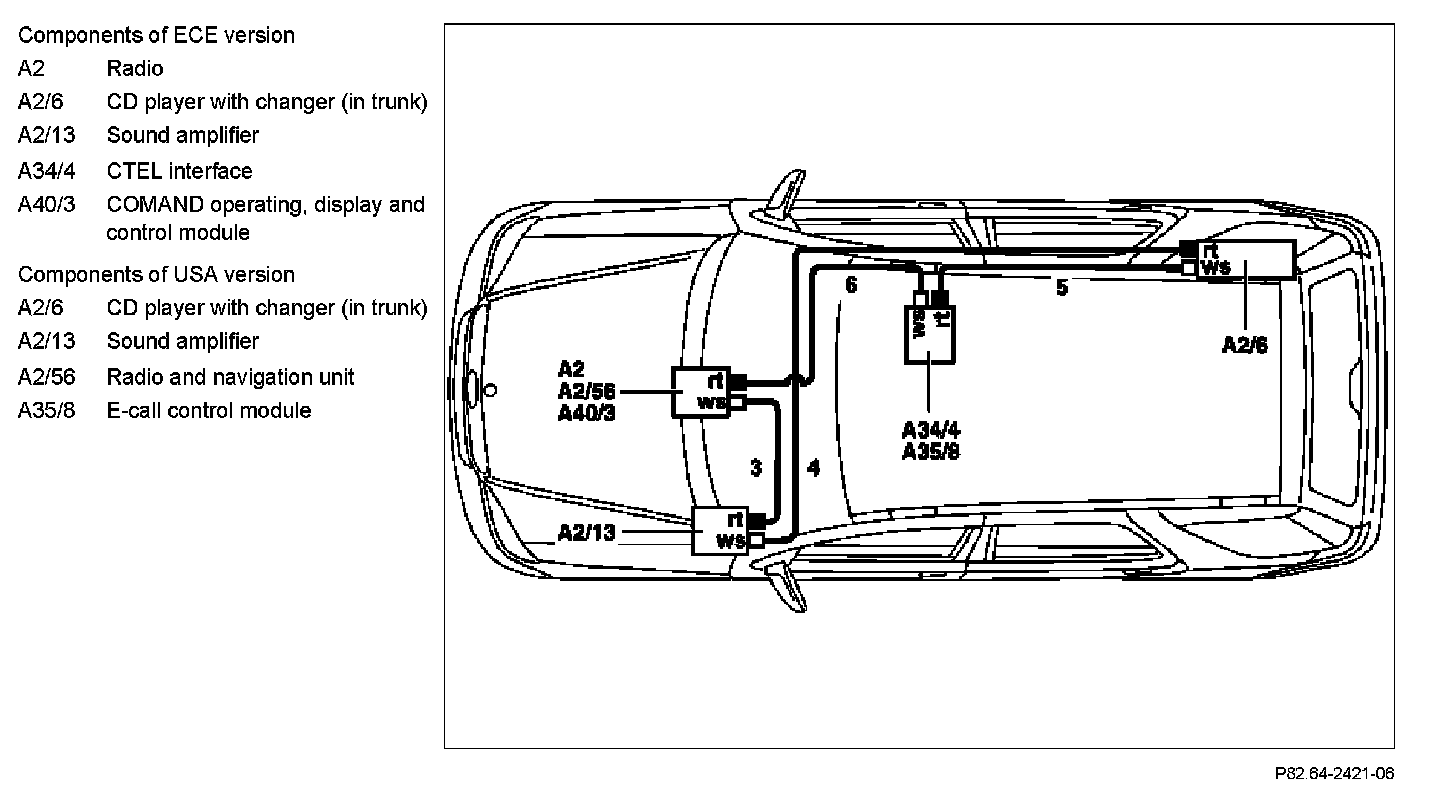

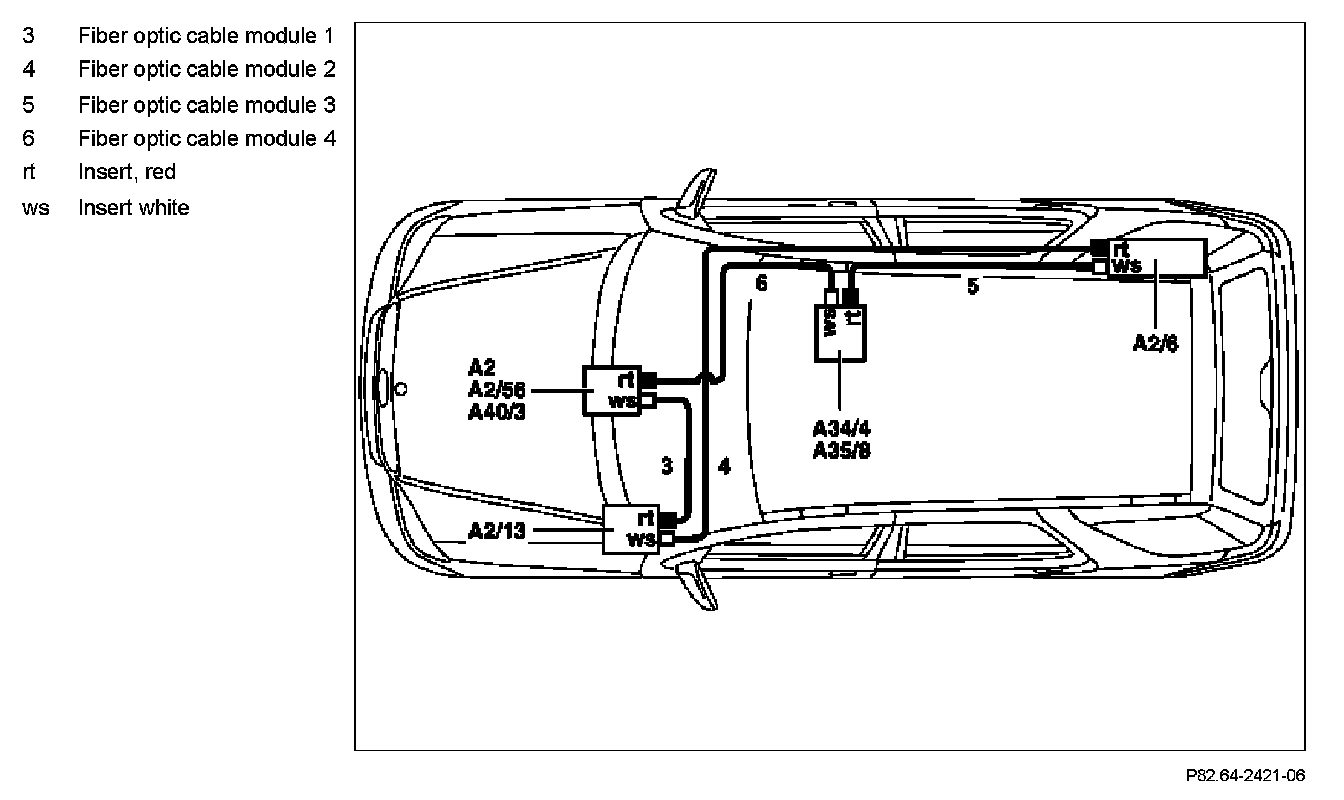

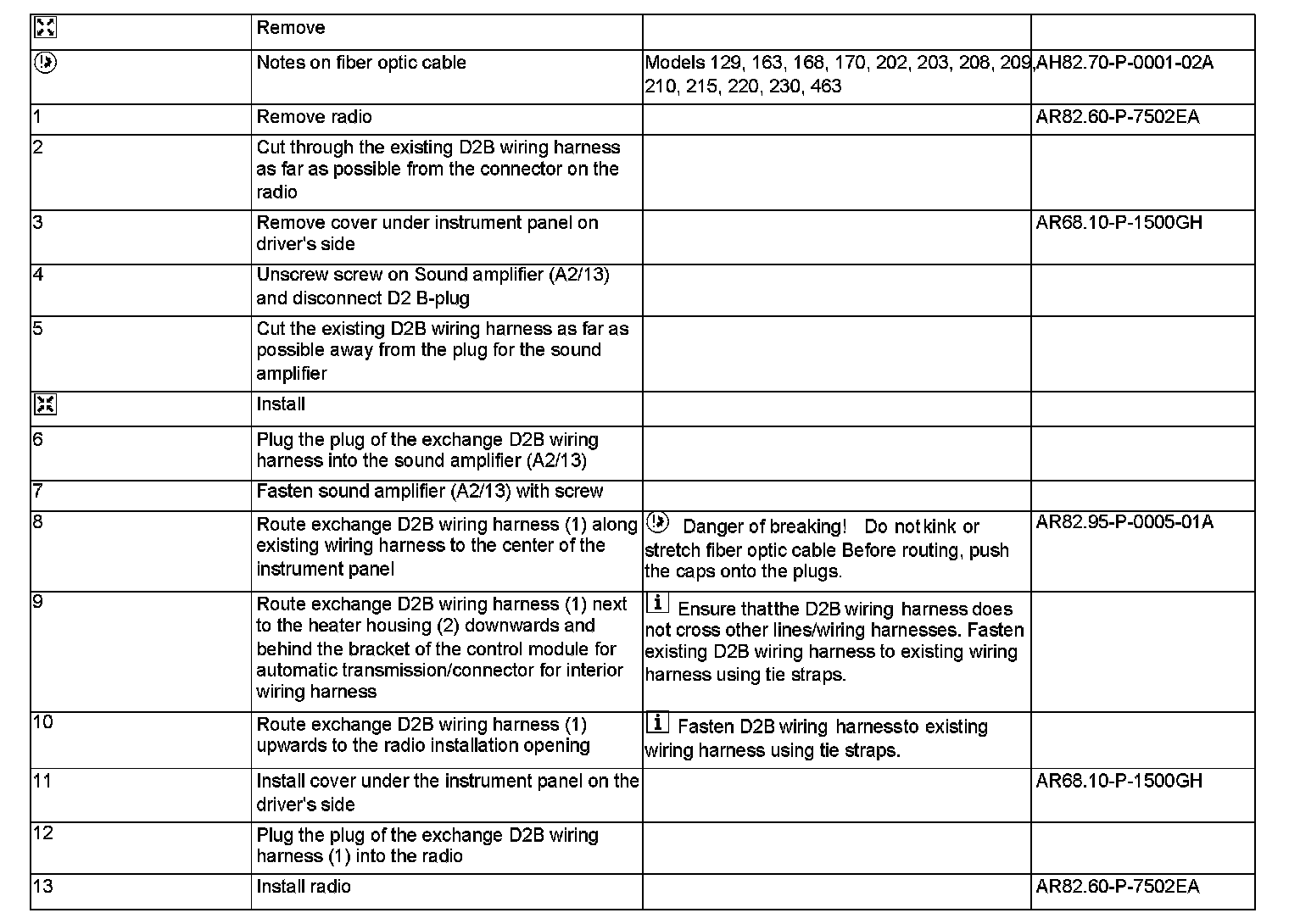

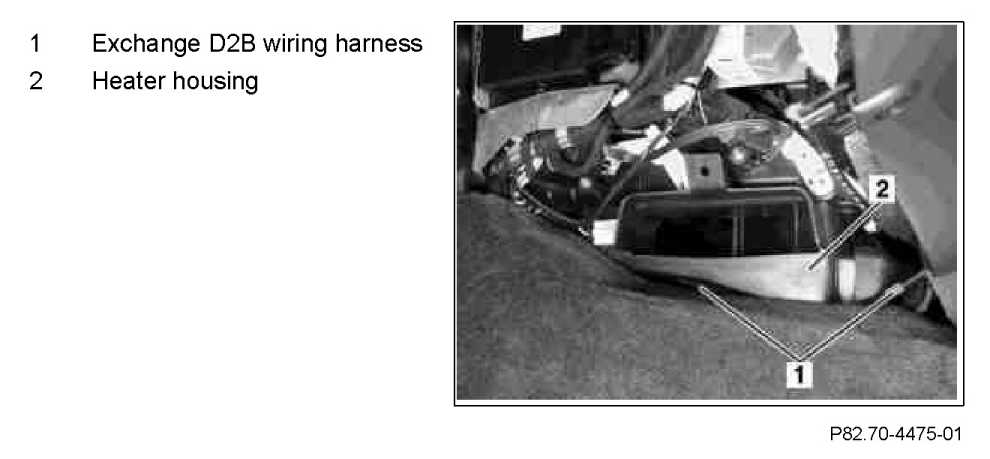

AR82.70-P-0005GJ Fiber Optical Cable (D2B) Replace Complete (After Testing)



Fiber Optical Cable (D2B) Replace Complete (After Testing)
- with CODE (810) Sound system
