AR82.10-P-1825GH Remove/Install Fog Lamp Bulb

Remove/Install Fog Lamp Bulb
- with CODE (U49) Styling Package






Remove/Install

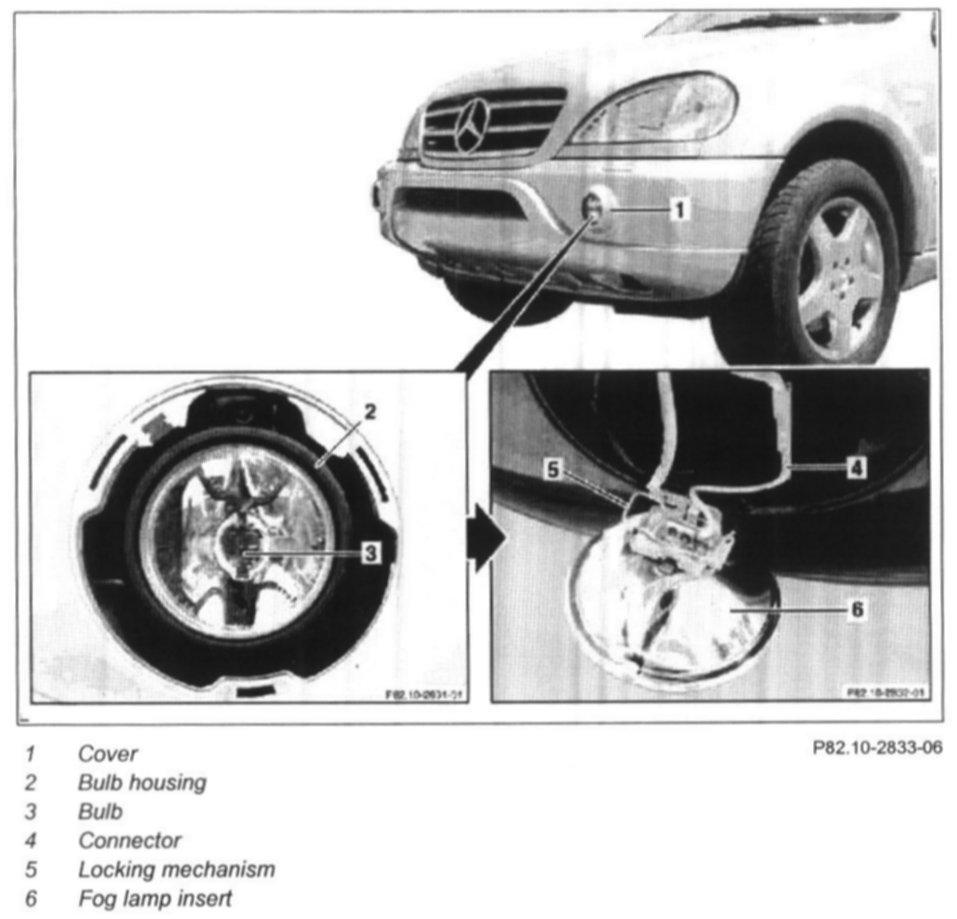

1 Remove cover (1) from bumper

NOTE: Do not break retaining lugs.

2 Remove bulb housing (2)

NOTE:
- To unlock, rotate counterclockwise.
- Installation: Ensure that the locking device has locked securely.

3 Remove fog lamp insert (6) from housing
- Installation wedge: See Special Tools below.

4 Disconnect connector (4)
5 Remove bulb on the back of the fog lamp insert (6)

CAUTION: Do not hold the bulb with bare fingers, as fingerprints bake and leave behind opaqueness on the bulb. Use a soft, lint-free cloth.

NOTE: Lock securely.

6 Install in the reverse order

Special Tools

Longitudinal Wedge P/N # 115 589 03 59 00:
