GF82.20-P-2009GH Switching Interior Lights on/Off Manually, Function

GF82.20-P-2009GH Switching Interior Lights On/Off Manually, Function

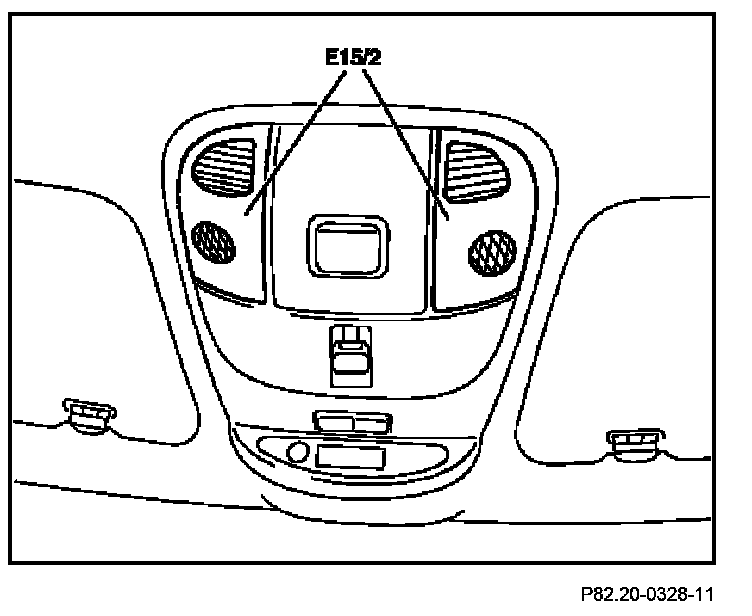

The front dome lamp (with shut-off delay and reading lamp) (E15/2), the right rear dome lamp (E15/9) and the left rear dome lamp (E15/8) can be switched manually to continuous operation. Each lamp is equipped with a switch which is actuated by pressing the lamp glass. The actuated switch interrupts the automatic lamp actuation by the all activity module (AAM, N10) and simultaneously switches the lamp connected to c. 30 to ground. Continuous operation can only be terminated by pressing the switch again. It is not possible to switch off the automatic lamp actuation.

The left front and right front footwell lamps (E17/16 and E17/15) are switched on together with the front dome lamp (E15/2). The rear interior lamp (E15/3) can also be switched manually to continuous operation. Automatic lamp actuation is actuated directly when the tailgate is opened and not by the all-activity module. It is not possible to switch off automatic lamp actuation manually.
