Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Diagrams >> Grounds >> By Ground Location >> GF00.19-U-2000-04E - Interior Compartment, Left

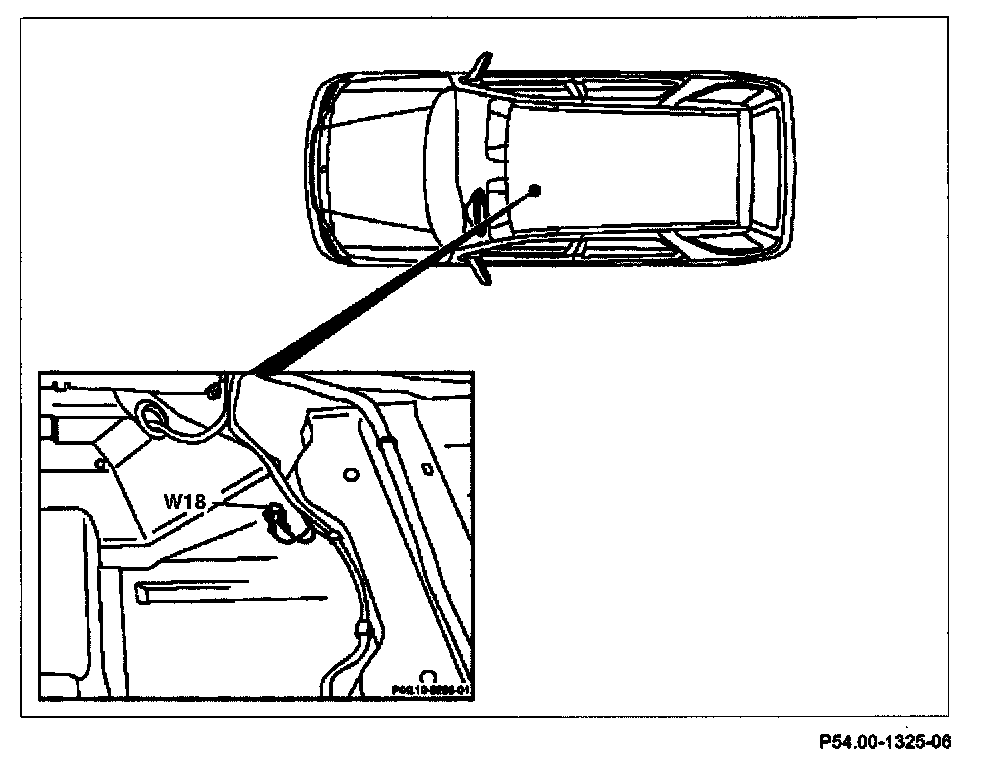

GF00.19-U-2000-04E - Interior Compartment, Left




Arrangement:

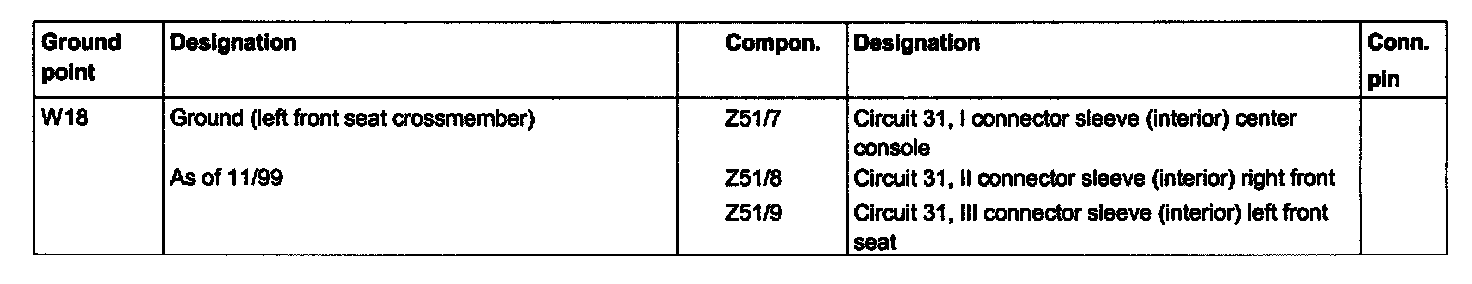

Assignment:
