Fuse and Relay Box (F1) PE54.15-U-2000GN, Part 1

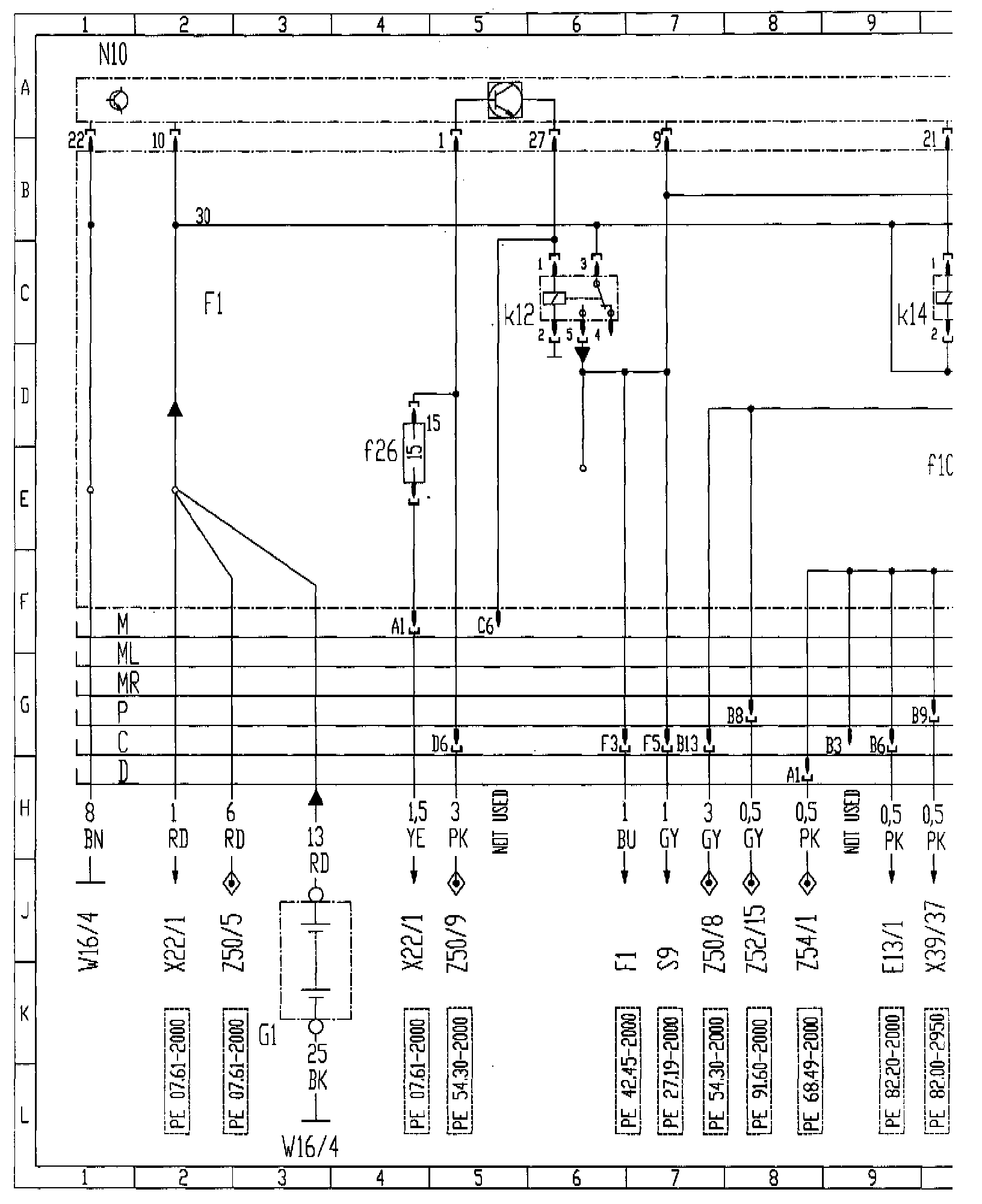

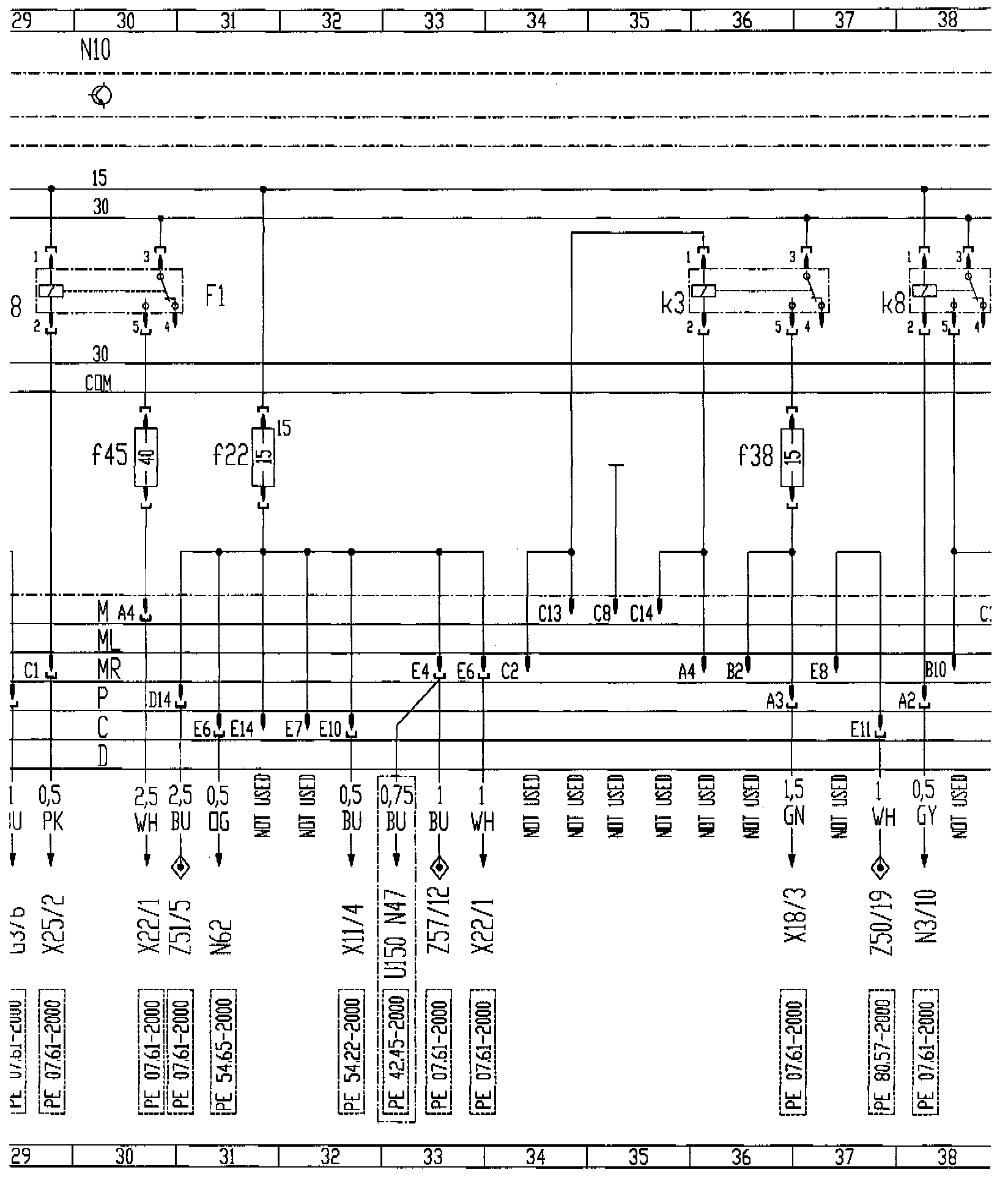

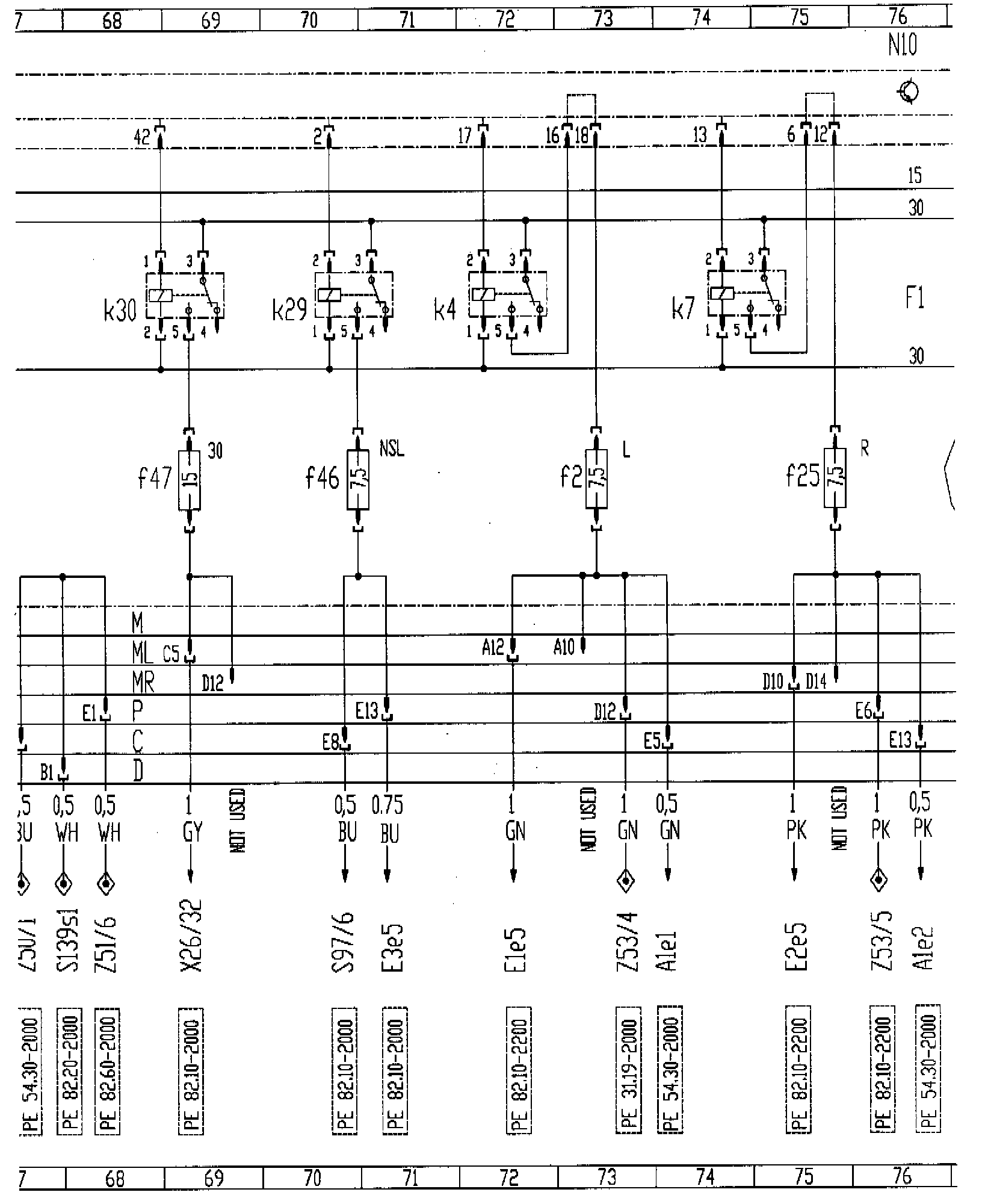

Fuse And Relay Box (F1):

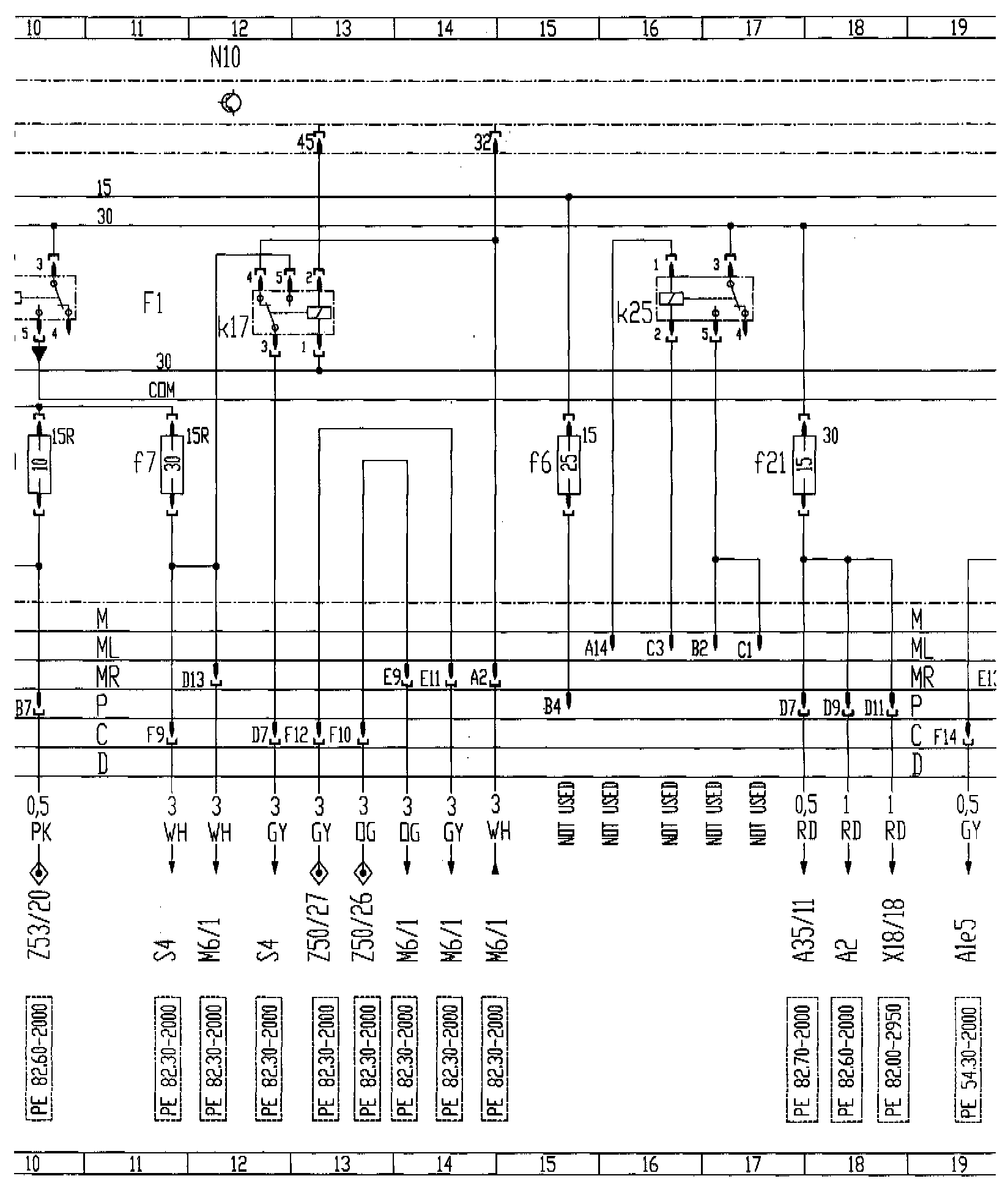

Fuse And Relay Box (F1):

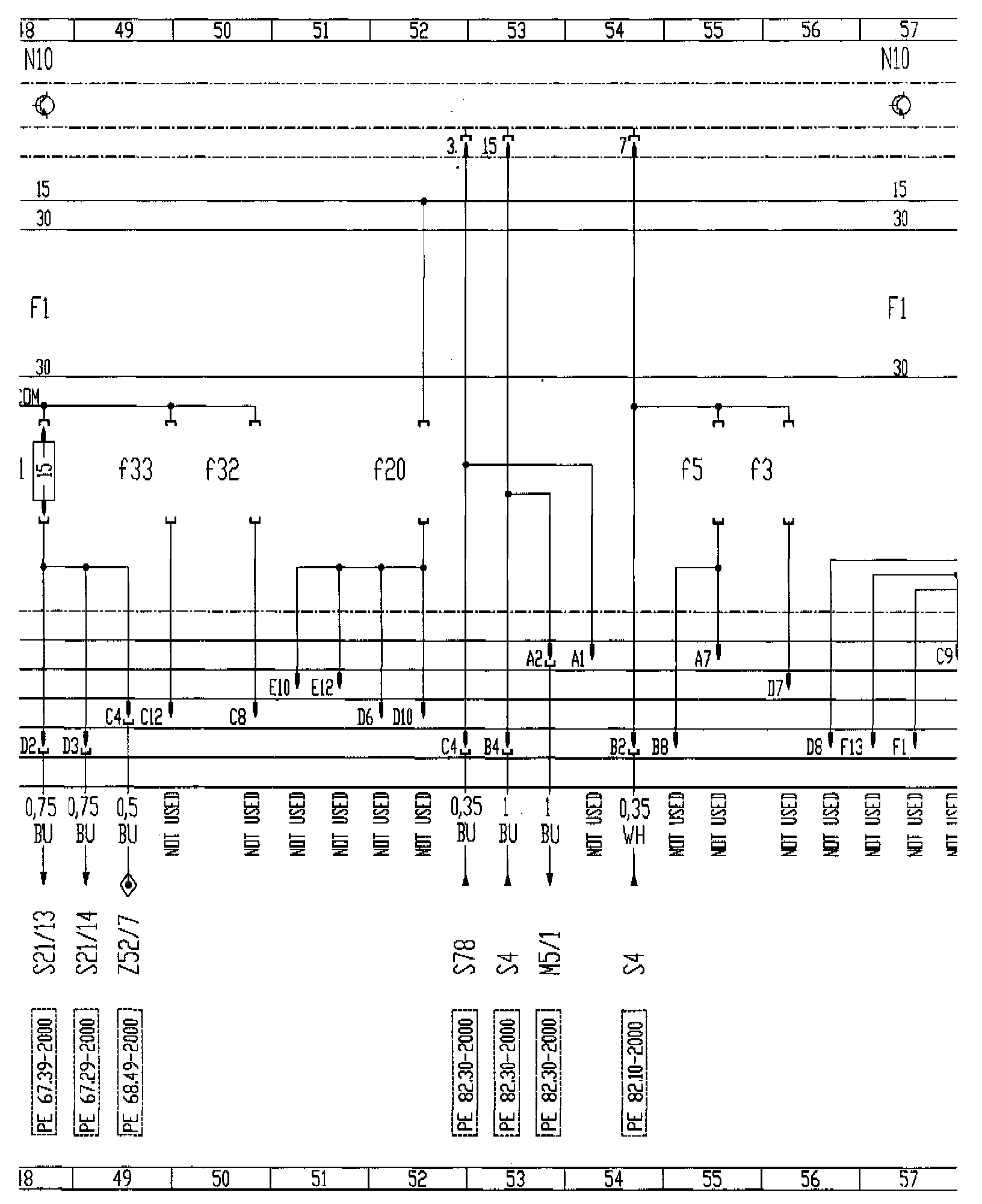

Fuse And Relay Box (F1):

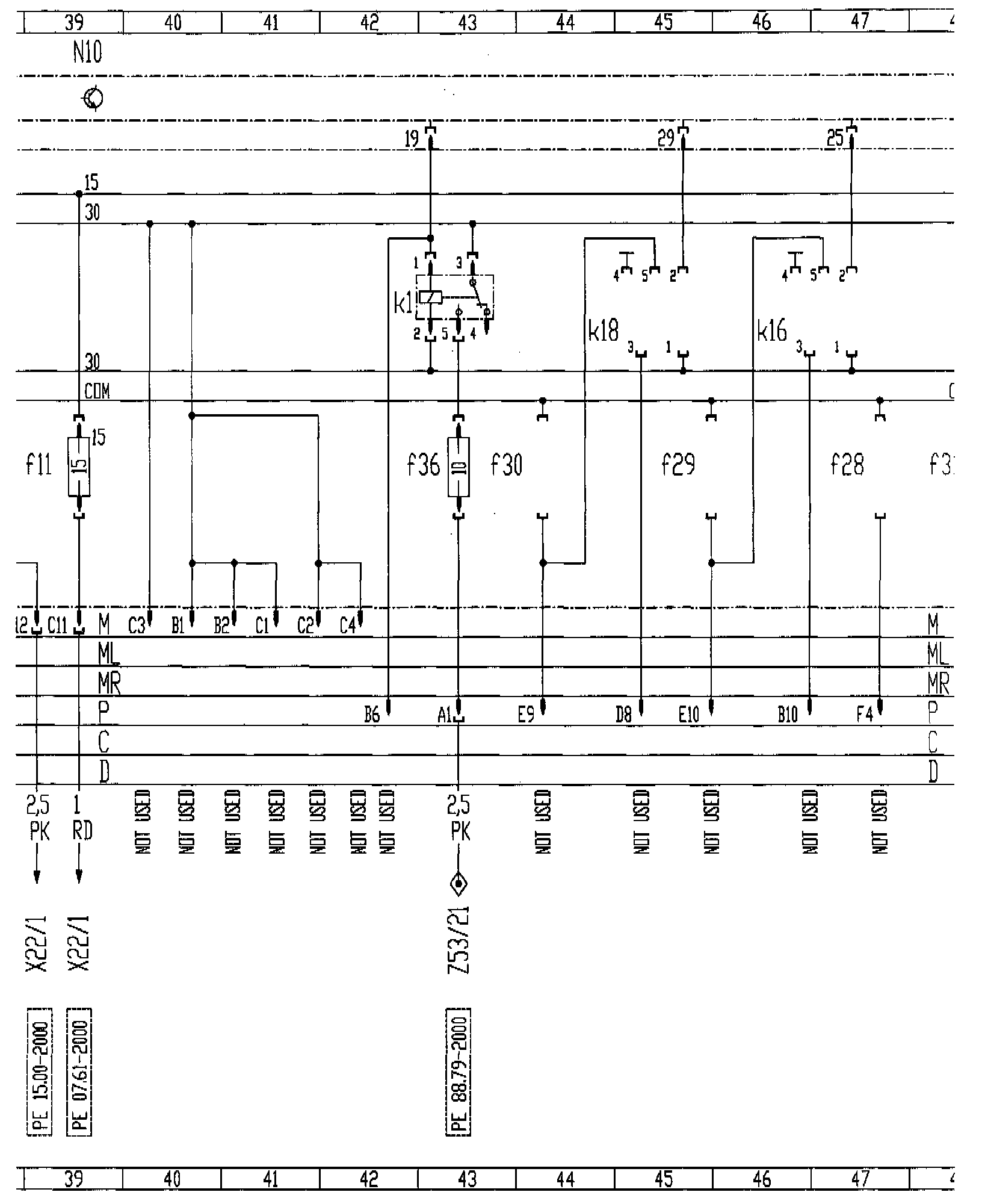

Fuse And Relay Box (F1):

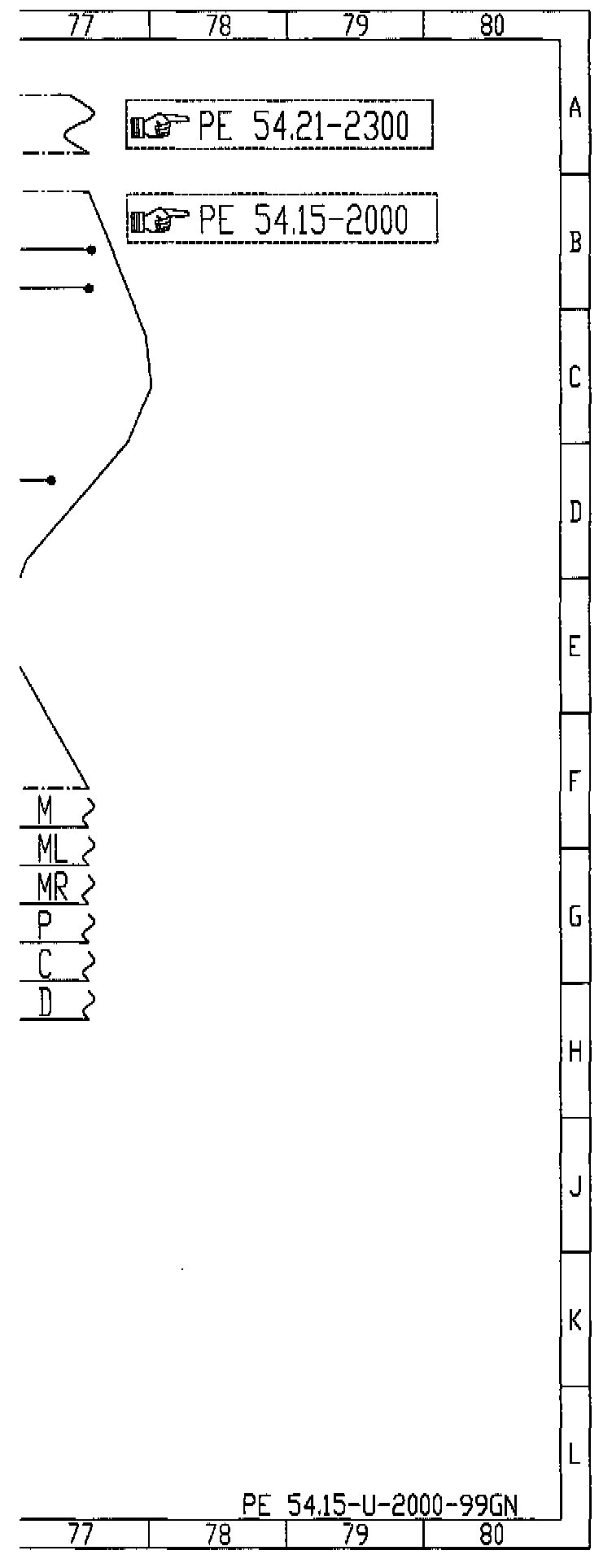

Fuse And Relay Box (F1):

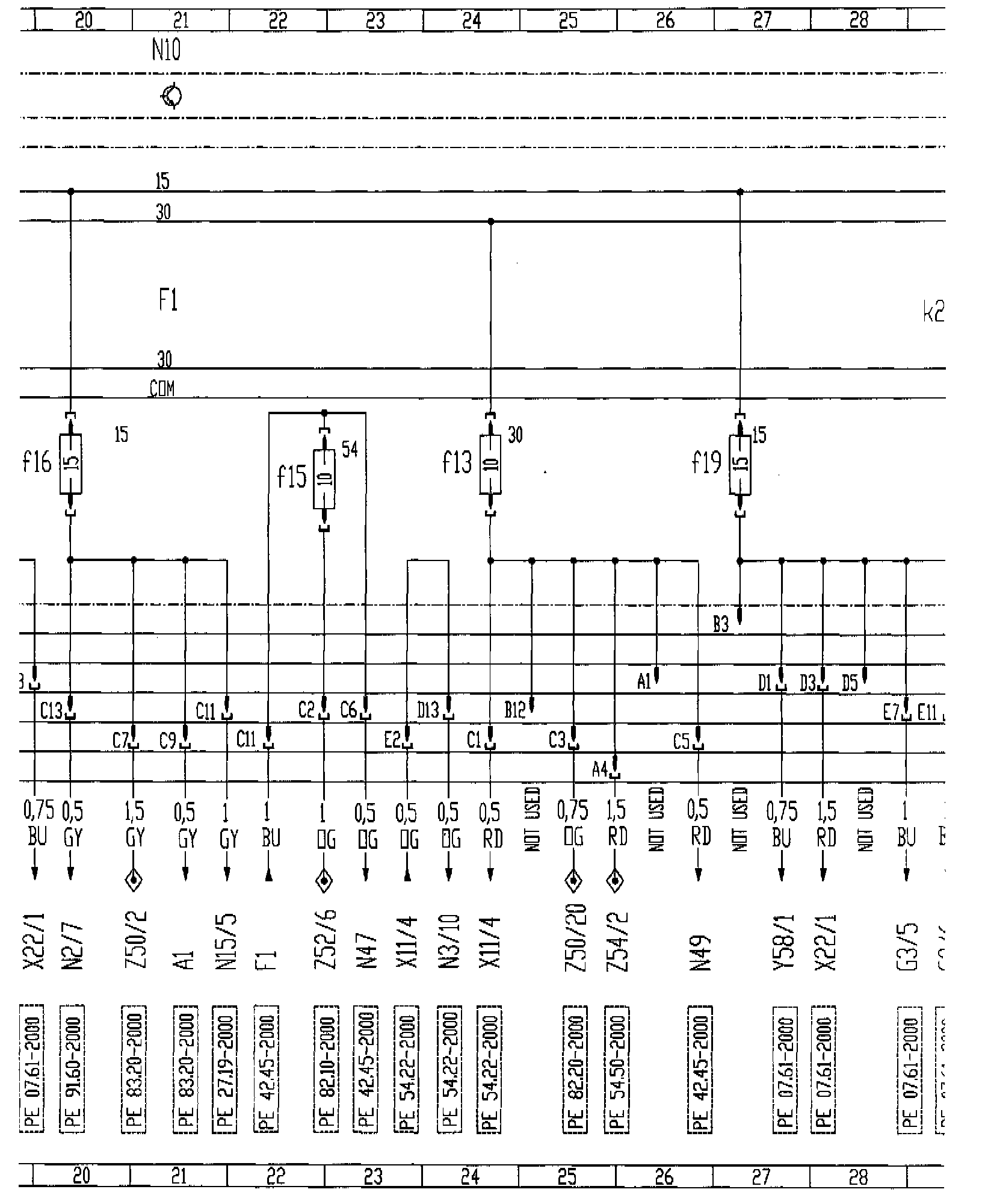

Fuse And Relay Box (F1):

Fuse And Relay Box (F1):

Fuse And Relay Box (F1):

Fuse And Relay Box (F1):

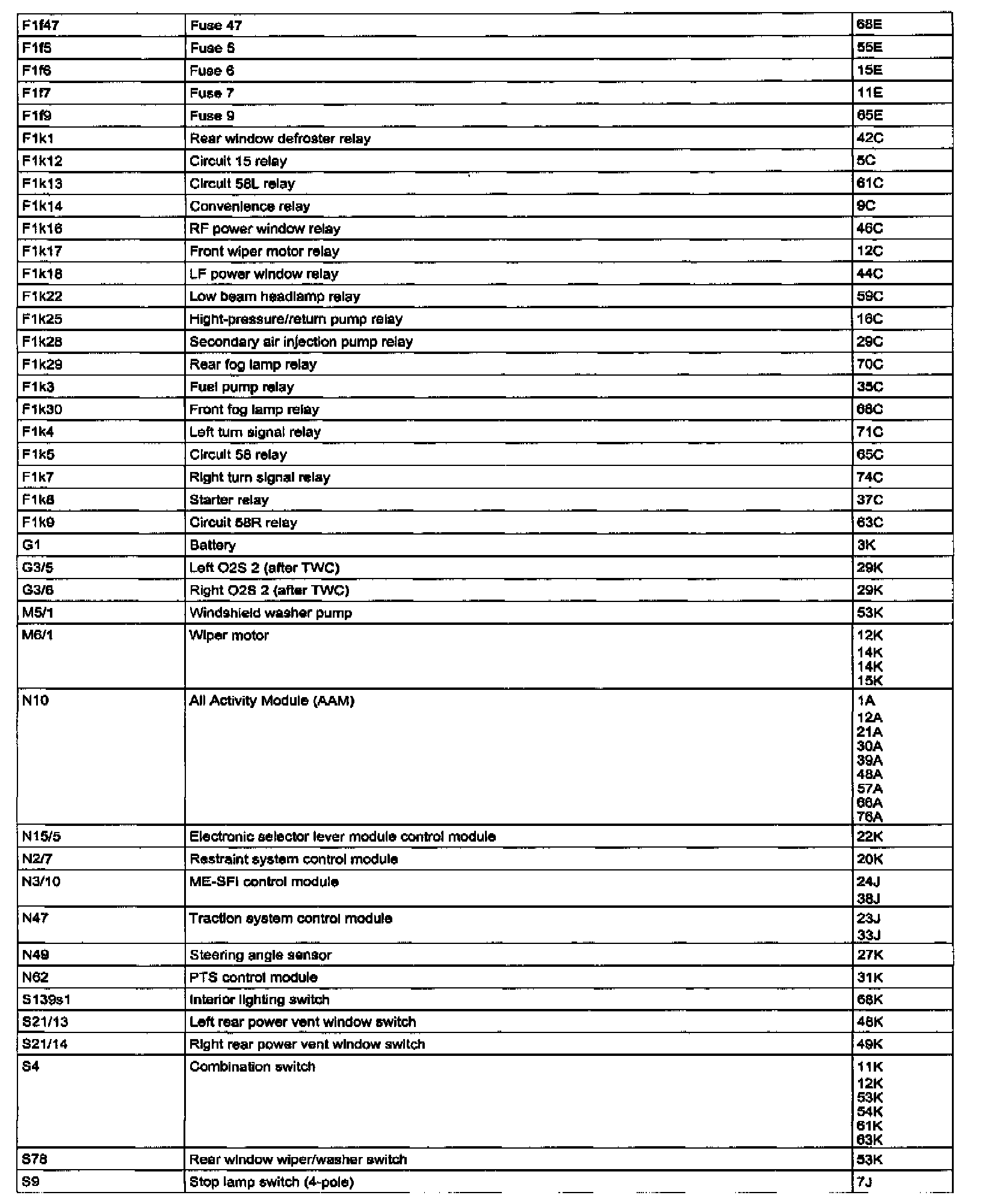

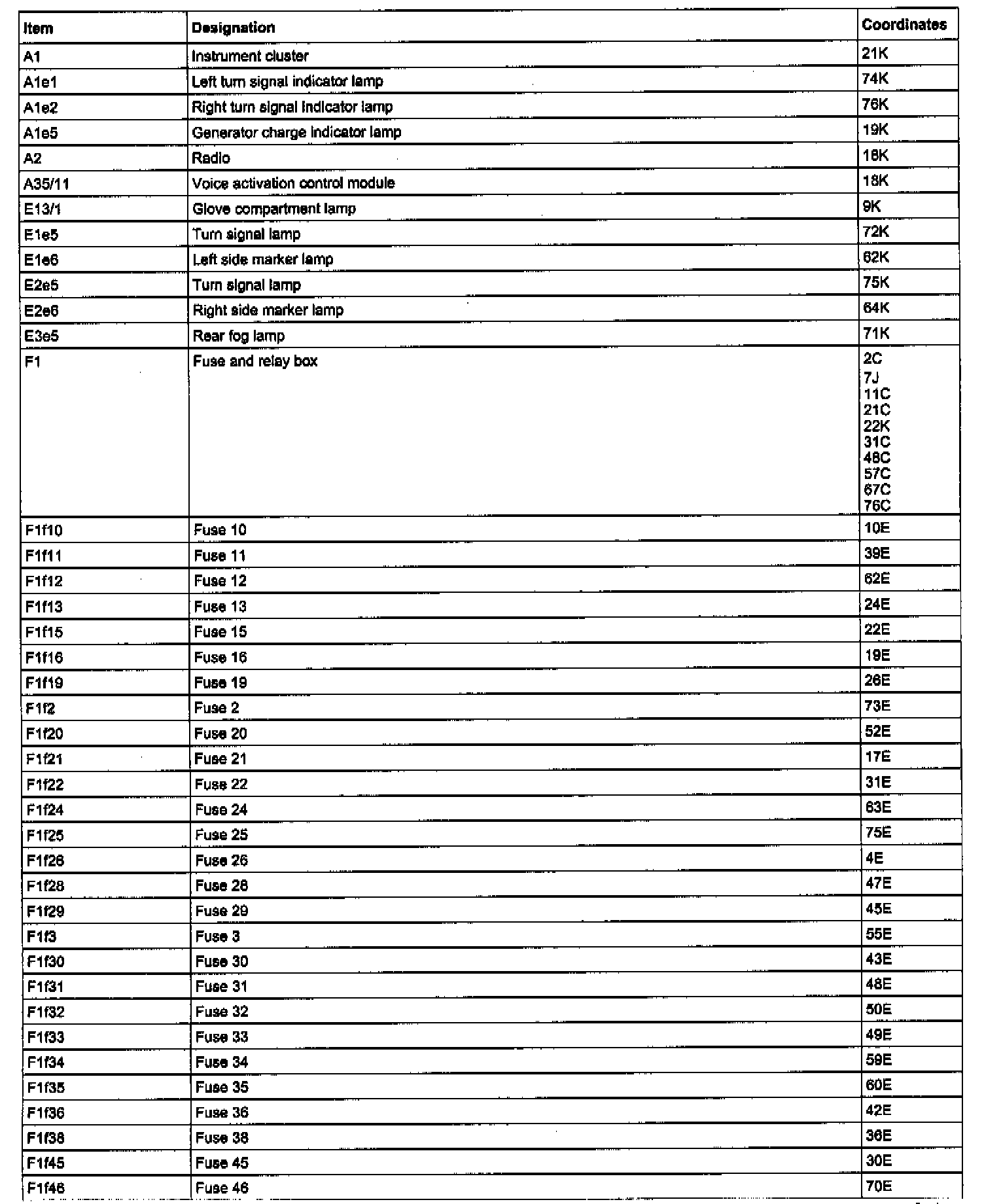

Legend For Fuse And Relay Box (F1):

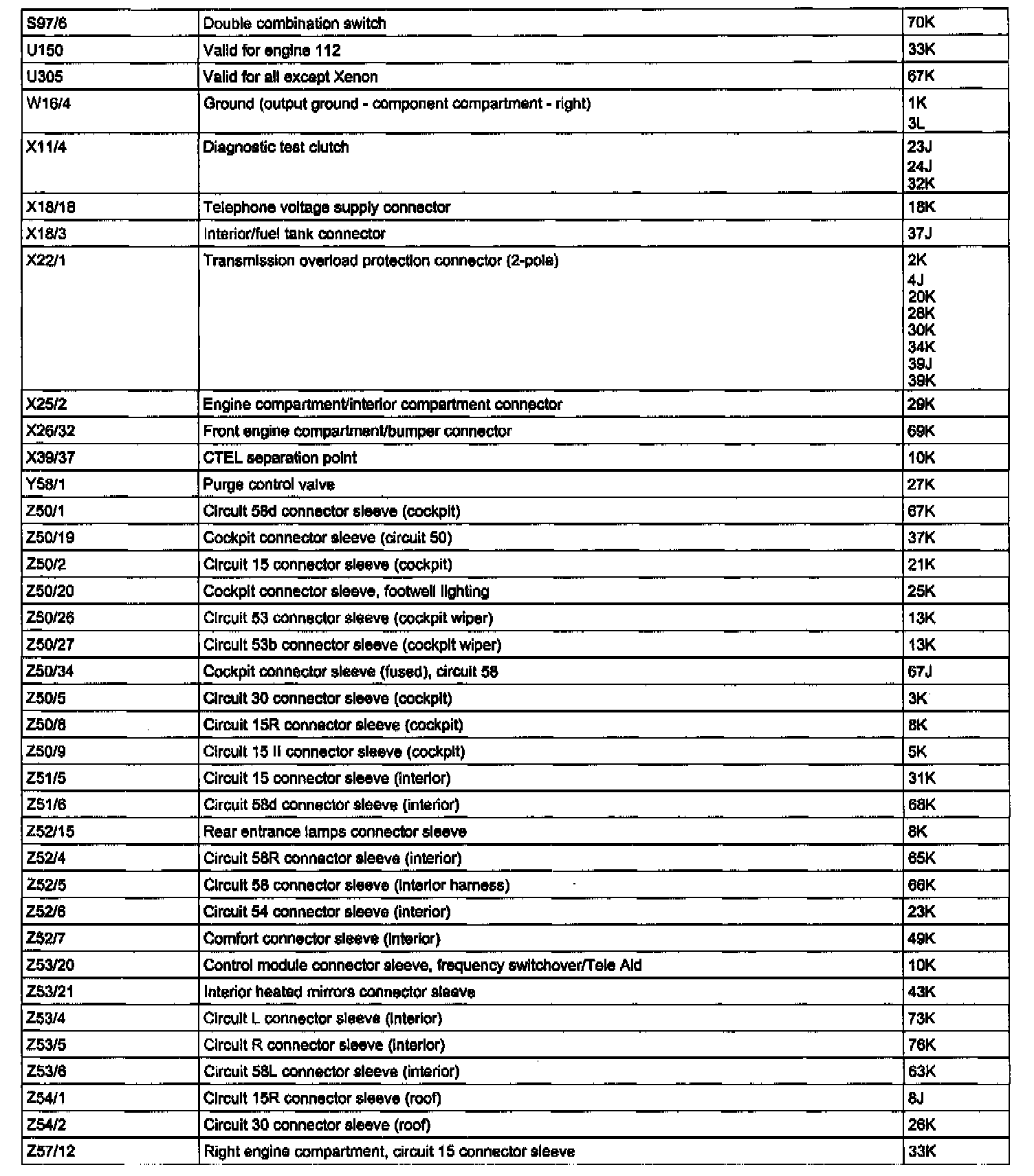

Legend For Fuse And Relay Box (F1):

Legend For Fuse And Relay Box (F1):
