Sockets In Interior PE82.00-U-2500A
Sockets In Interior PE82.00-U-2500A
Sockets In Interior PE82.00-U-2500A
Diagram, Part 1:

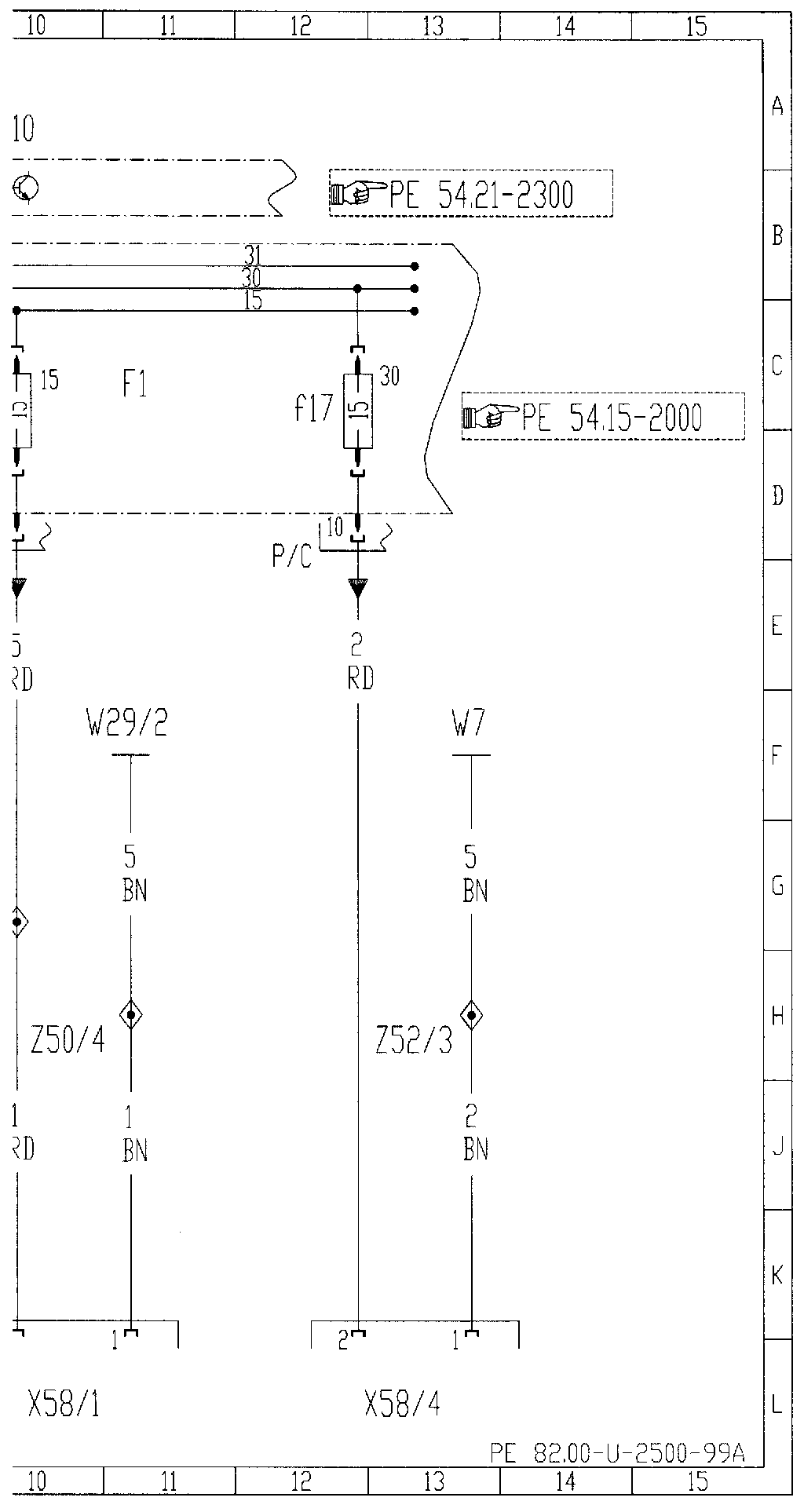

Diagram, Part 2:

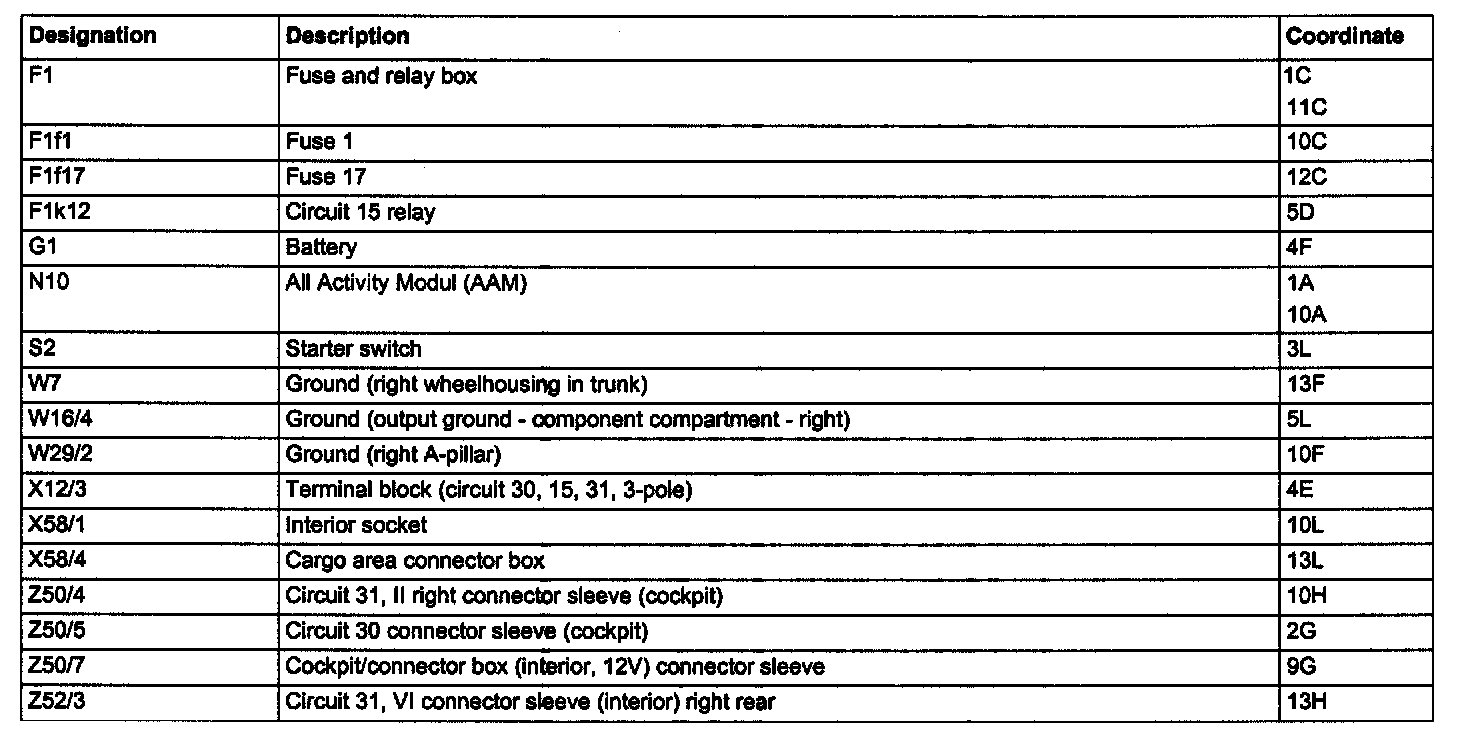

Component Description/Coordinates, F1 - Z52/3:
