Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Auxiliary Power Outlet >> Sockets In Interior PE82.00-U-2050GJ

Sockets In Interior PE82.00-U-2050GJ



Sockets In Interior PE82.00-U-2050GJ

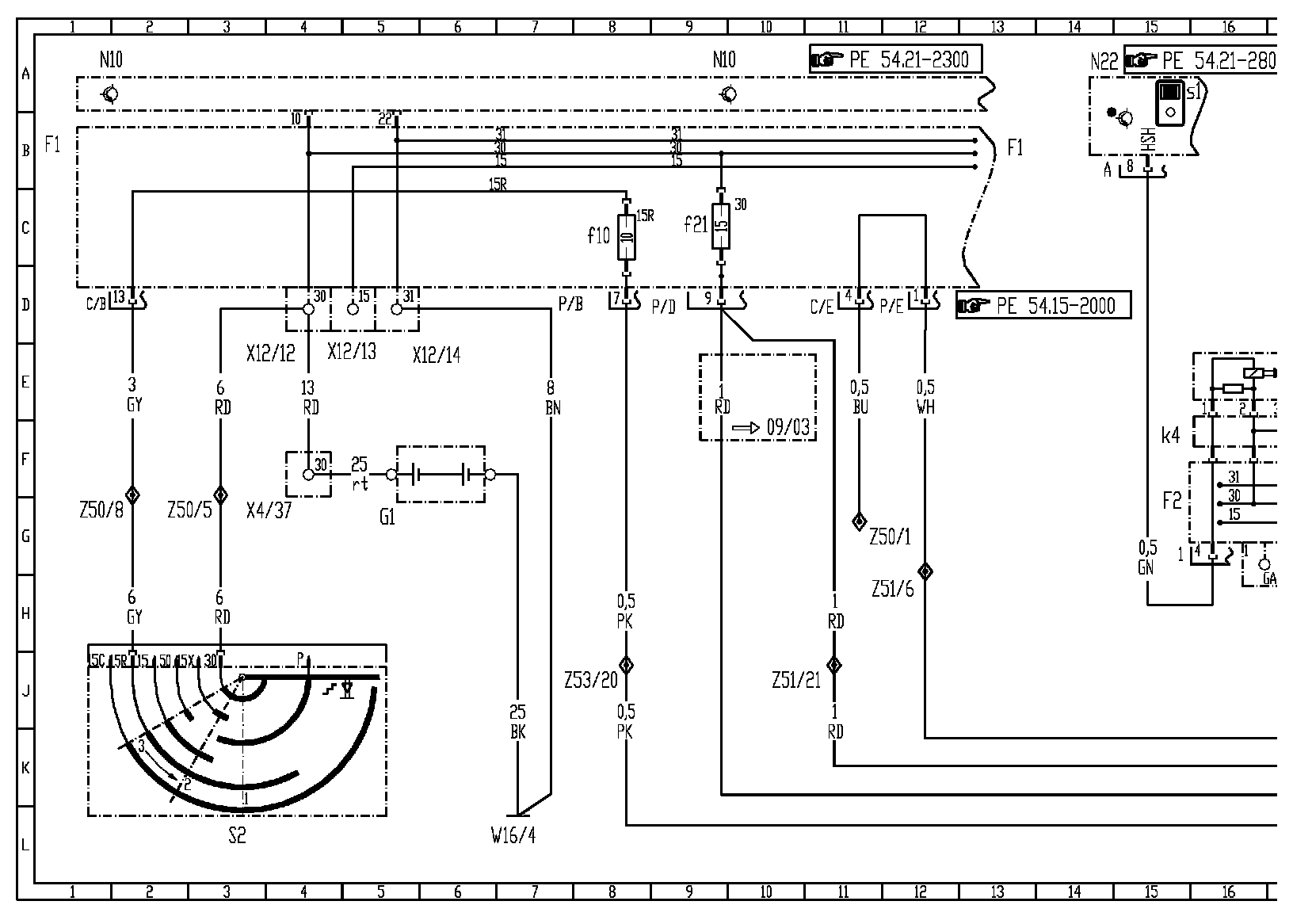

Wiring Diagram, Part 1:





Wiring Diagram, Part 2:





Wiring Diagram, Part 3:





Wiring Diagram, Part 4:





Component Description/Coordinates, A2/5 to S2:





Component Description/Coordinates, U190 to Z53/20:
