System Diagram

Airbag PE91.60-U-2000GK
- with CODE (291b) Airbag for driver and front passenger
- with CODE (292) Side airbag at front left and right

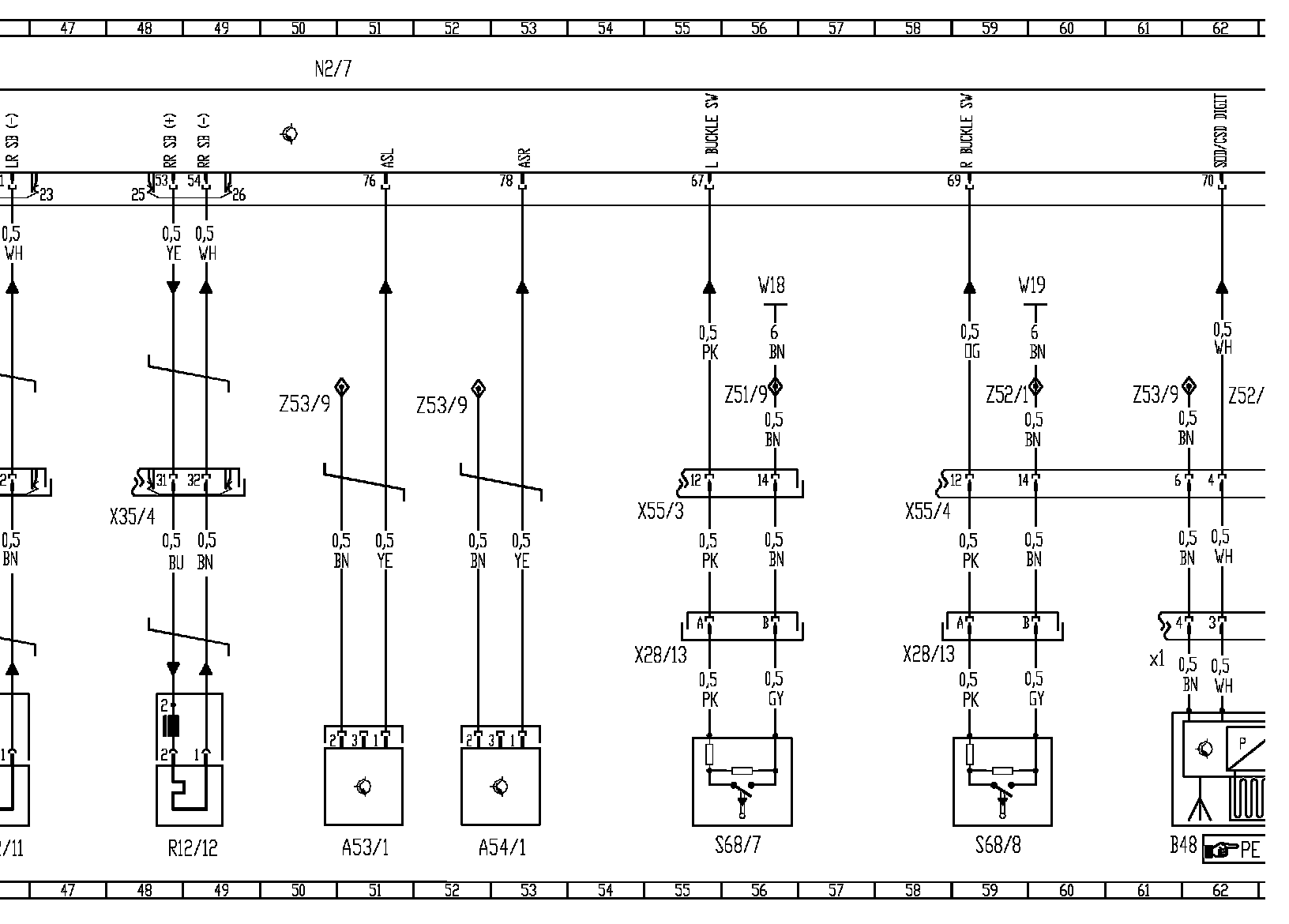

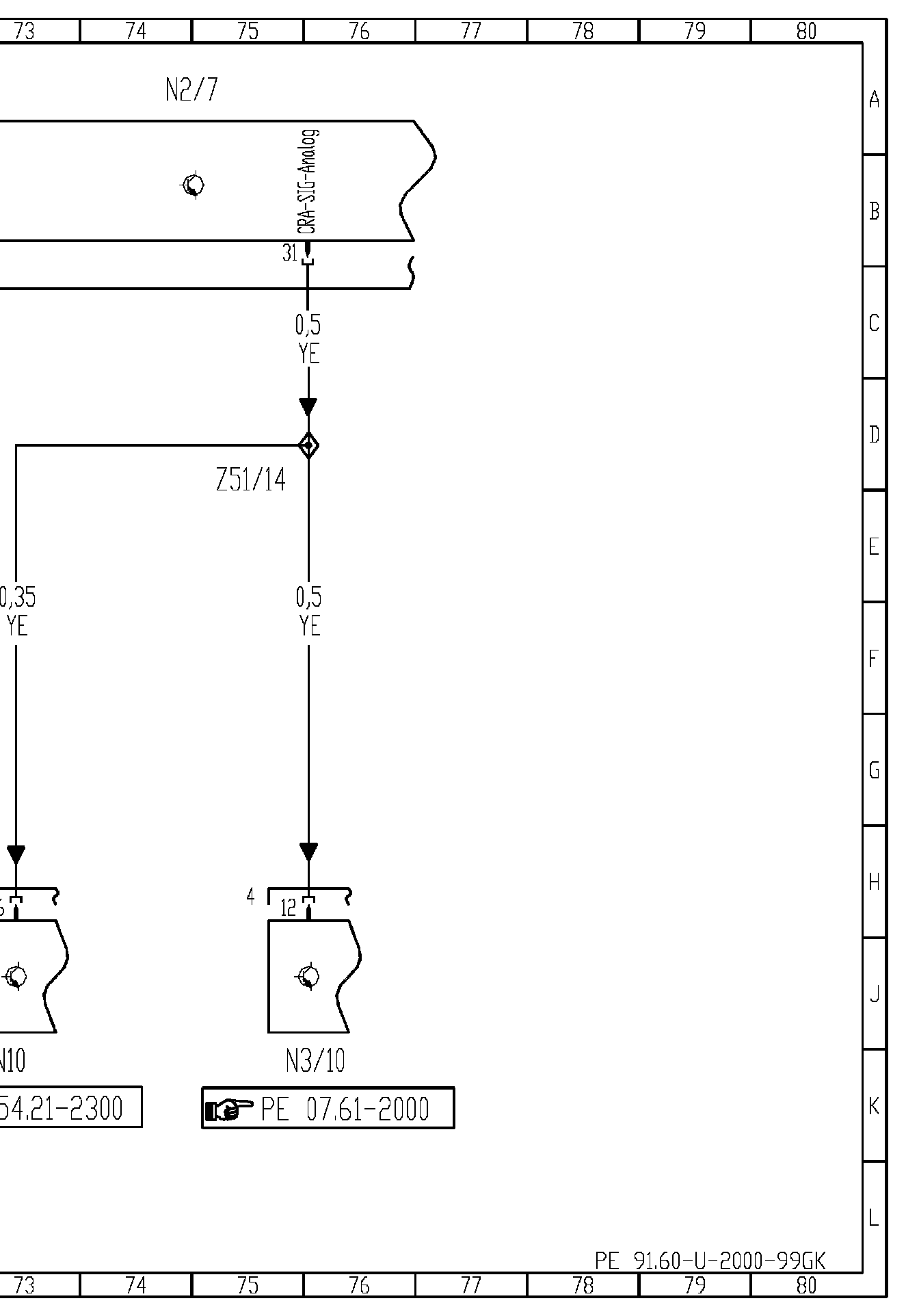

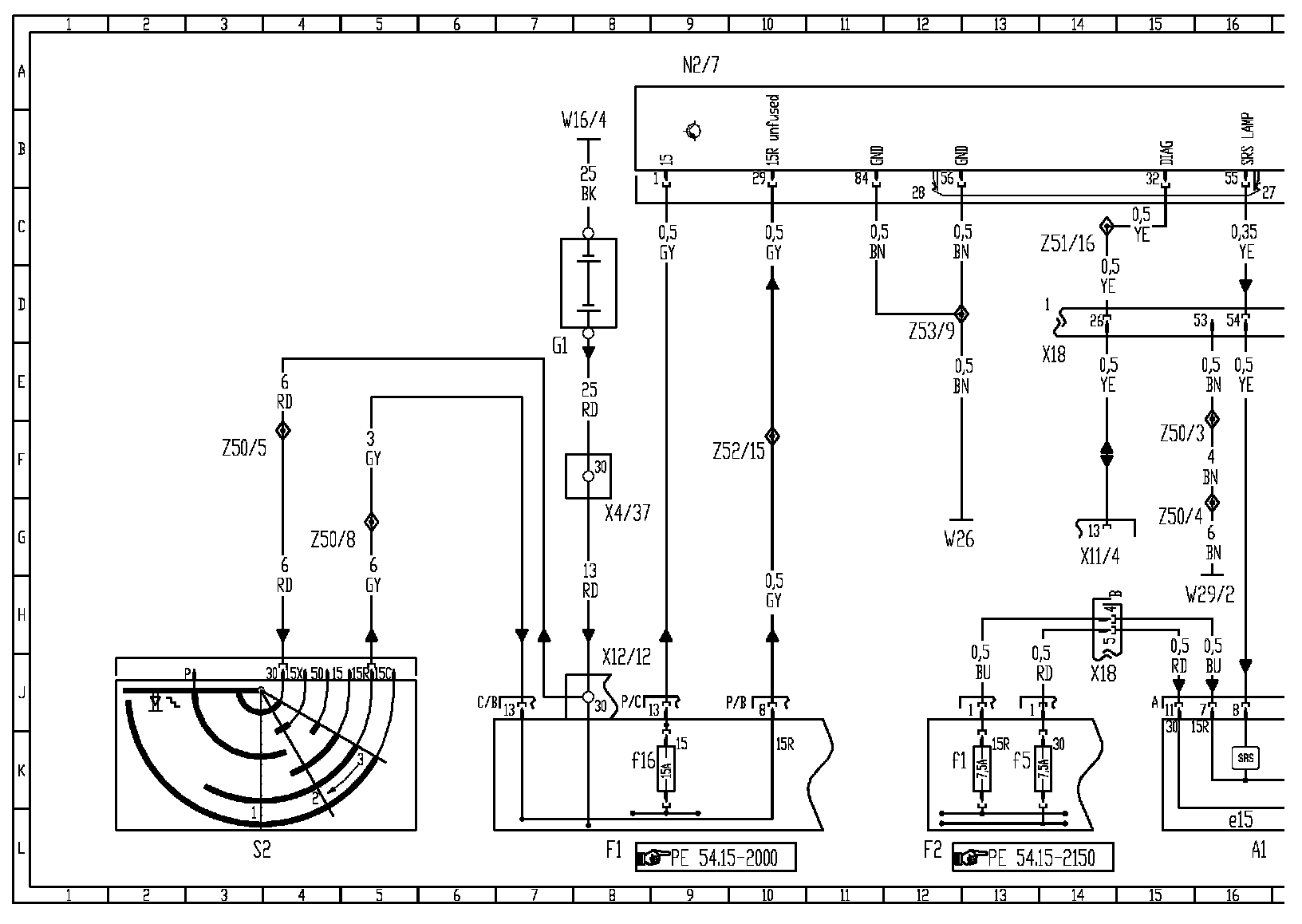

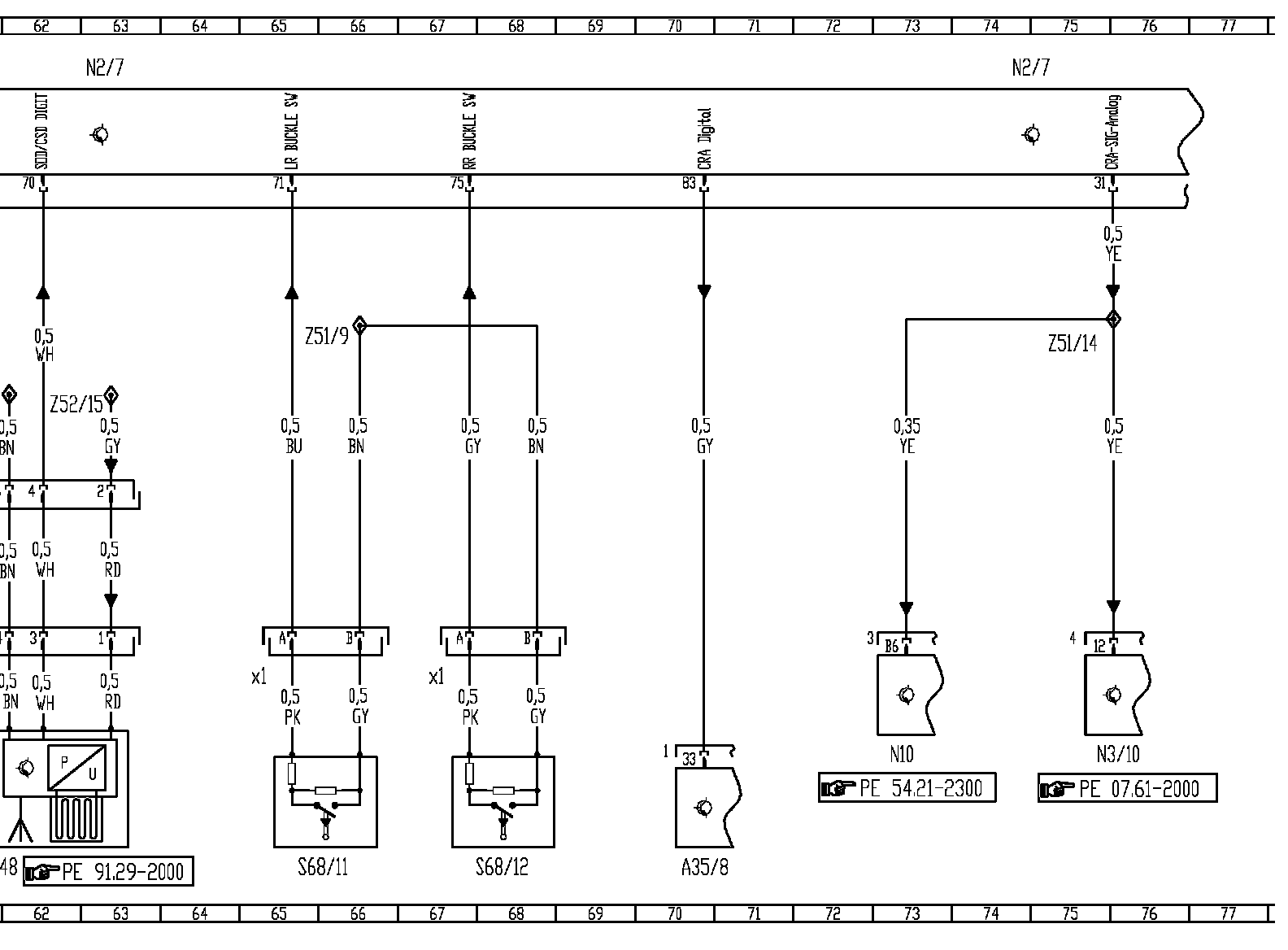

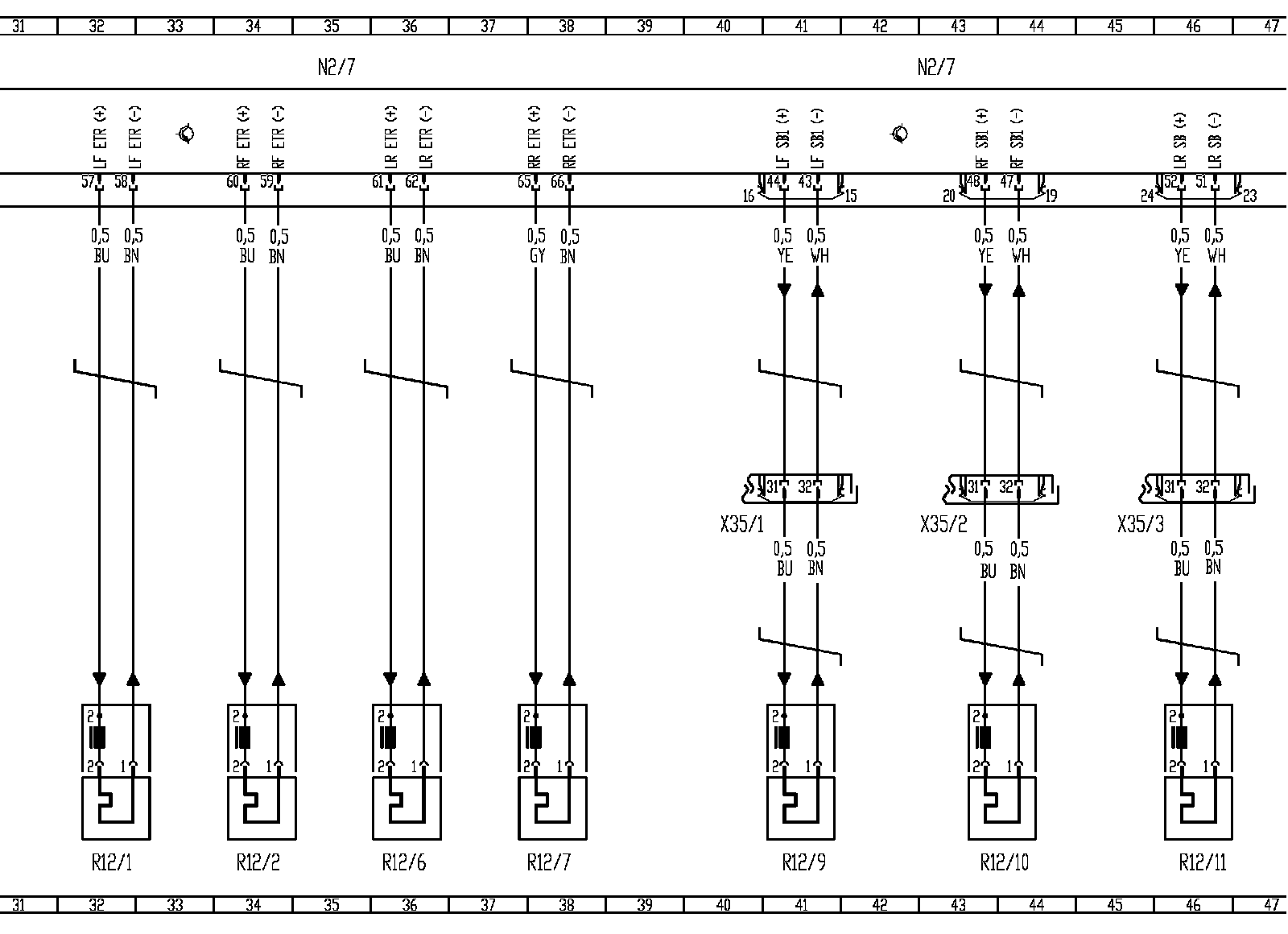

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

Wiring Diagram, Part 5:

Wiring Diagram, Part 6:

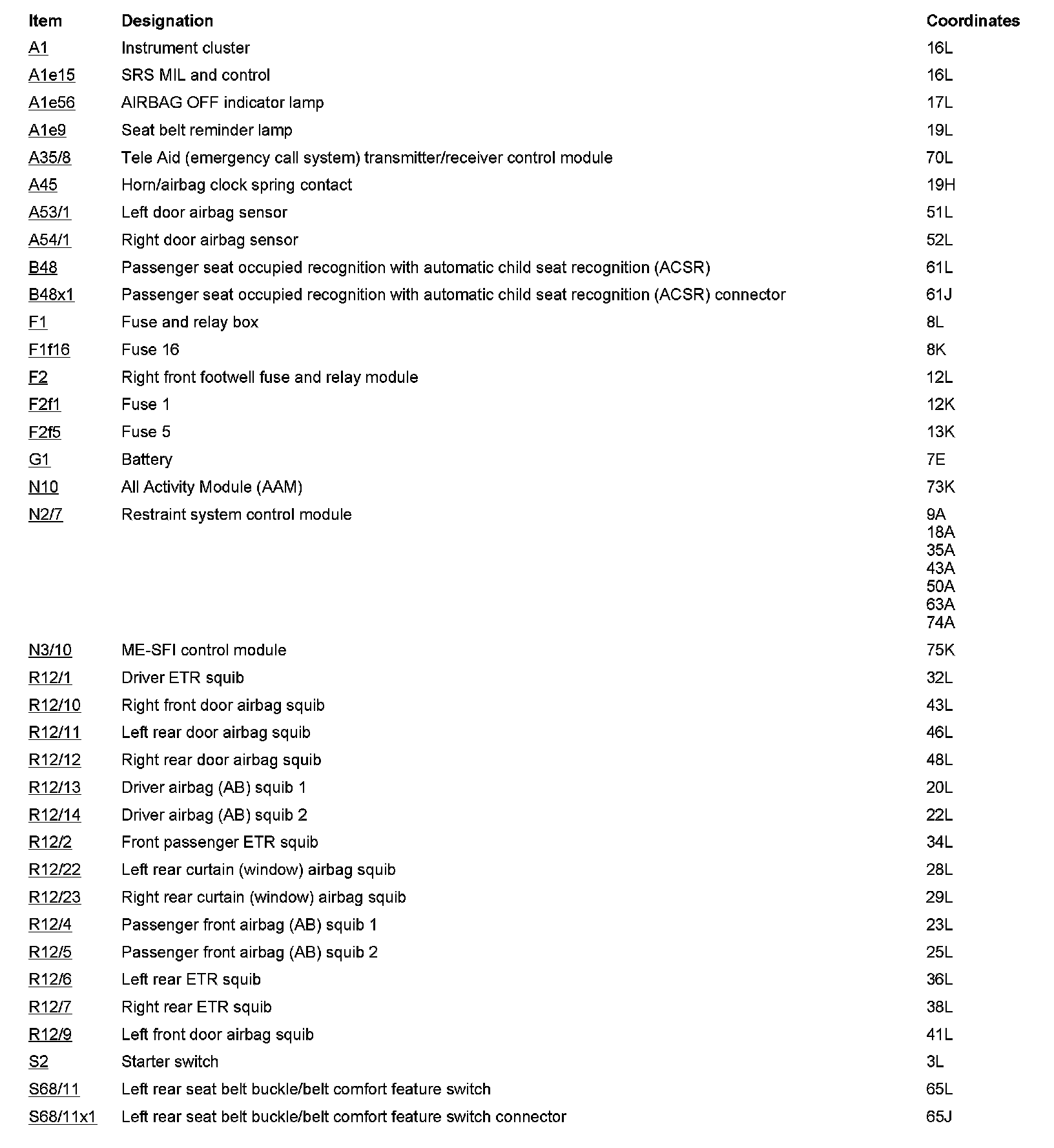

Component Description/Coordinates, A1 to S68/11x1:

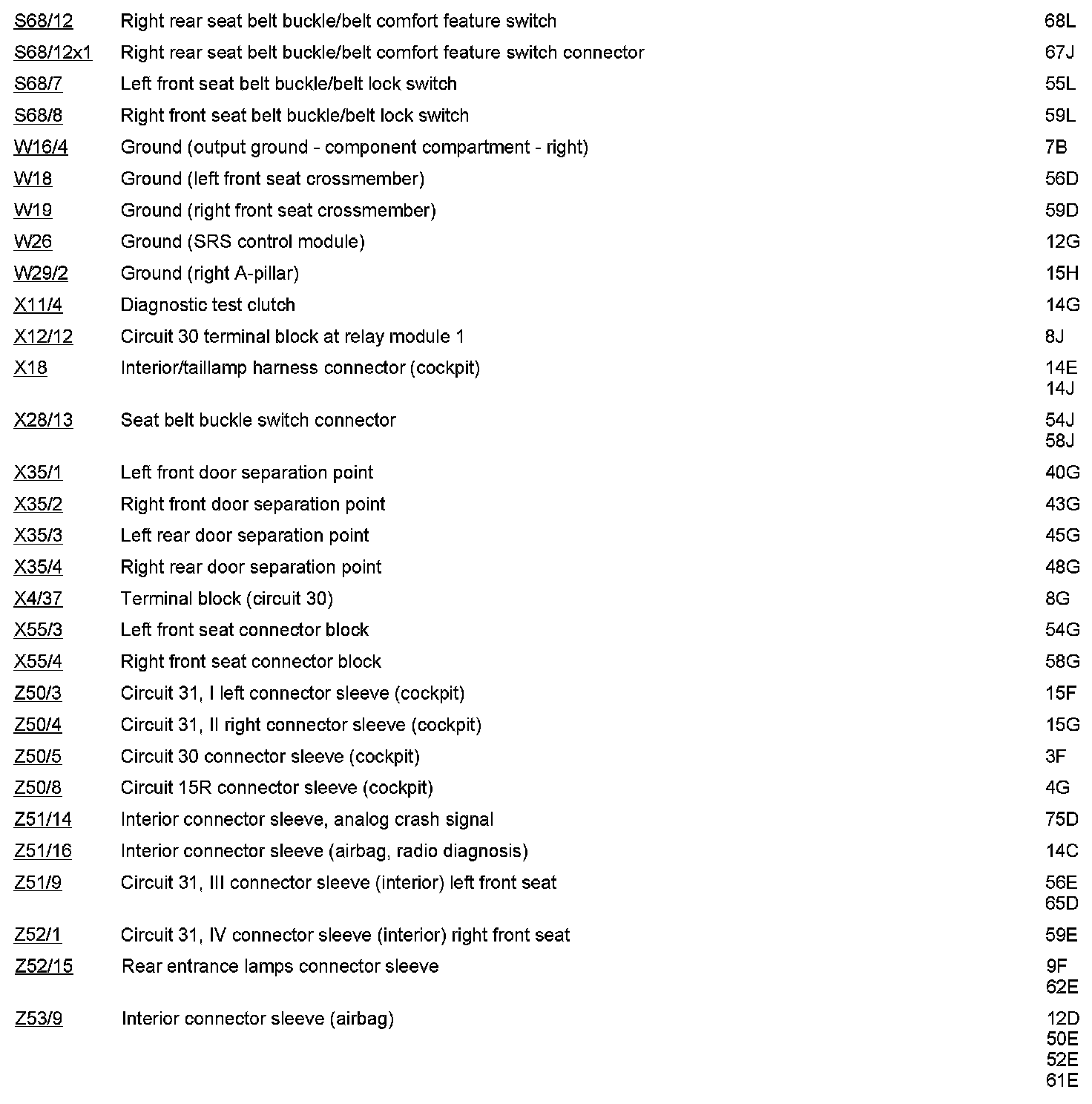

Component Description/Coordinates, S68/12 to Z53/9:
