Radio (RD) Control Module PE82.60-U-2000GP

Radio (RD) Control Module PE82.60-U-2000GP
- with CODE (522) Radio Modular Control System (MCS)

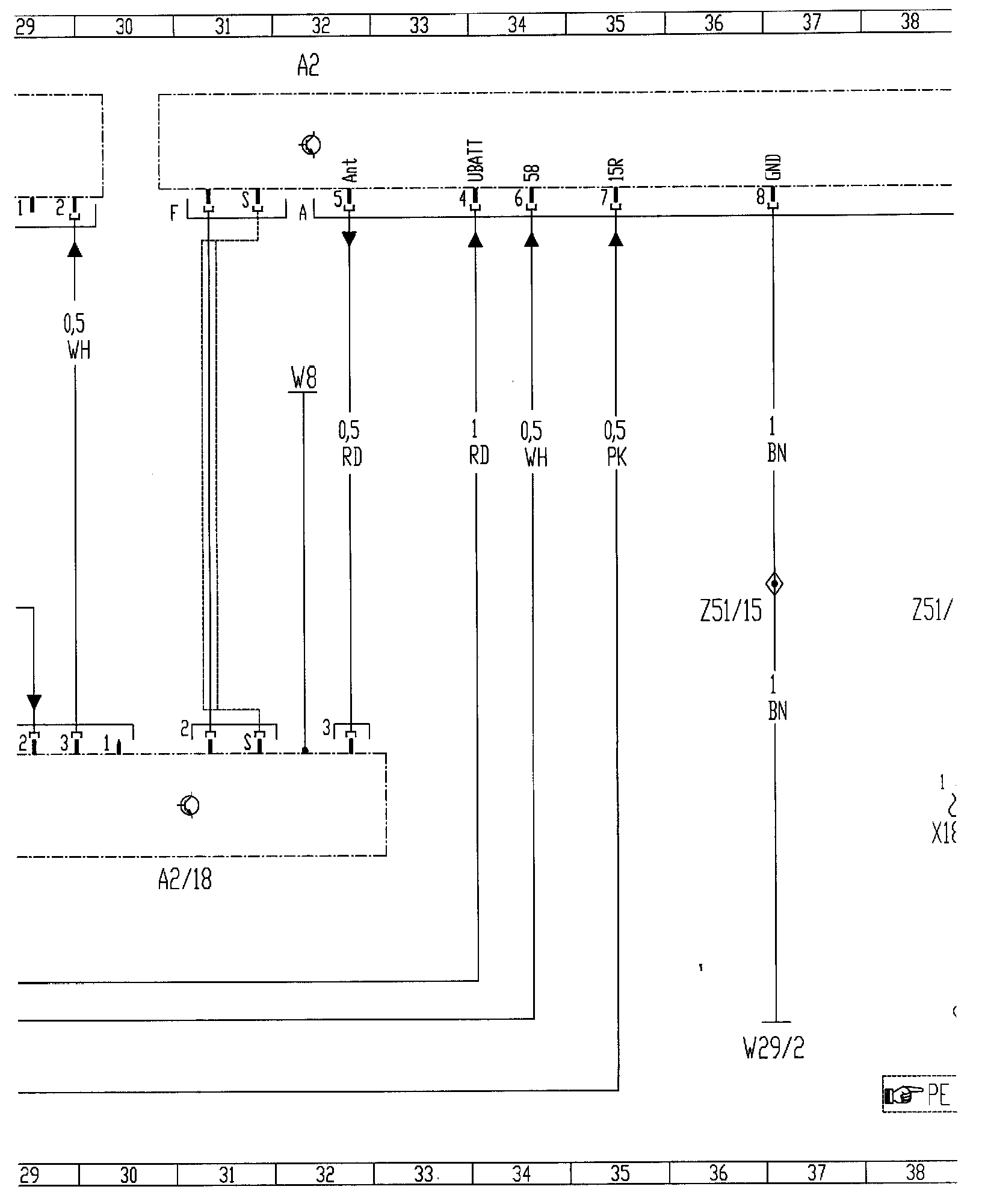

Radio:

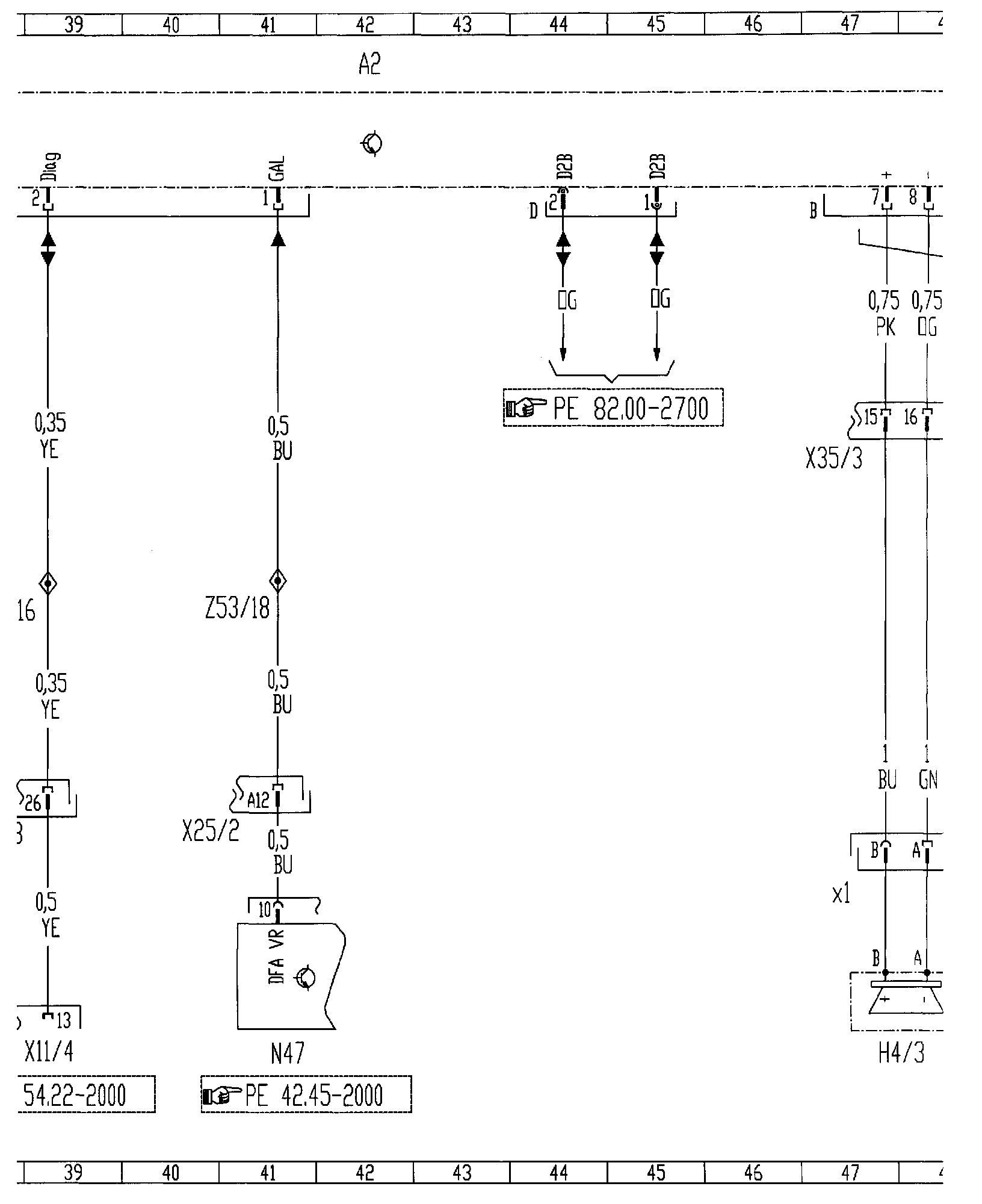

Radio:

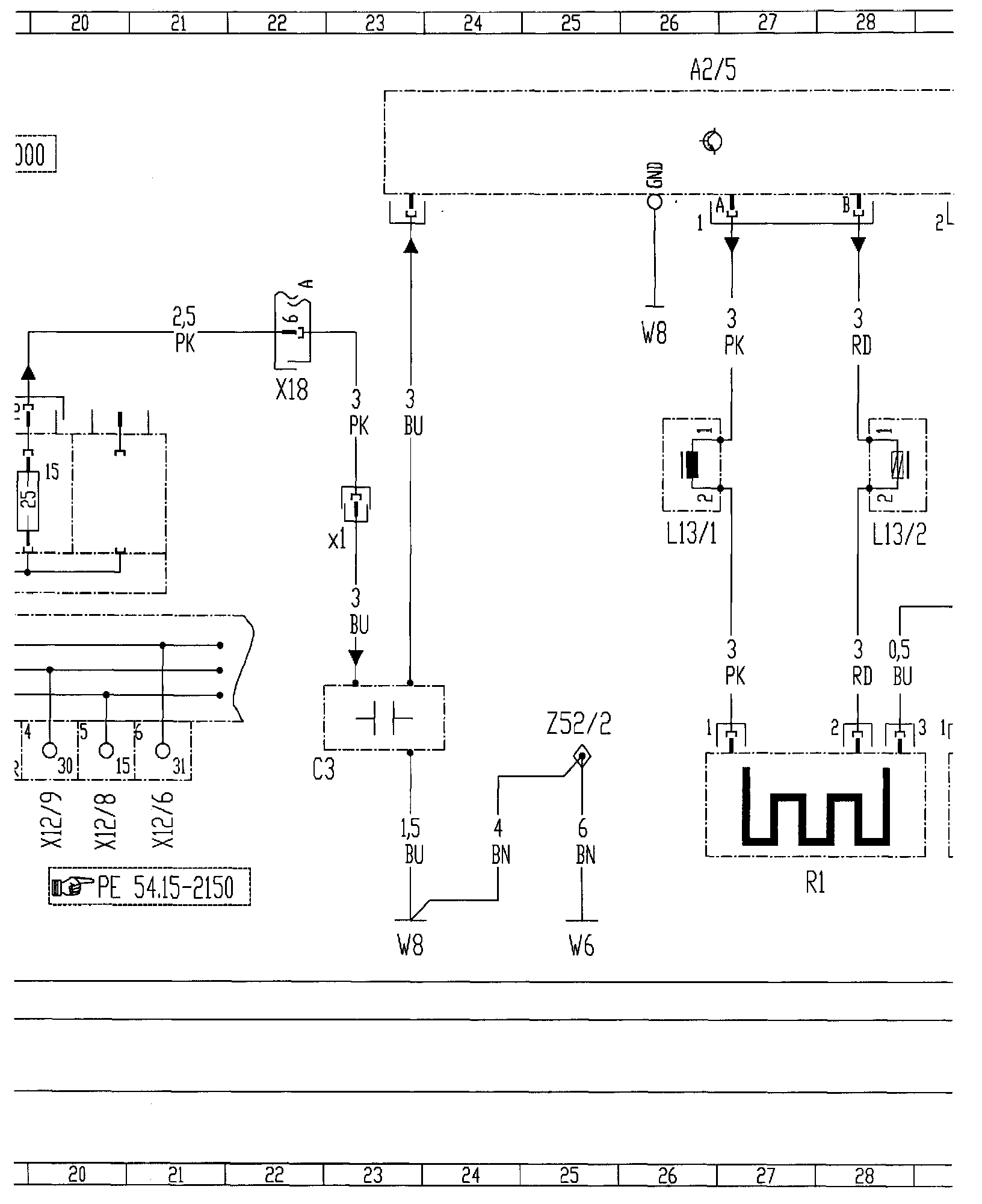

Radio:

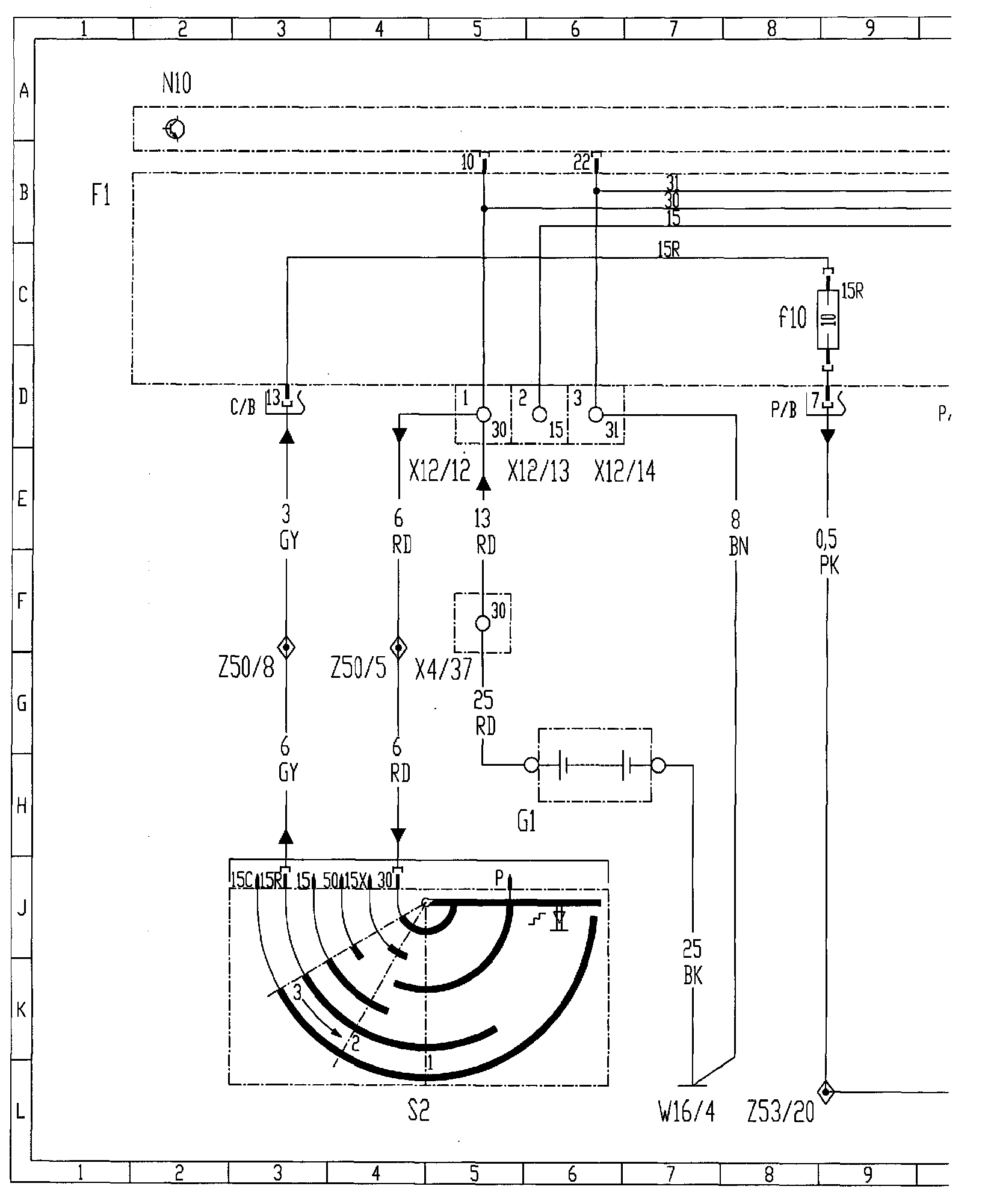

Radio:

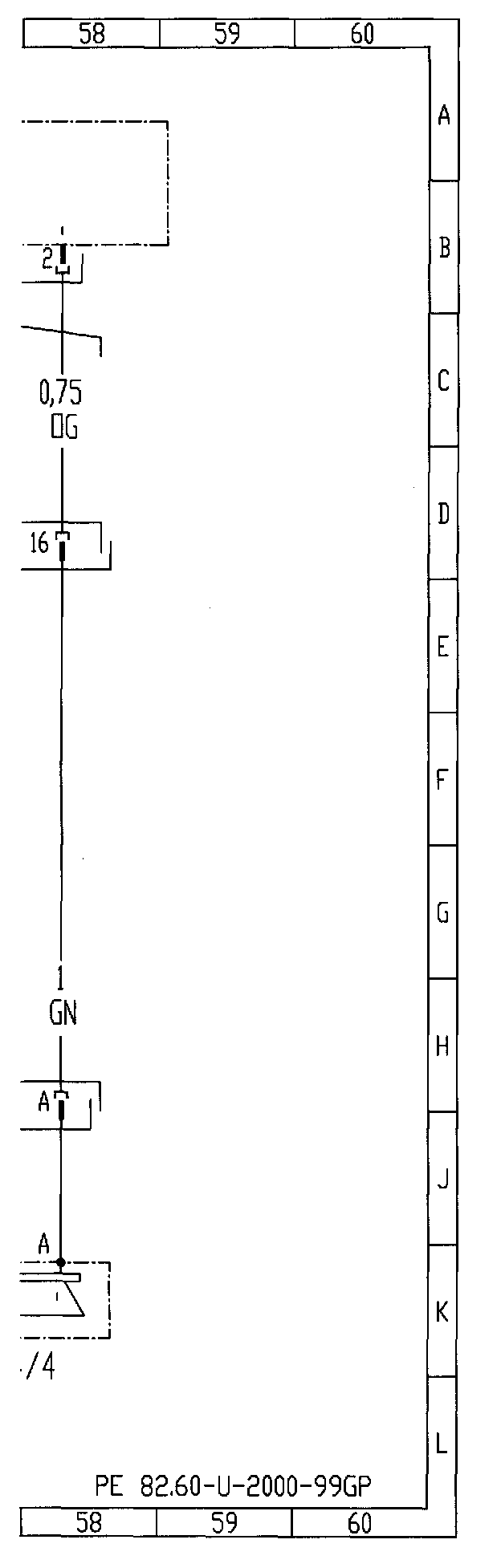

Radio:






Radio:






Radio:

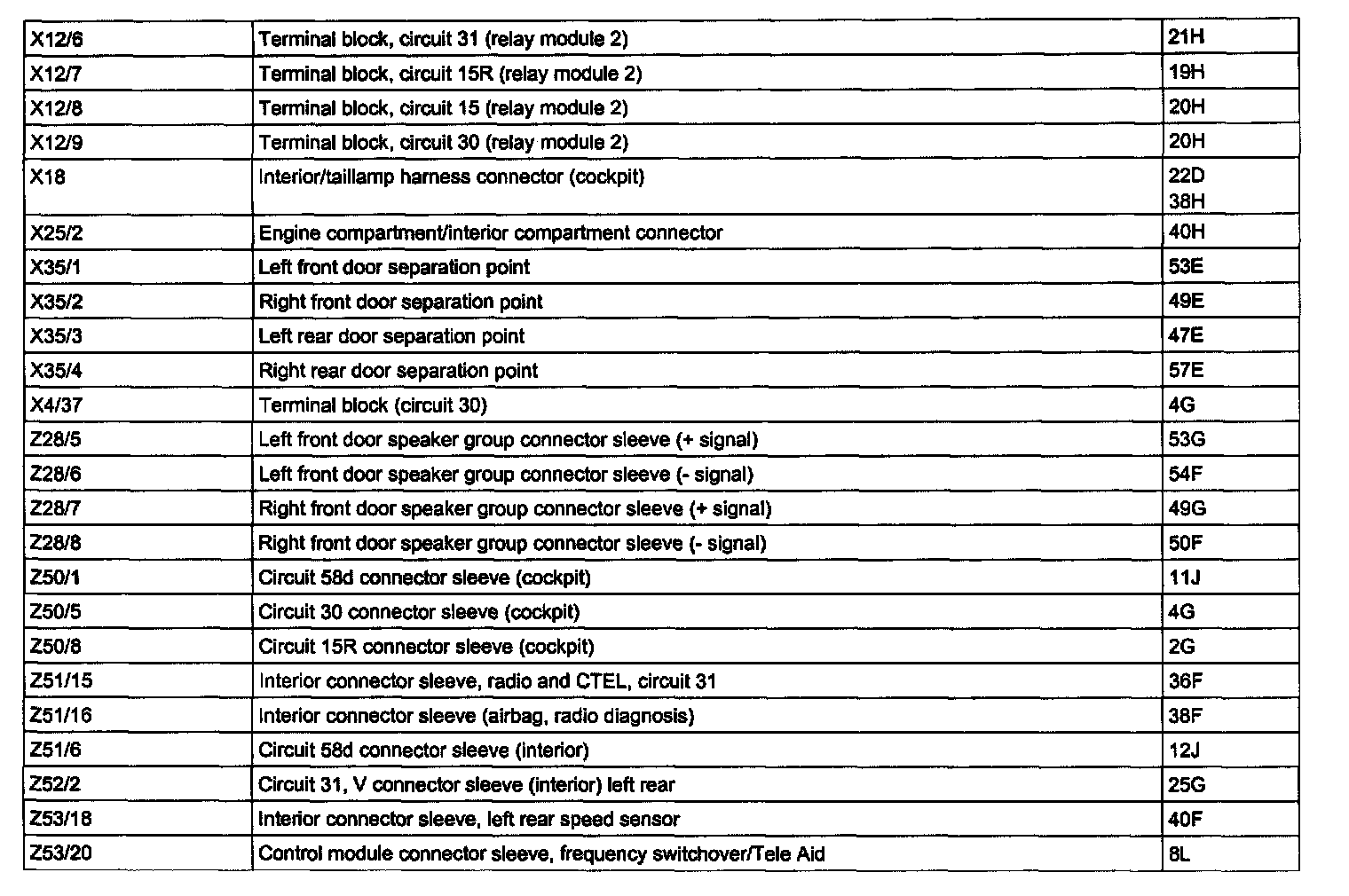

Legend For Radio:






Legend For Radio:
