ME-SFI Fuel Injection/Ignition System PE07.61-U-2000T



ME-SFI Fuel Injection & Ignition System PE07.61-U-2000T
- Engine Compartment/Floor Assembly

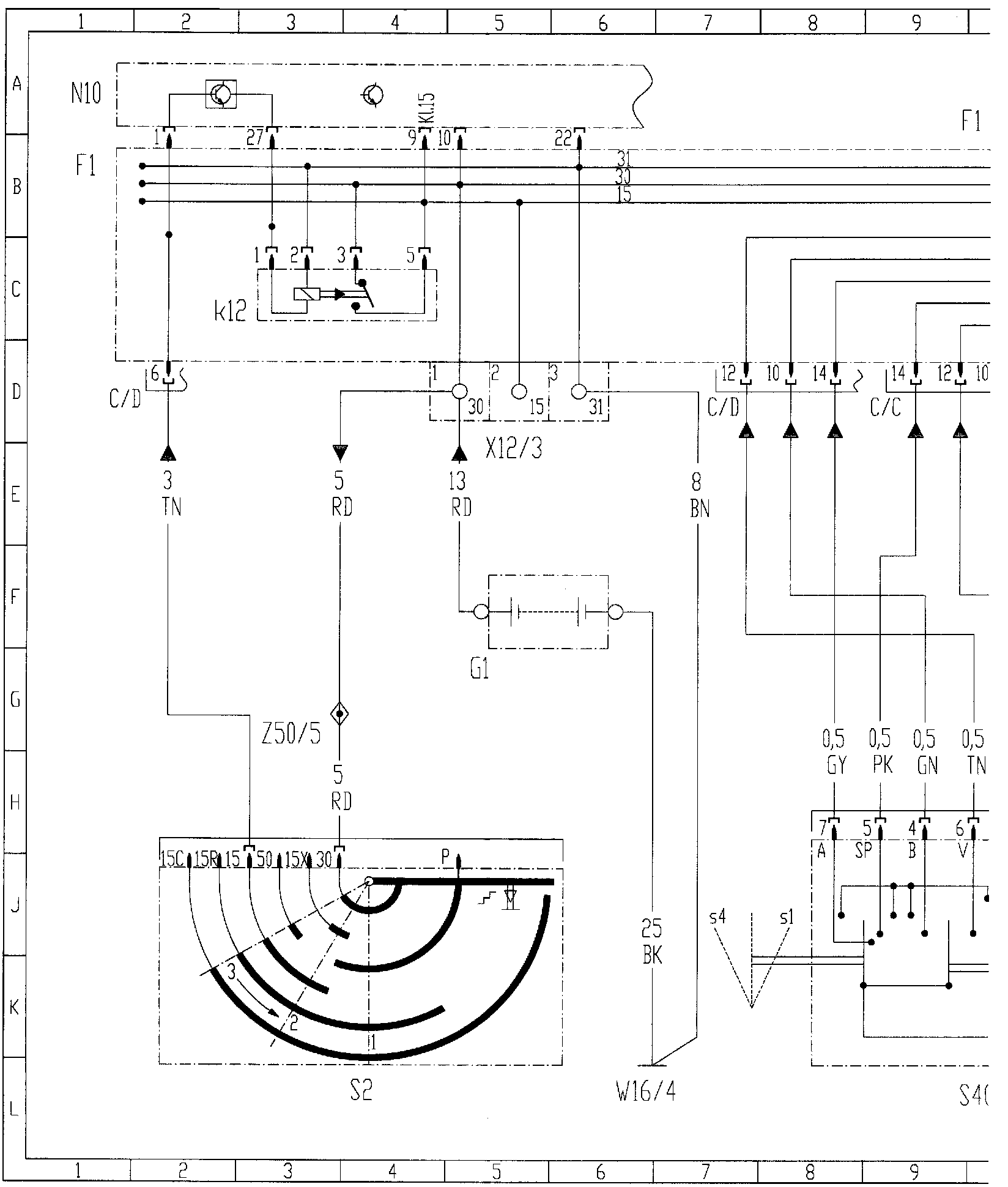

Diagram, Part 1:

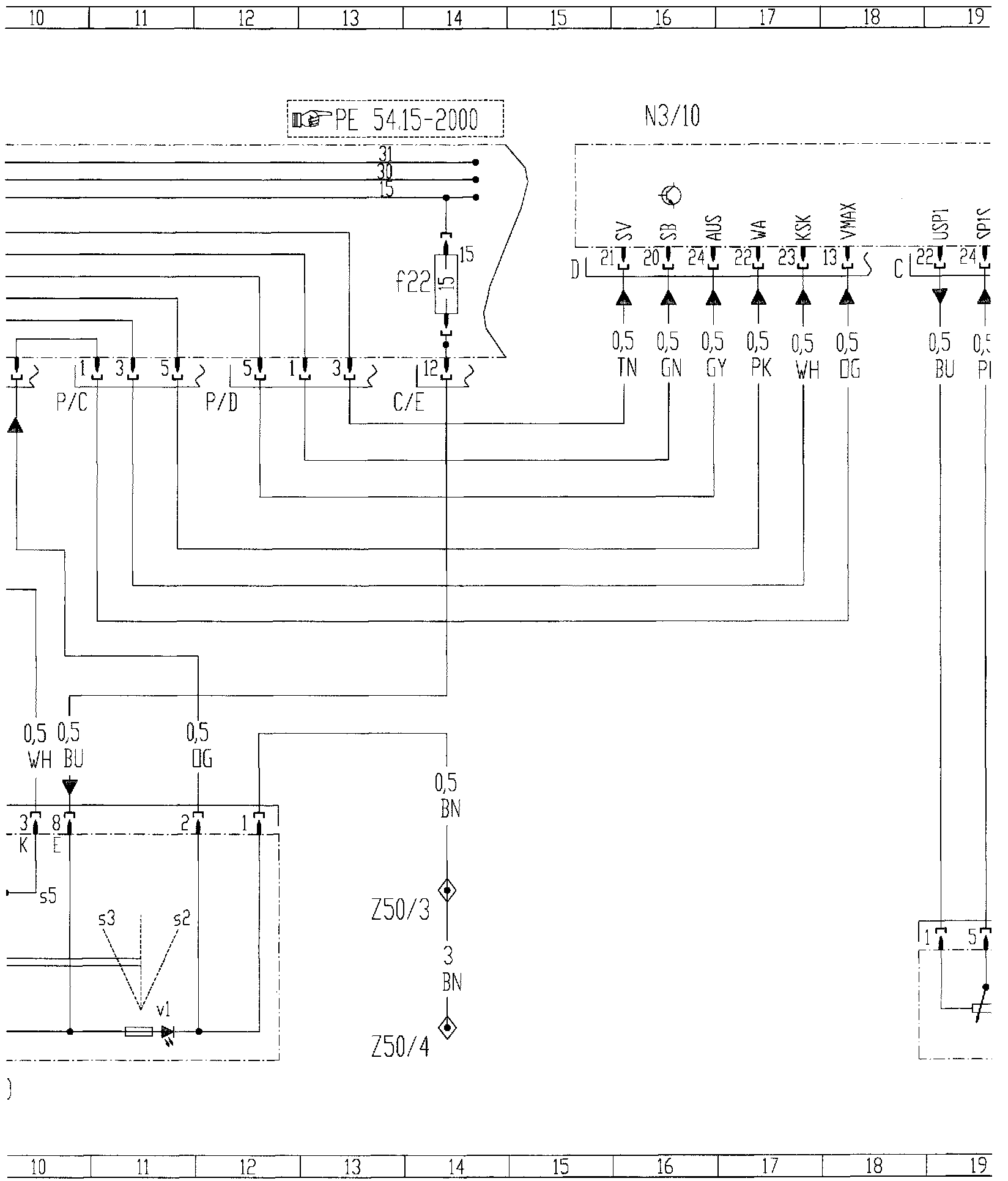

Diagram, Part 2:






Diagram, Part 3:






Diagram, Part 4:






Diagram, Part 5:






Component Description/Coordinates, B37 - Z57/3:
