Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> ME-SFI Fuel Injection/Ignition System PE07.61-U-2000GU

ME-SFI Fuel Injection/Ignition System PE07.61-U-2000GU

ME-SFI Fuel Injection & Ignition System PE07.61-U-2000GU
- Engine Block Harness

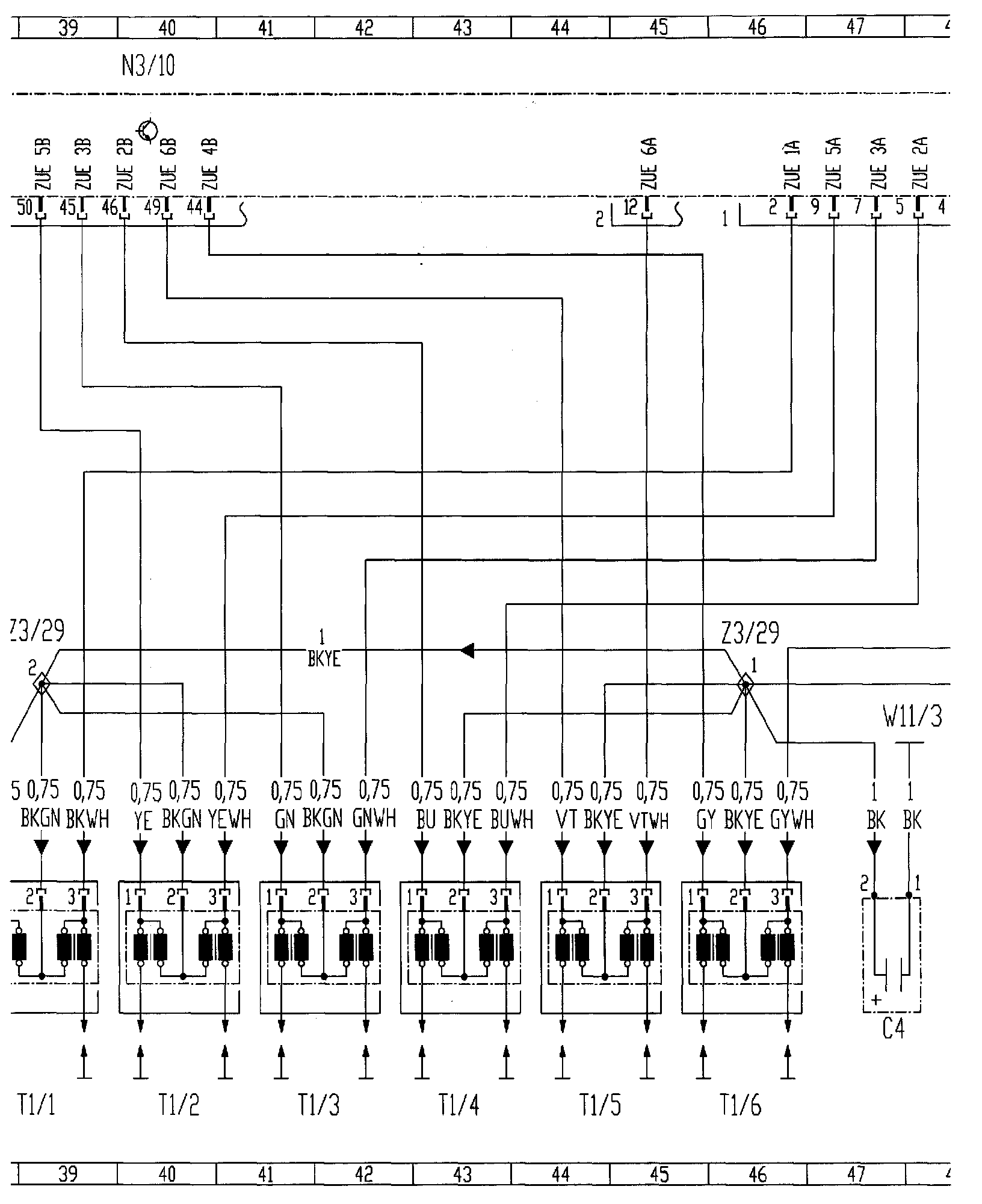

ME-SFI Fuel Injection And Ignition System:

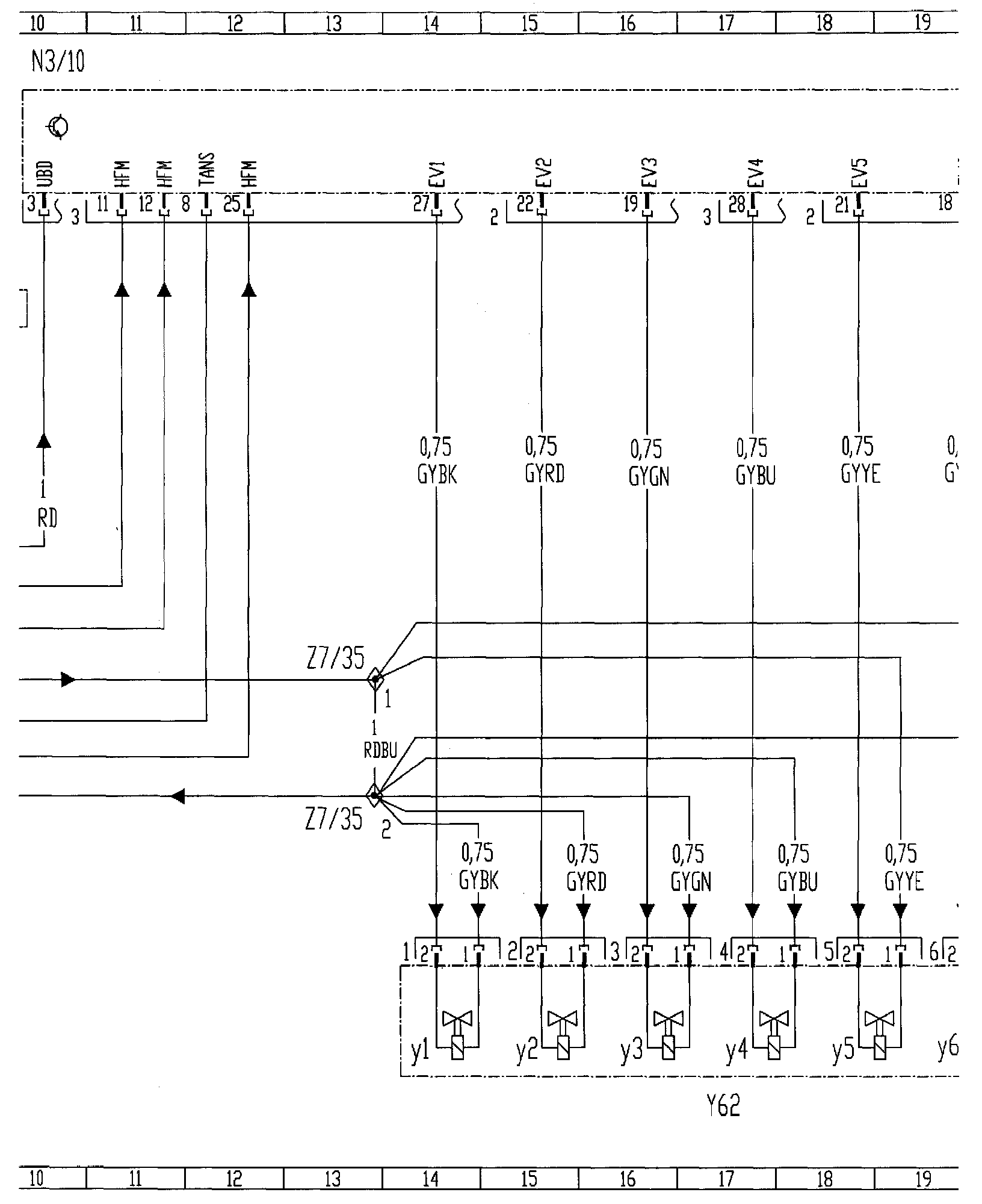

ME-SFI Fuel Injection And Ignition System:

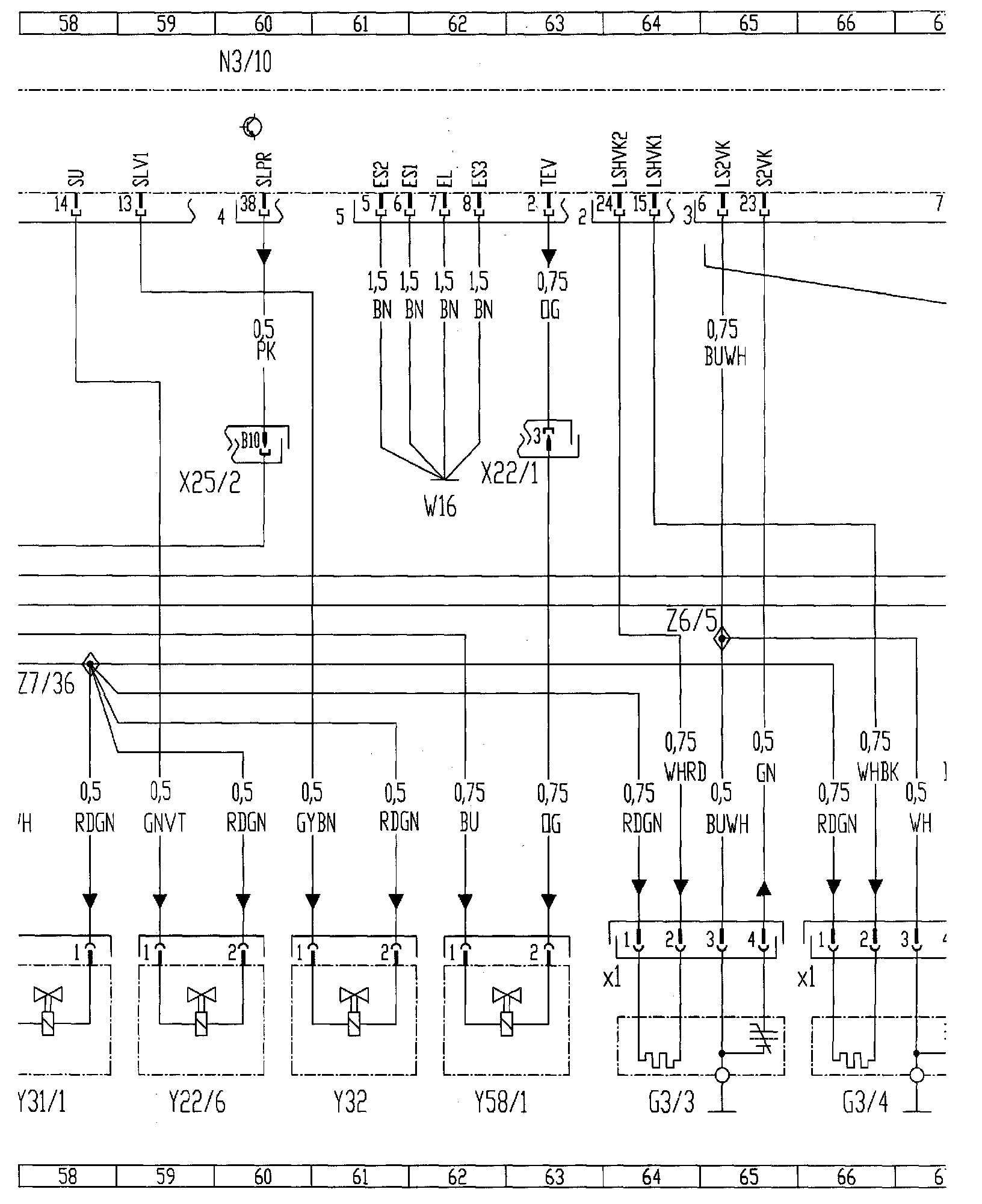

ME-SFI Fuel Injection And Ignition System:






ME-SFI Fuel Injection And Ignition System:






ME-SFI Fuel Injection And Ignition System:






ME-SFI Fuel Injection And Ignition System:






ME-SFI Fuel Injection And Ignition System:






ME-SFI Fuel Injection And Ignition System:






ME-SFI Fuel Injection And Ignition System:






Legend For ME-SFI Fuel Injection And Ignition System:






Legend For ME-SFI Fuel Injection And Ignition System:
