ME-SFI Fuel Injection/Ignition System PE07.61-U-2000GT

ME-SFI Fuel Injection & Ignition System PE07.61-U-2000GT
- Engine Compartment/Frame Floor Harness

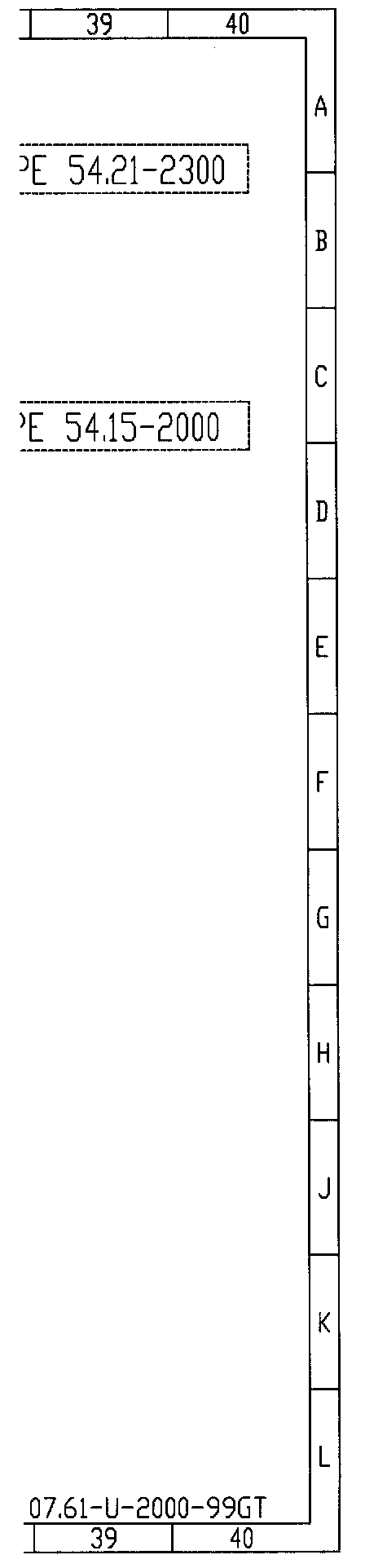

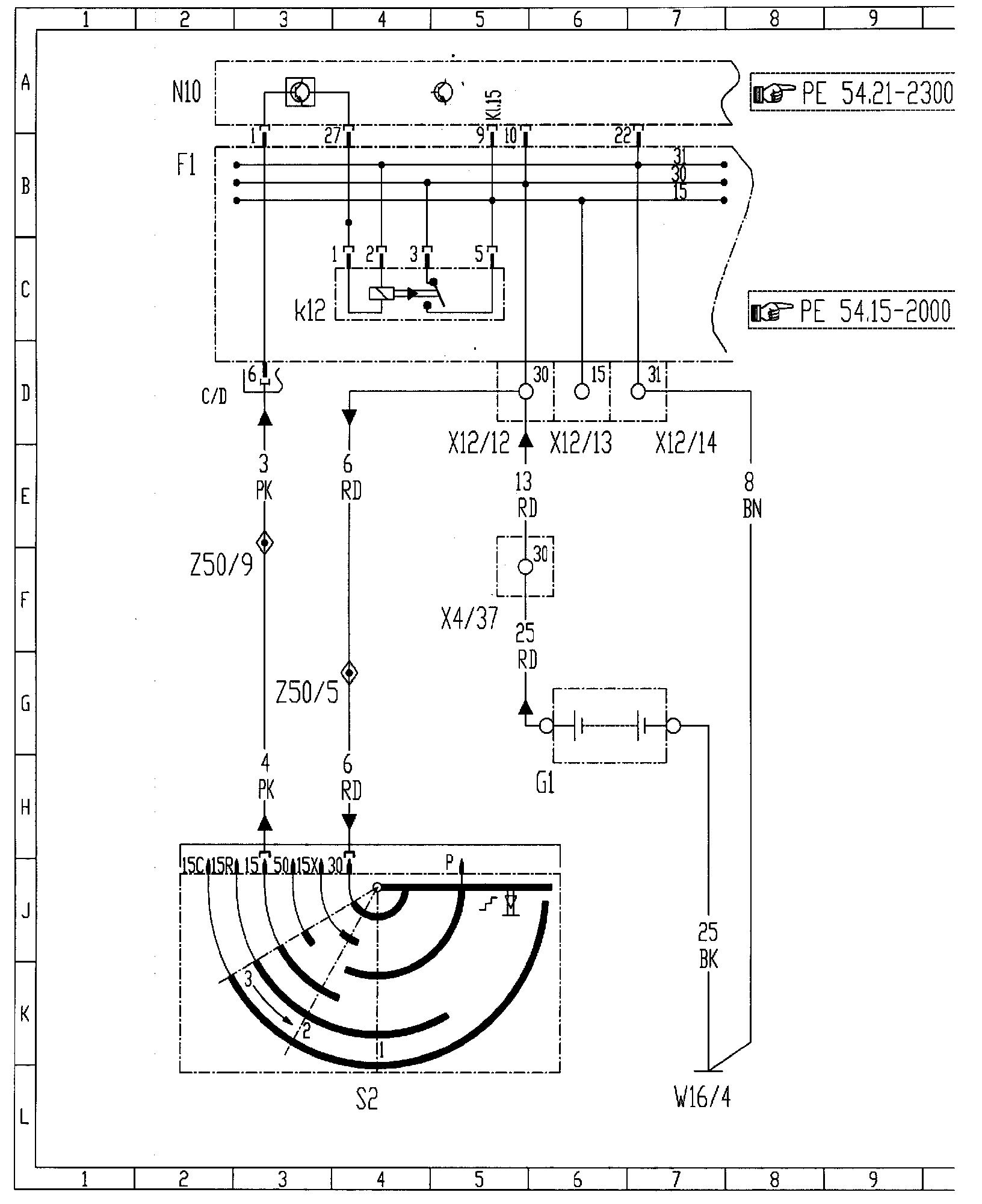

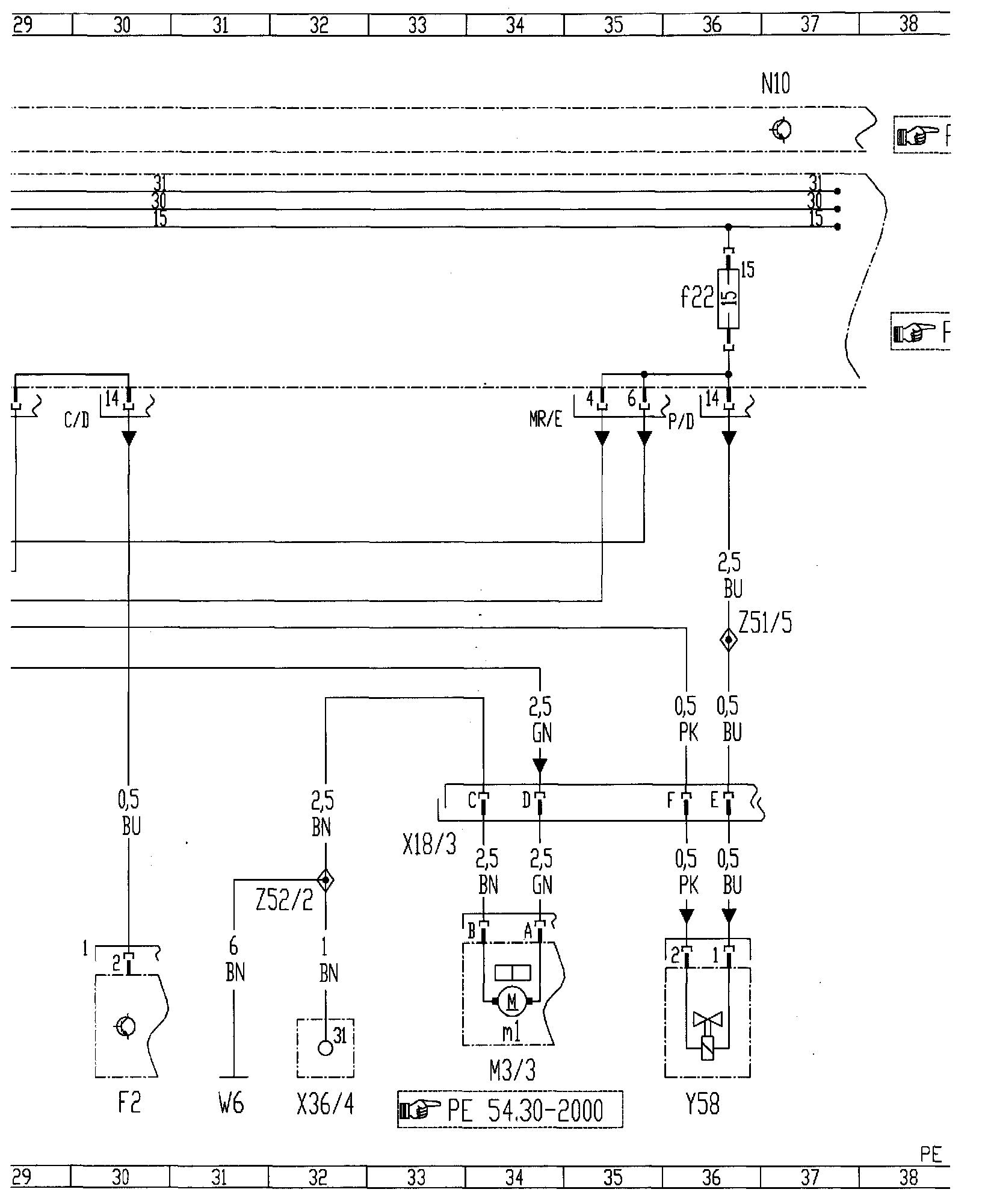

ME-SFI Fuel Injection And Ignition System:






ME-SFI Fuel Injection And Ignition System:






ME-SFI Fuel Injection And Ignition System:






ME-SFI Fuel Injection And Ignition System:






ME-SFI Fuel Injection And Ignition System:

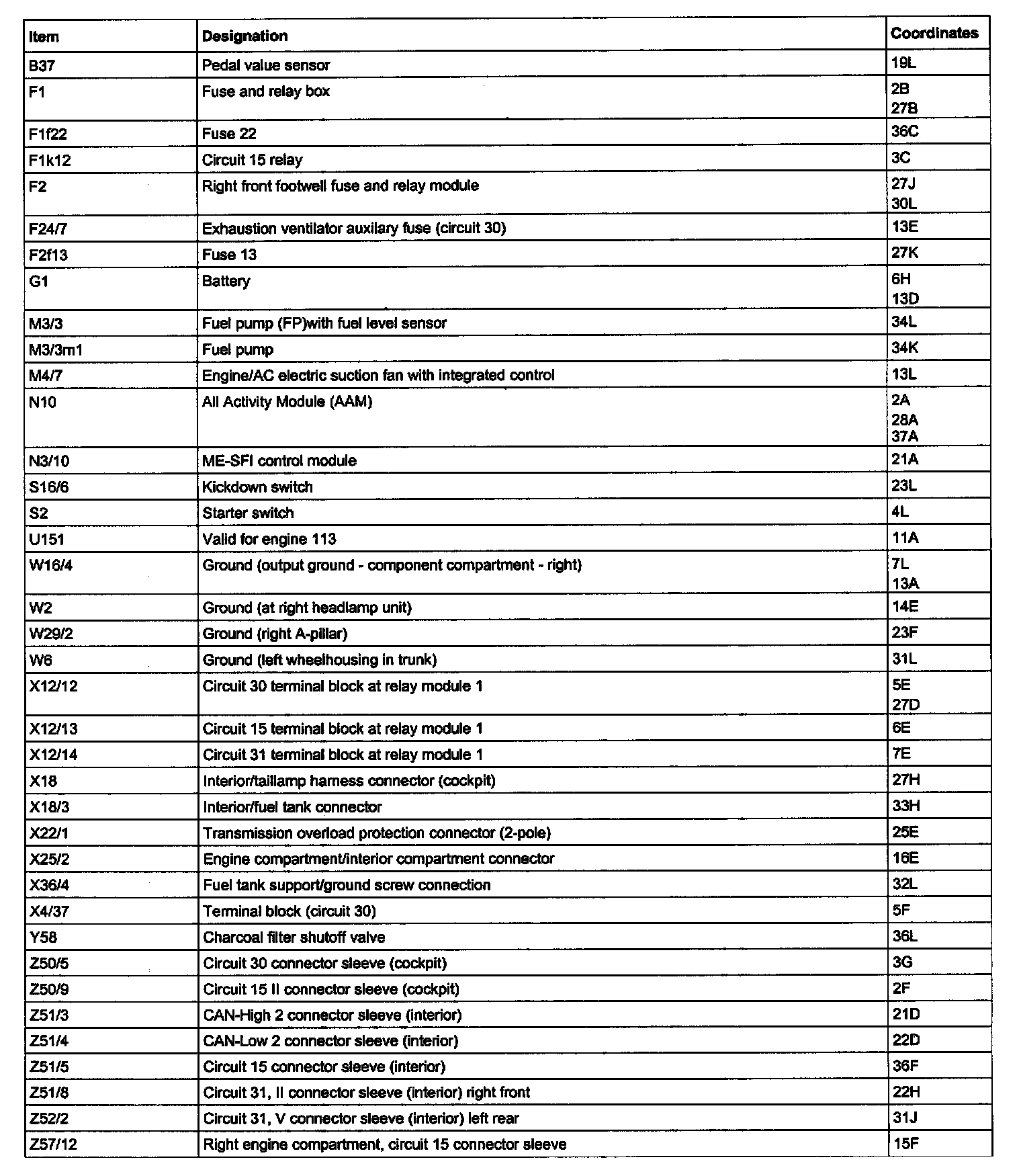

Legend For ME-SFI Fuel Injection And Ignition System:
