Vehicle Speed Sensor

Vehicle Speed Signal (VSS) Inductive Sensor PE00.19-U-2030GH

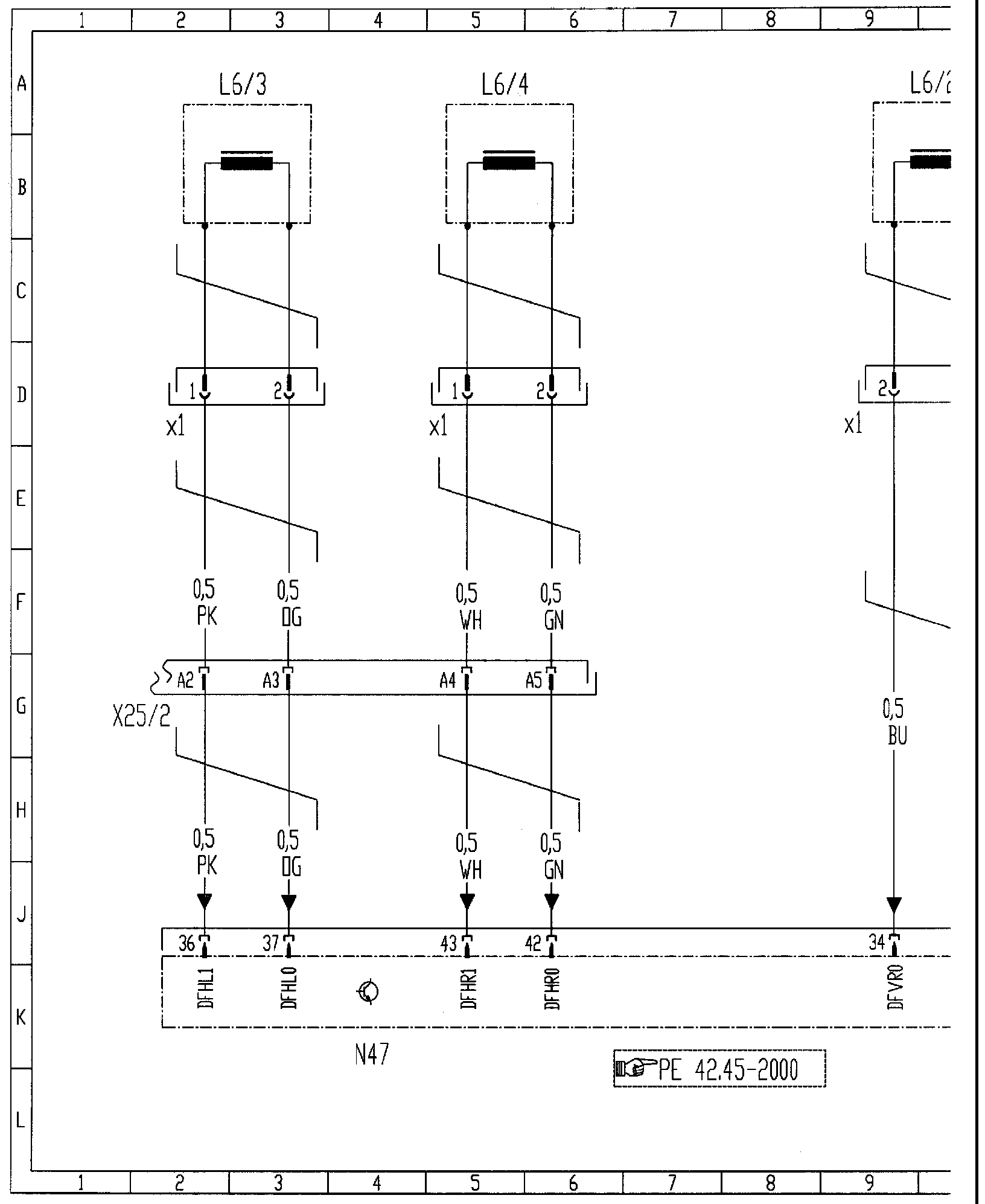

Vehicle Speed Signal Inductive Sensor (VSS):

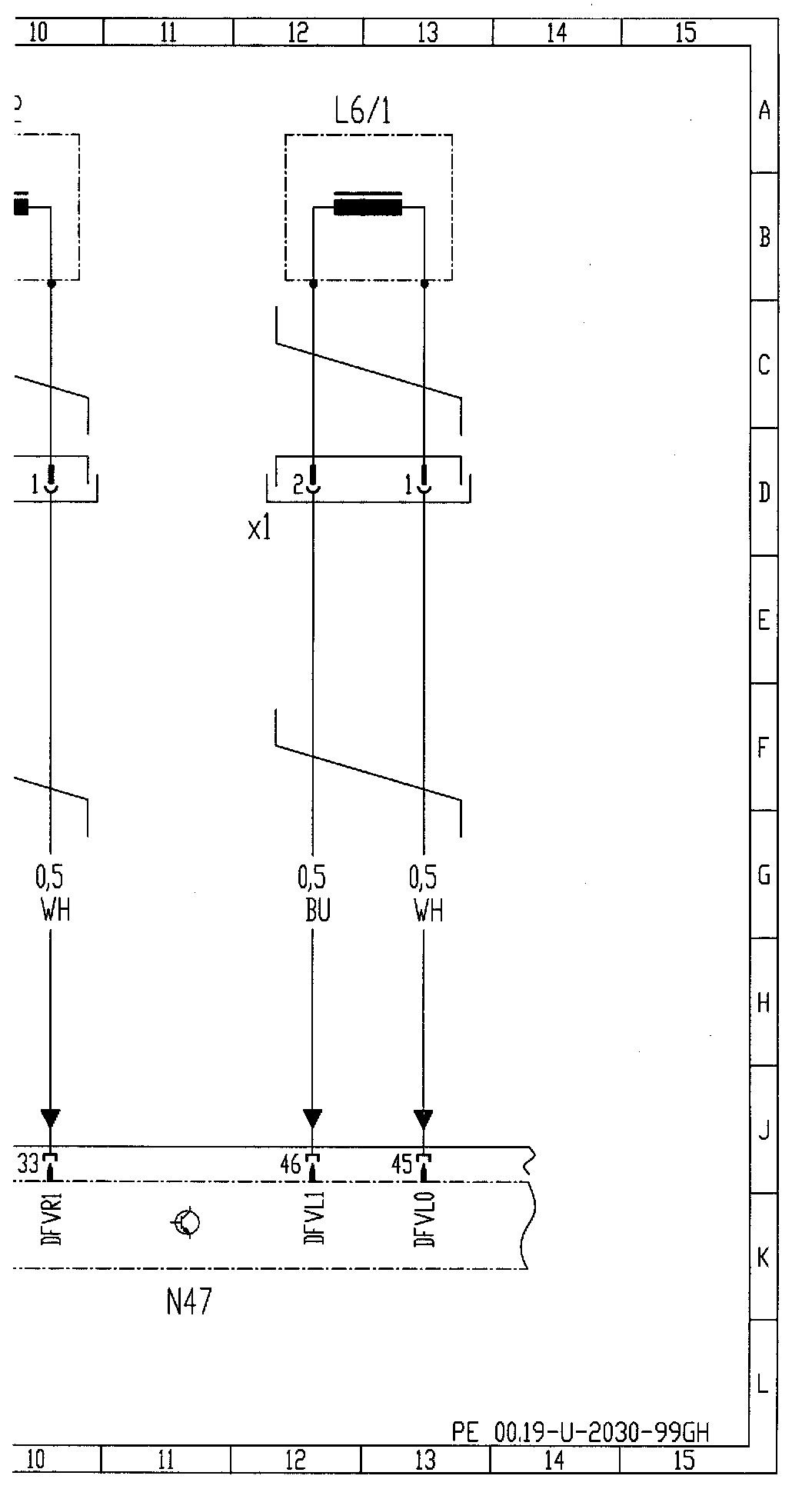

Vehicle Speed Signal Inductive Sensor (VSS):

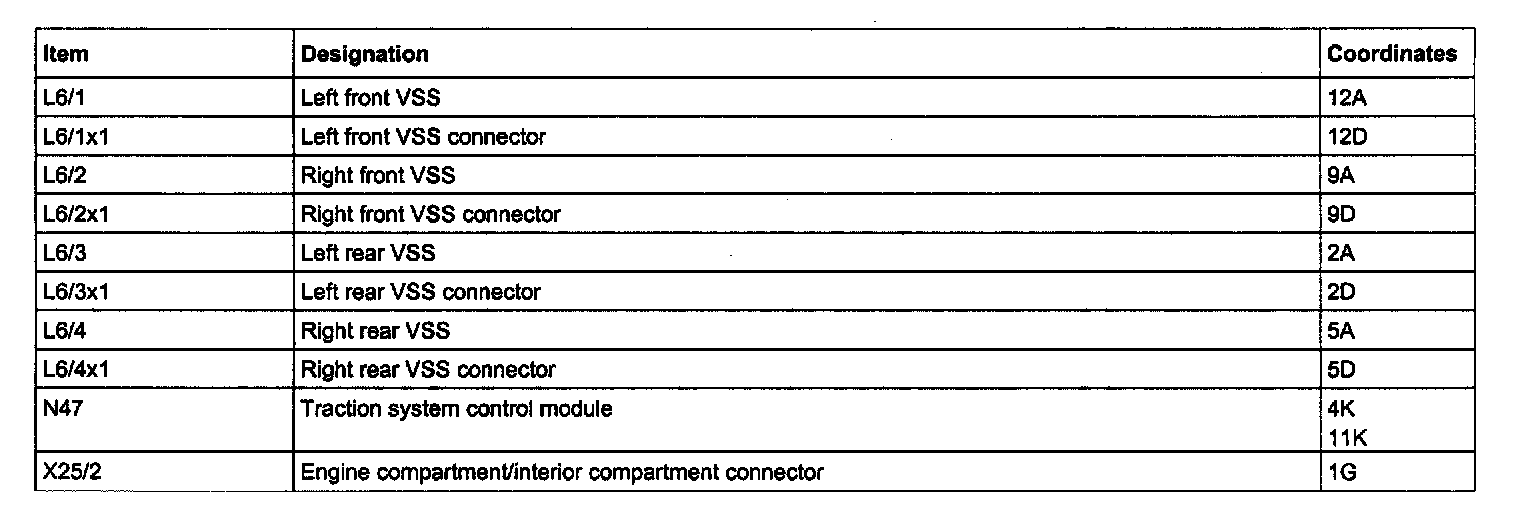

Legend For Vehicle Signal Inductive Sensor (VSS):
