Mercedes Benz Truck
>>
2005
>>
ML 350 (163.157) V6-3.7L (112.970)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Digital Data Bus (D2B) PE82.00-U-2700GI
Digital Data Bus (D2B) PE82.00-U-2700GI
Digital Data Bus (D2B) PE82.00-U-2700GI

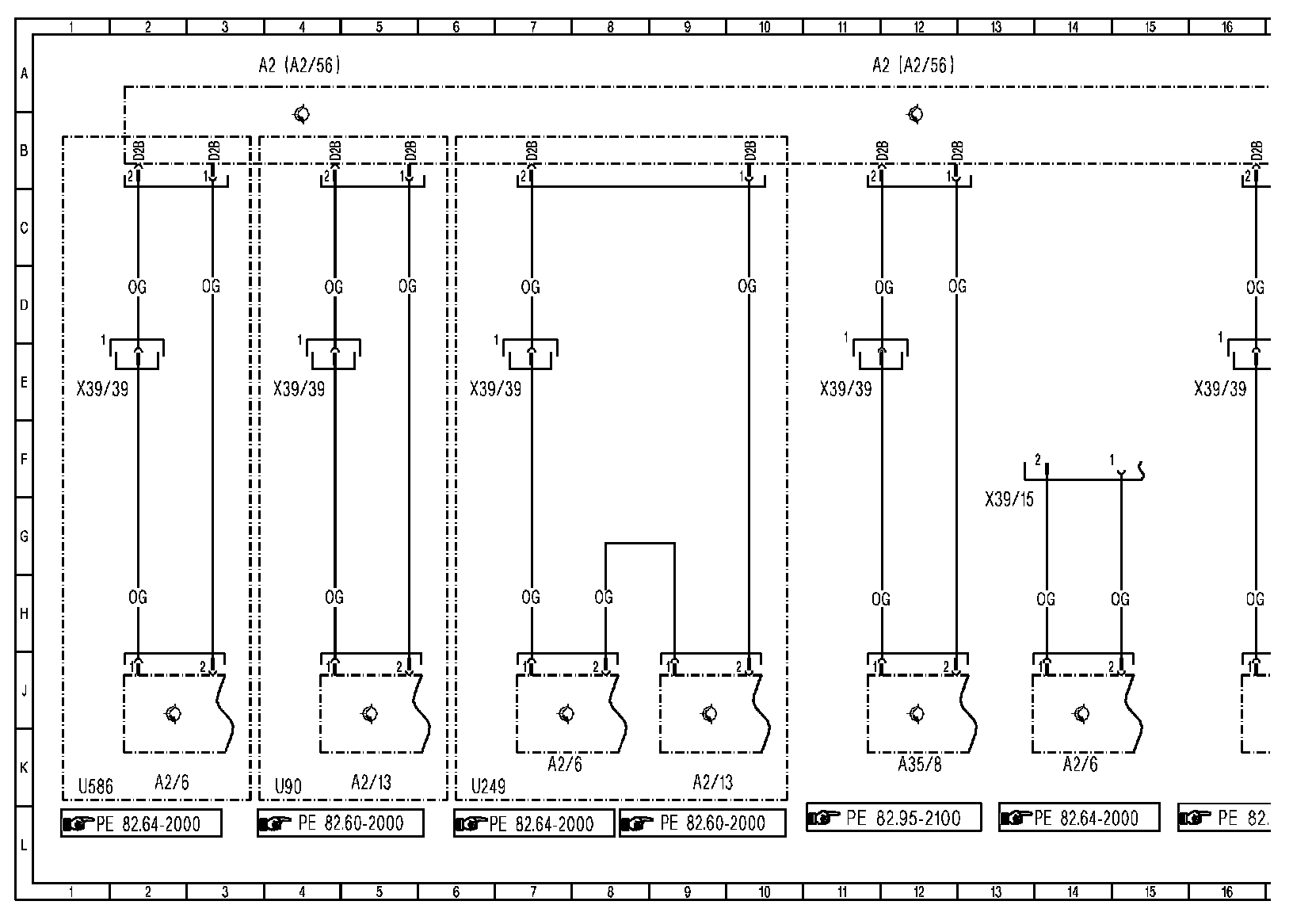

Wiring Diagram, Part 1:
Wiring Diagram, Part 2:

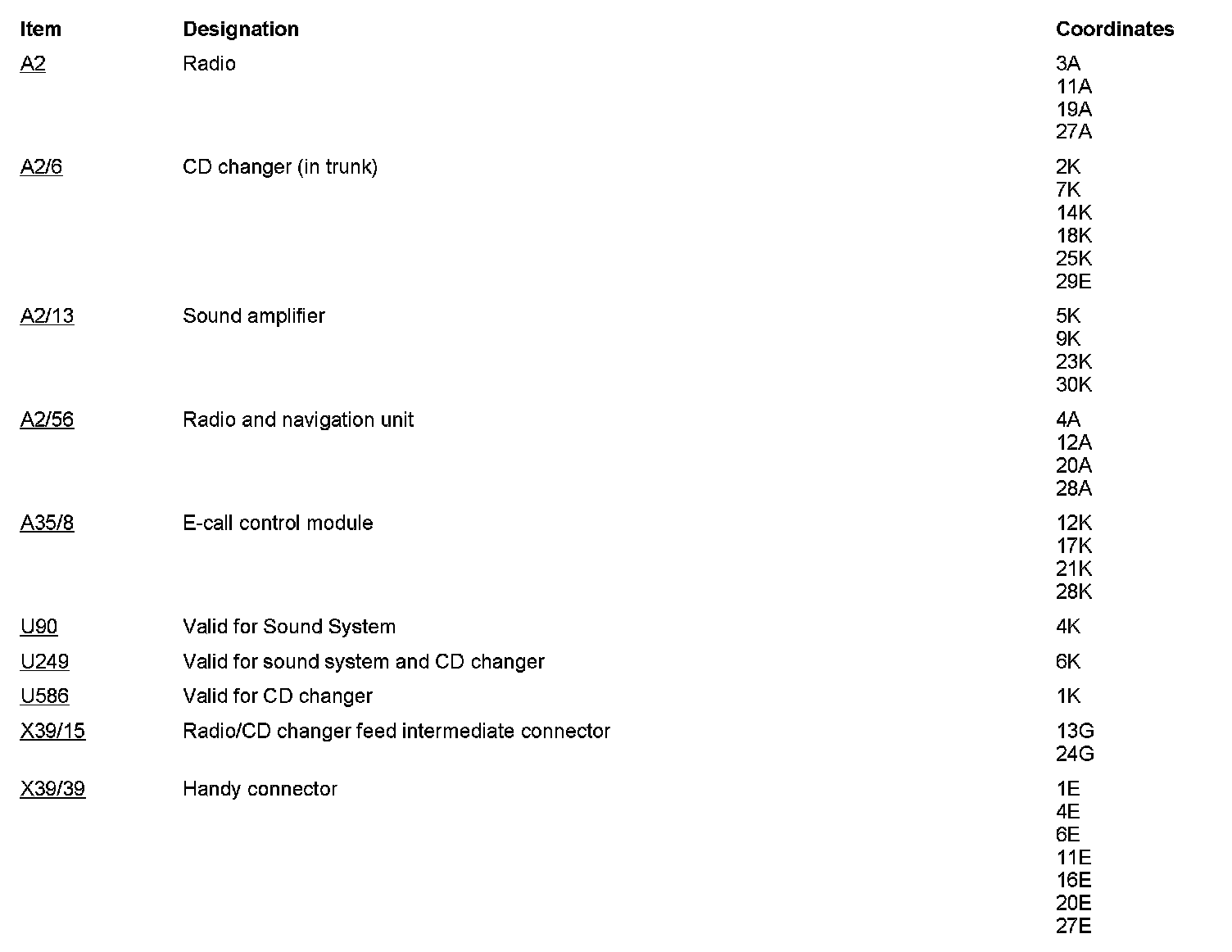

Component Description/Coordinates, A2 to X39/39:
