Datalink Connector/Diagnostic Socket PE54.22-U-2000E



Data Link Connector PE54.22-U-2000E

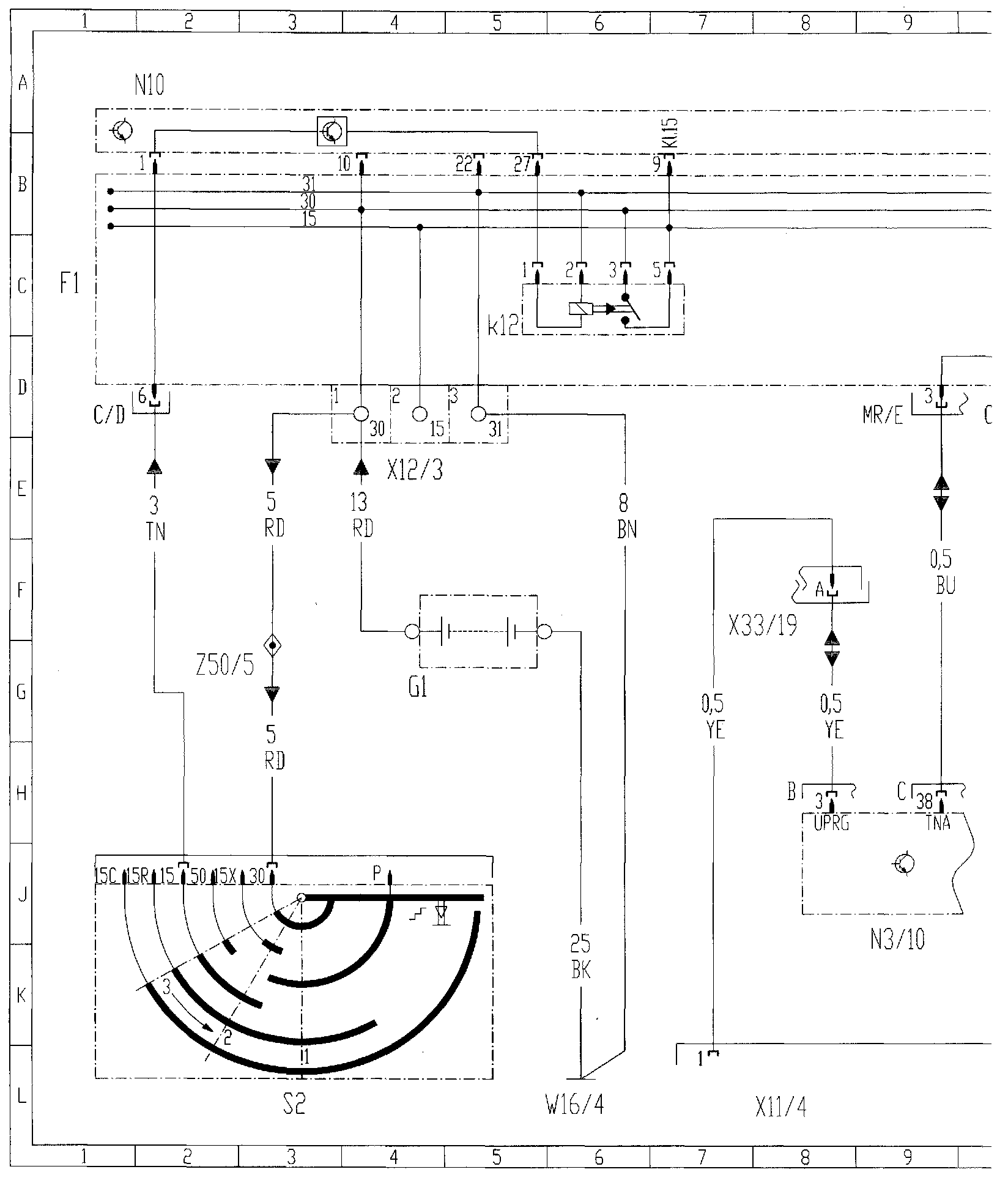

Diagram, Part 1:

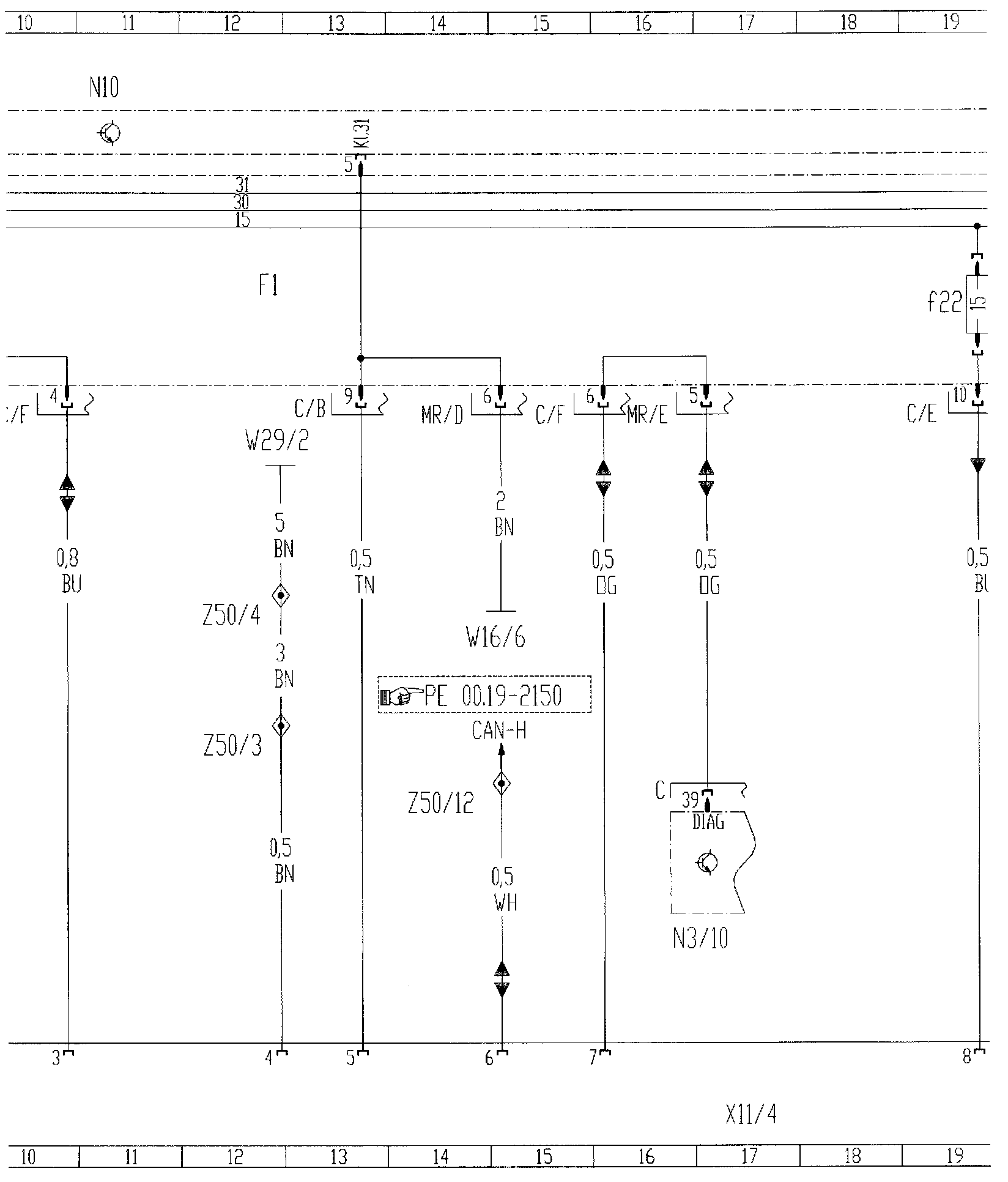

Diagram, Part 2:

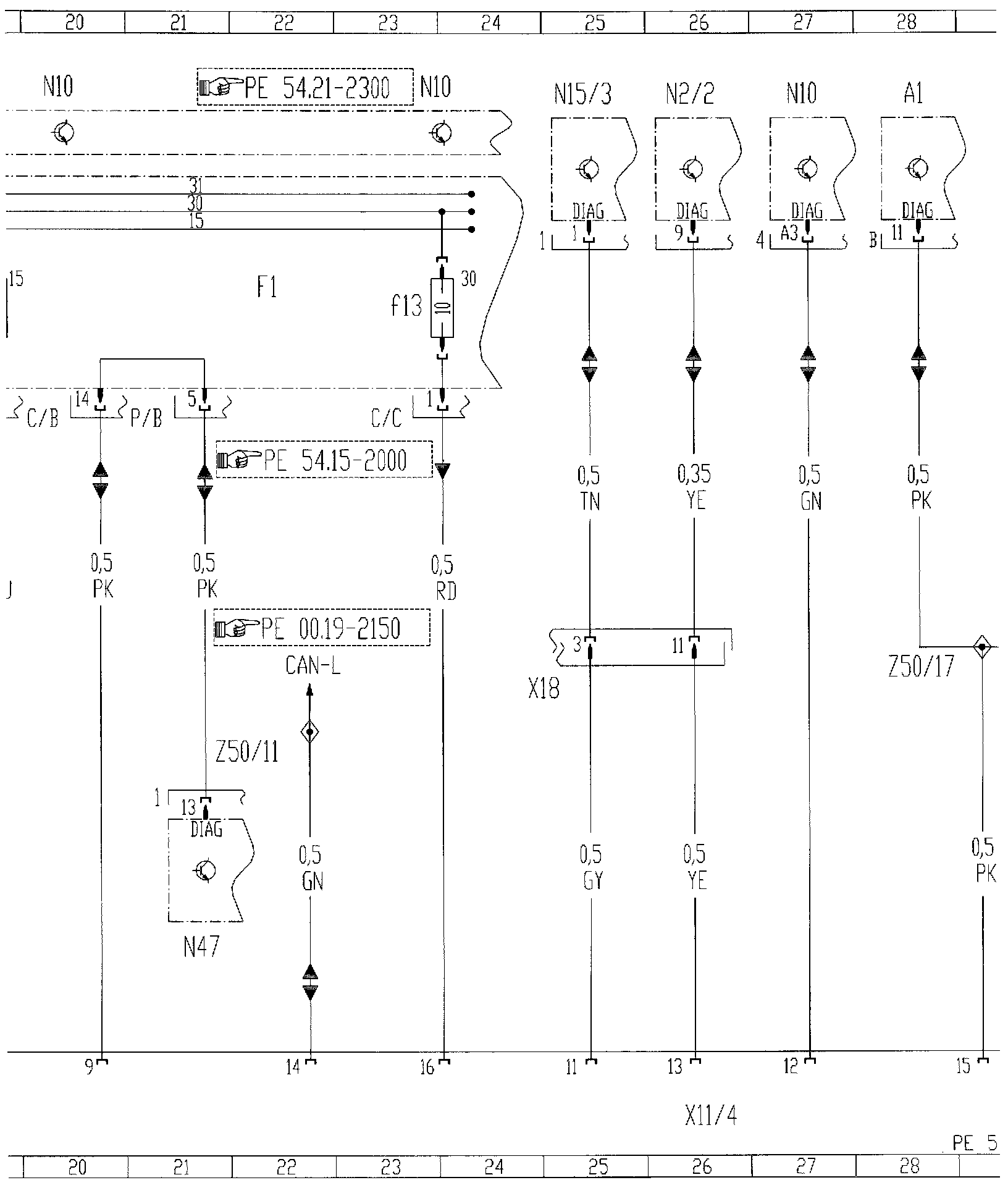

Diagram, Part 3:

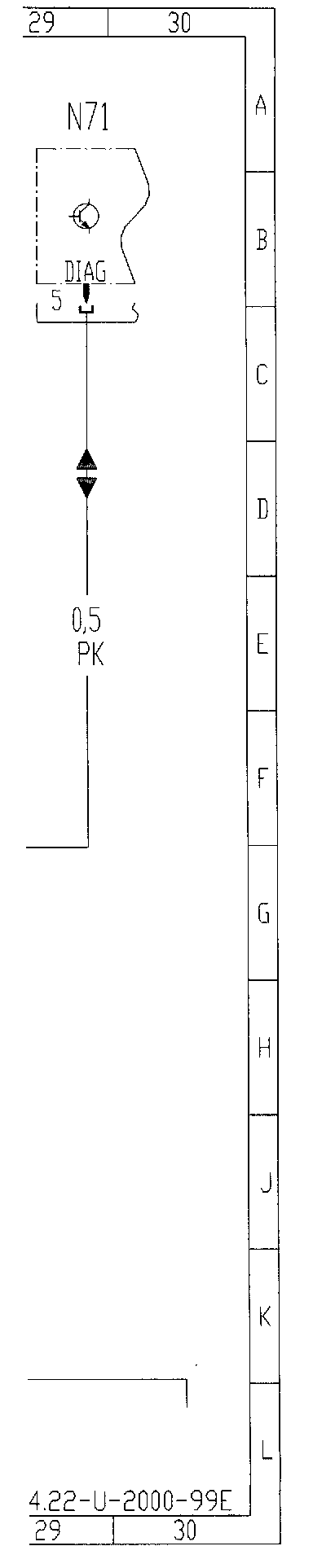

Diagram, Part 4:

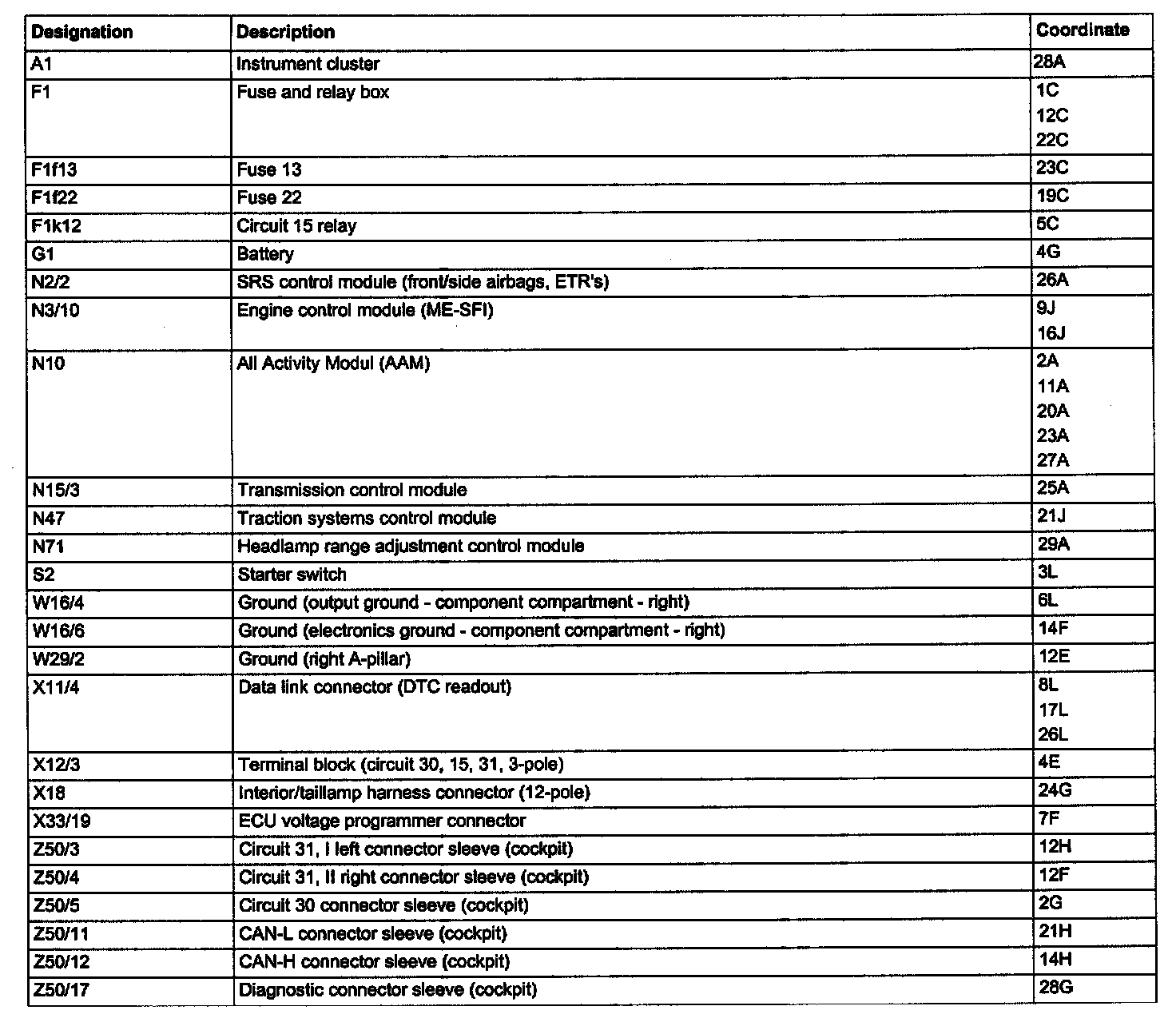

Component Description/Coordinates, A1 - Z50/17:
