Anti-Theft Alarm System (ATA) PE80.50-U-2000GK
Anti-Theft Alarm System (ATA) PE80.50-U-2000GK
- with CODE (551a) Anti-theft alarm system (ATA)

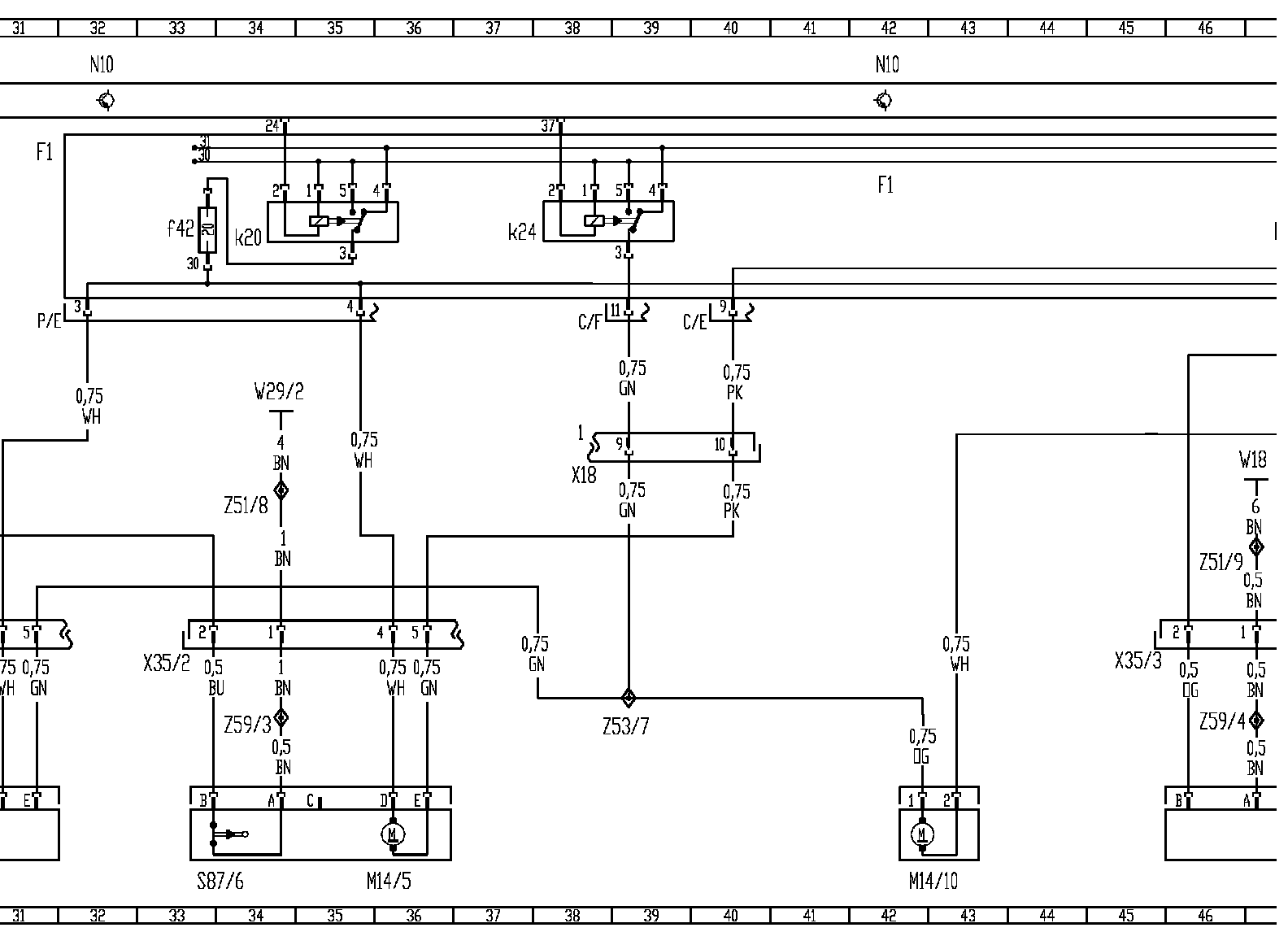

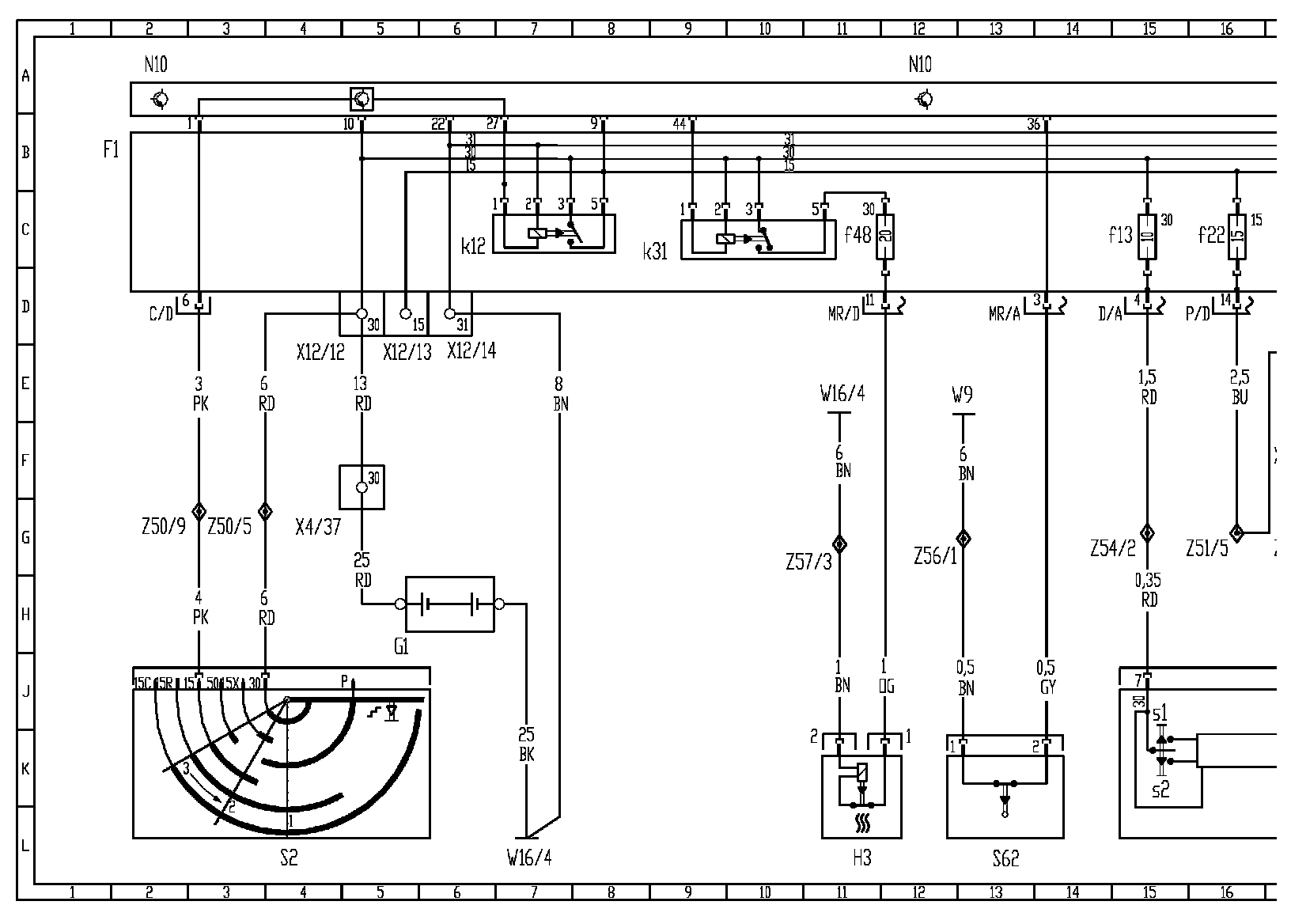

Wiring Diagram, Part 1:
Wiring Diagram, Part 2:

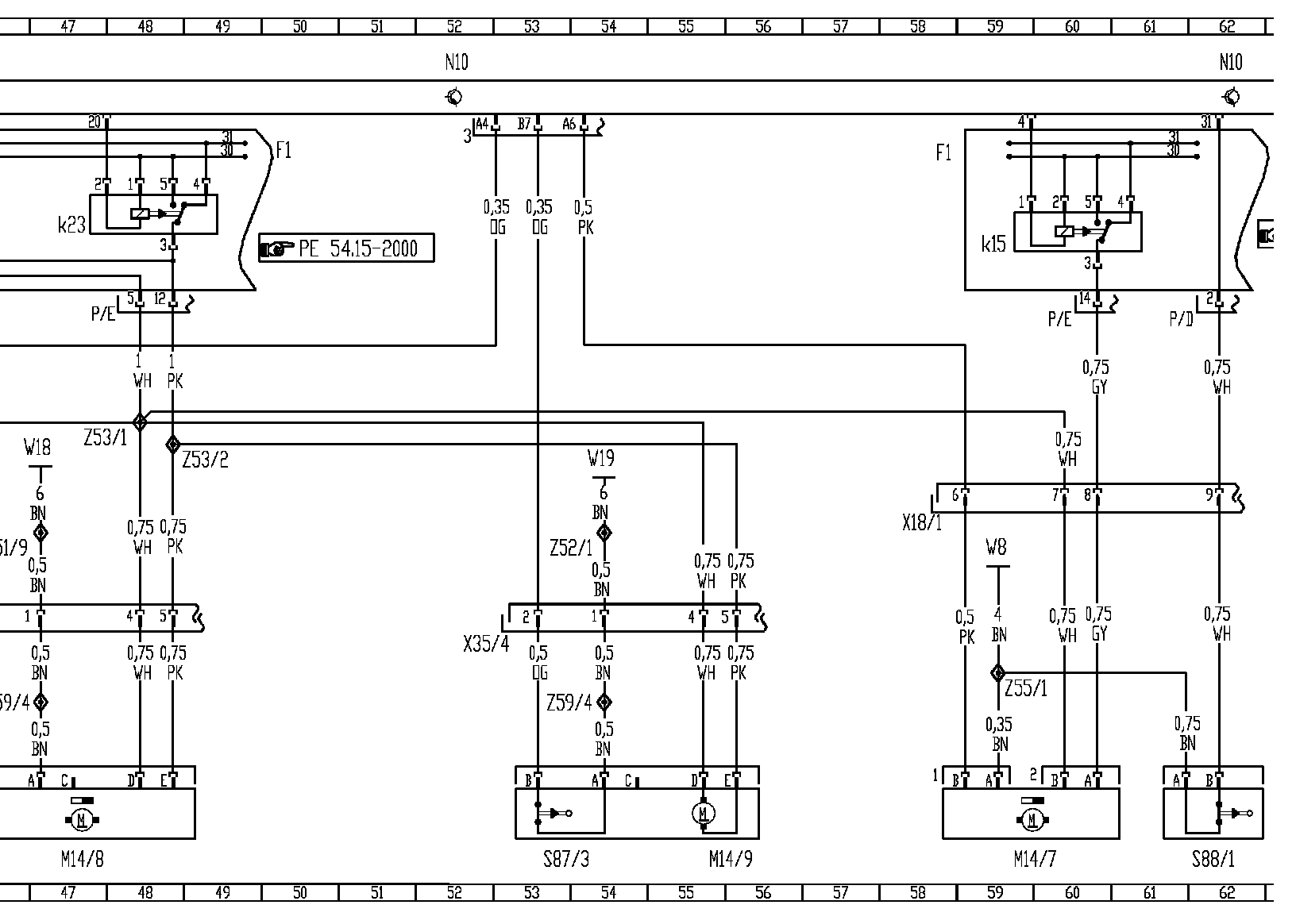

Wiring Diagram, Part 3:

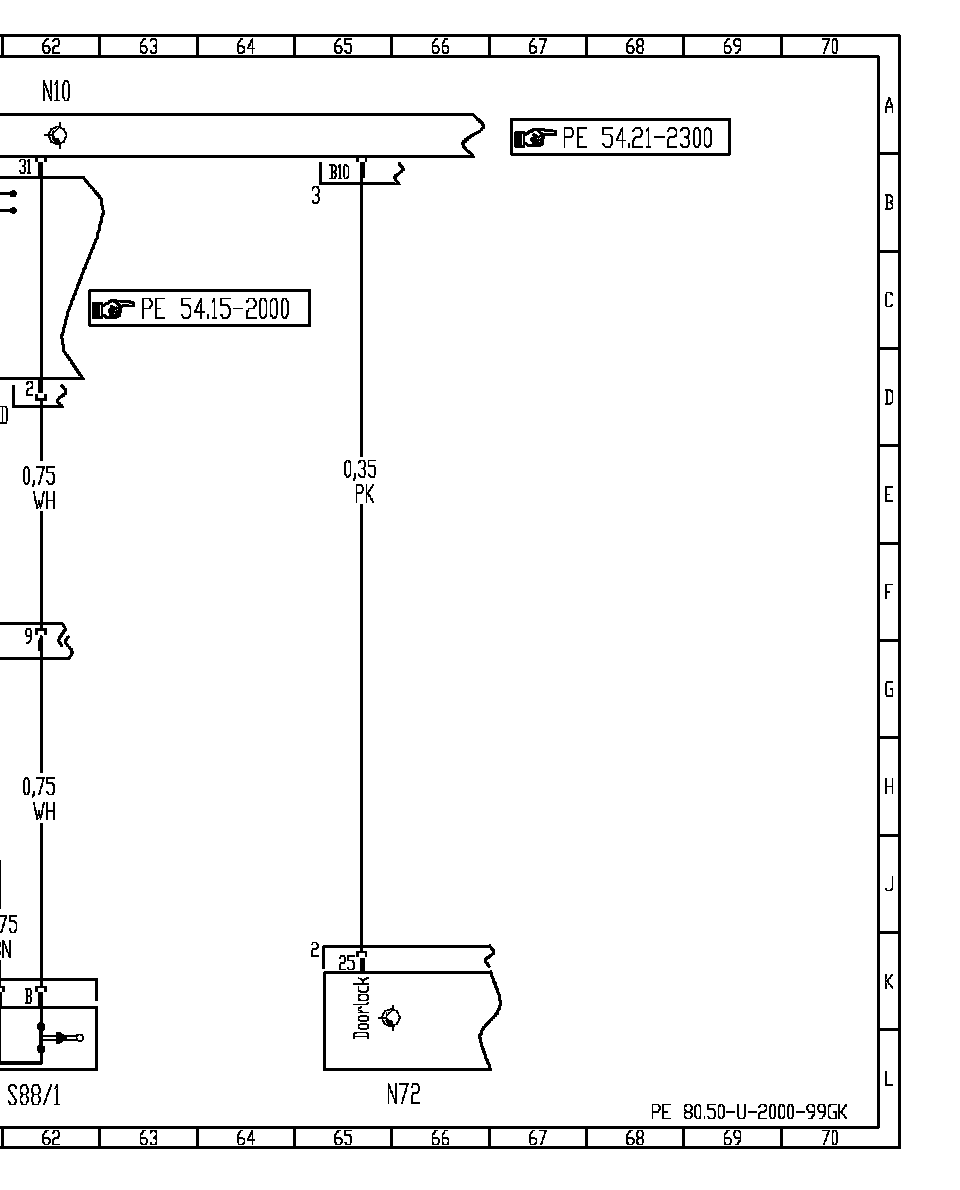

Wiring Diagram, Part 4:
Wiring Diagram, Part 5:

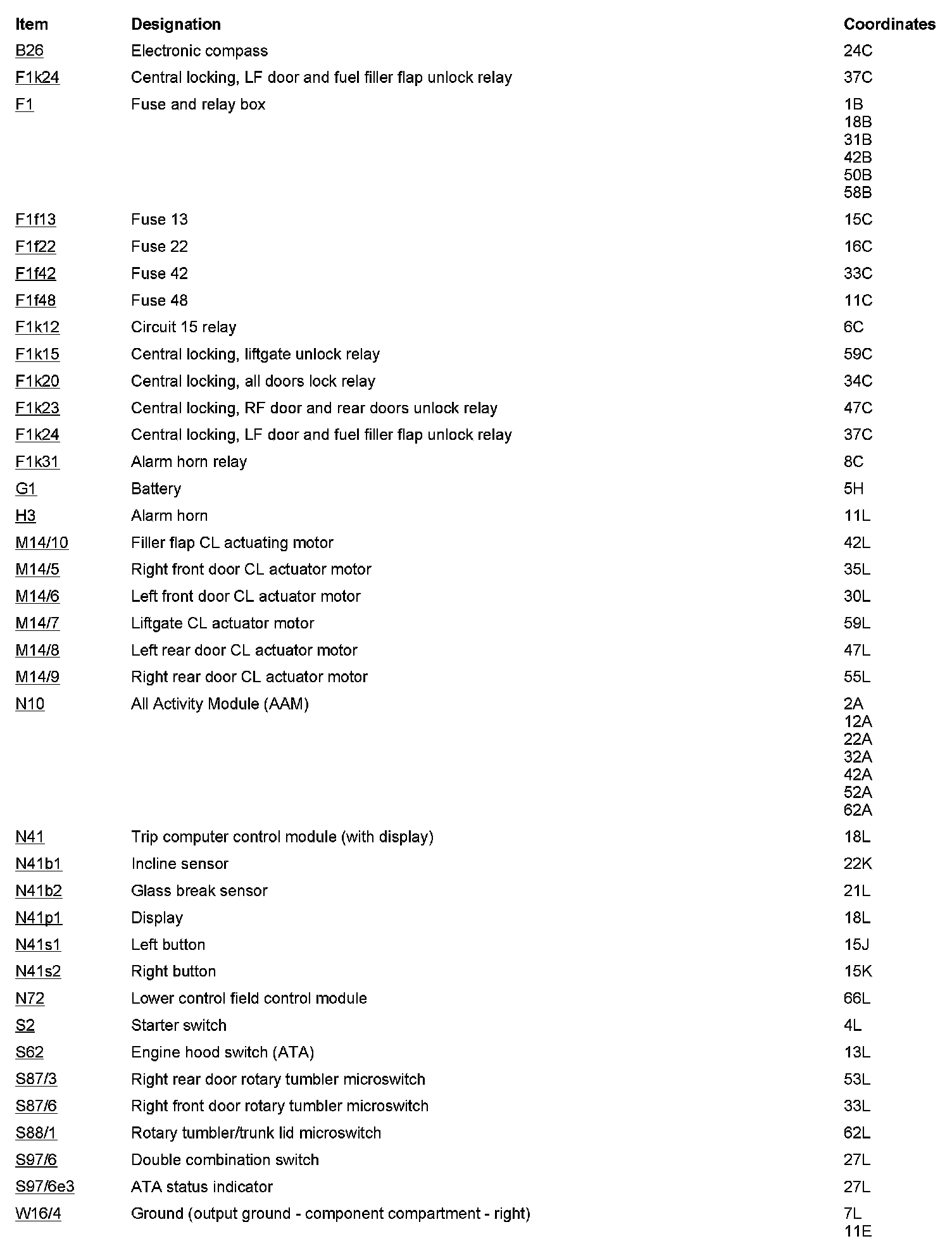

Component Description/Coordinates, B26 to W16/4:

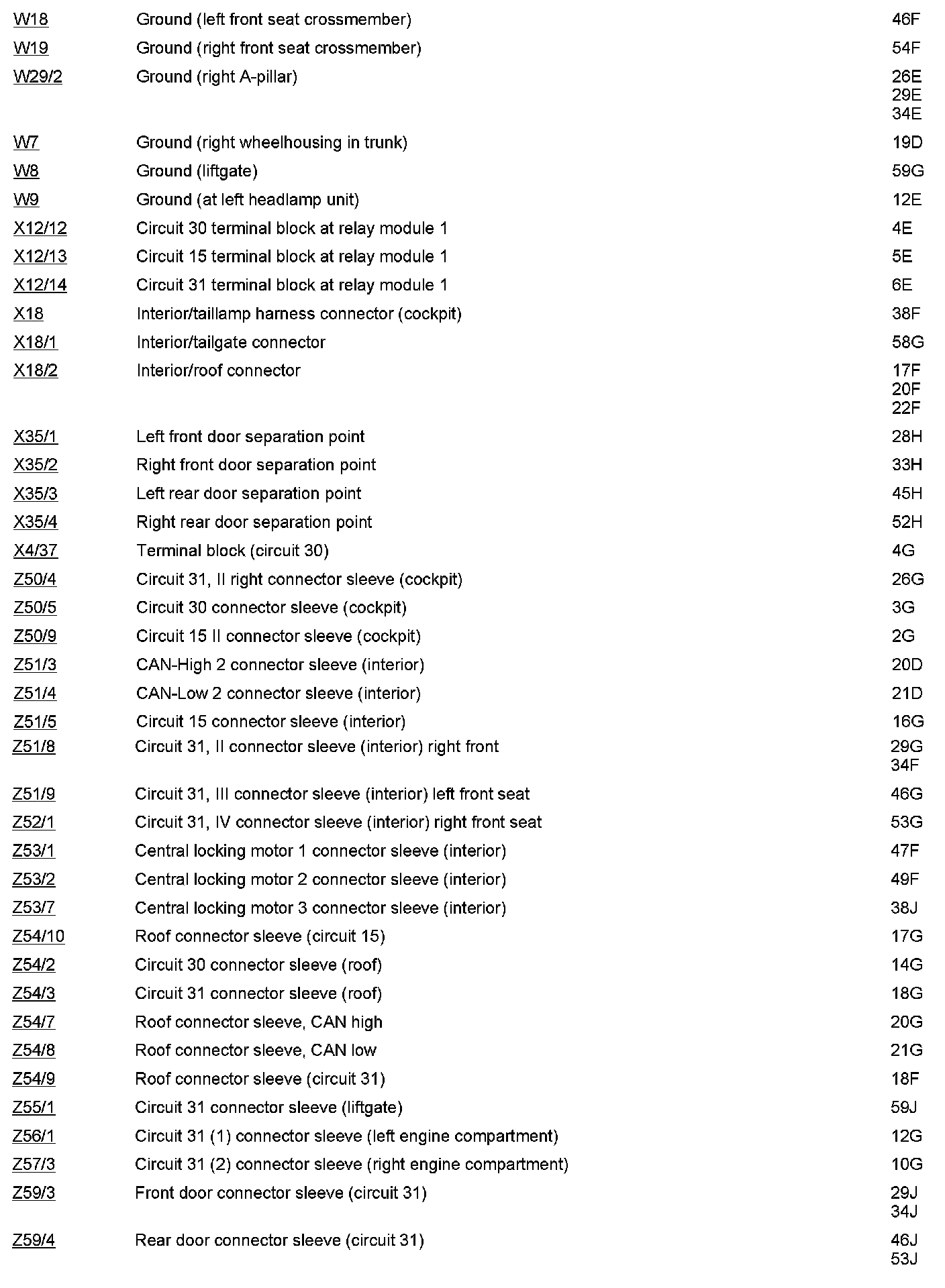

Component Description/Coordinates, W18 to Z59/4:
