AR42.10-P-0015GH Check Braking System For Leaks Using Pressure Tester
AR42.10-P-0015GH Check Braking System For Leaks Using Pressure Tester

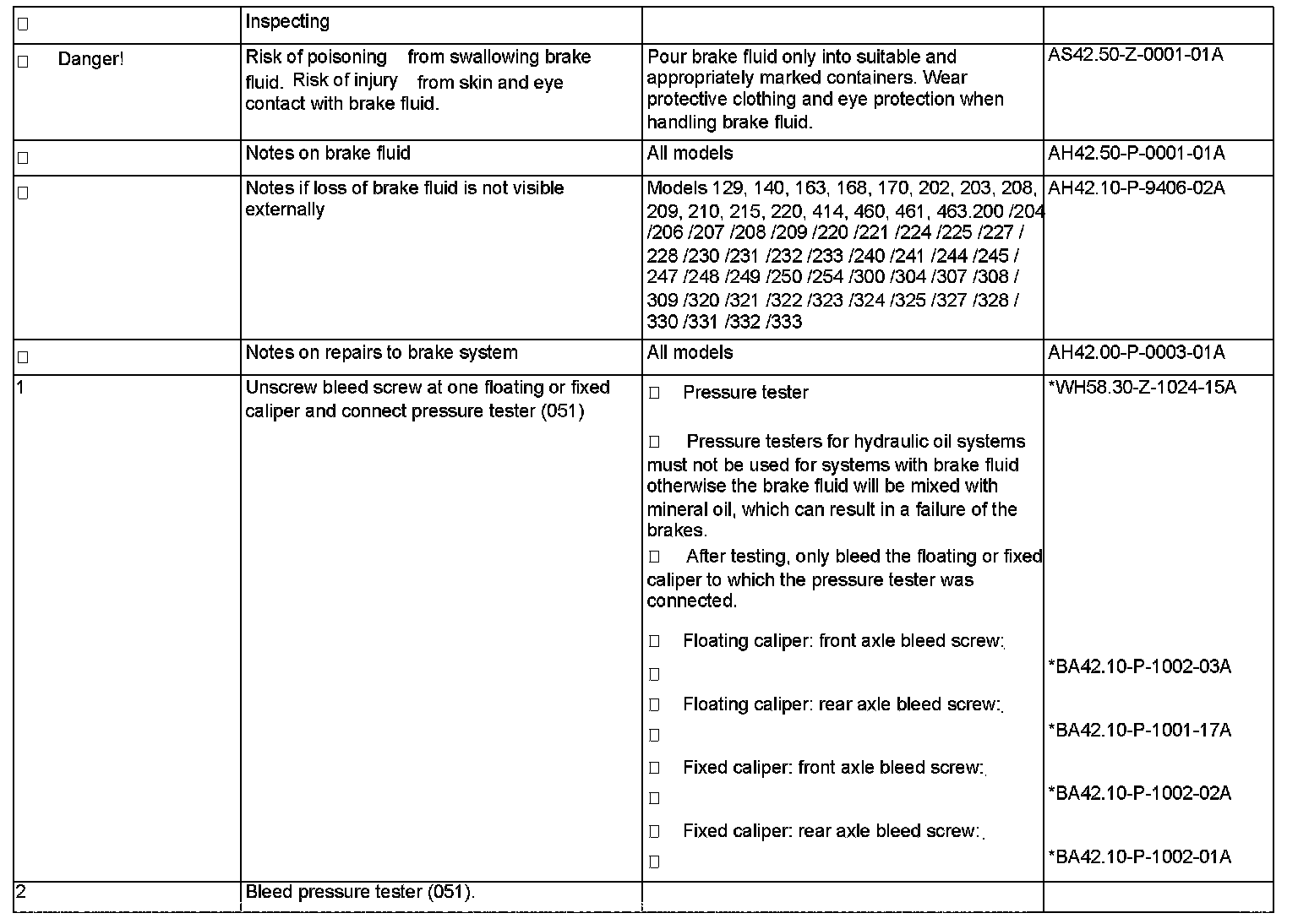

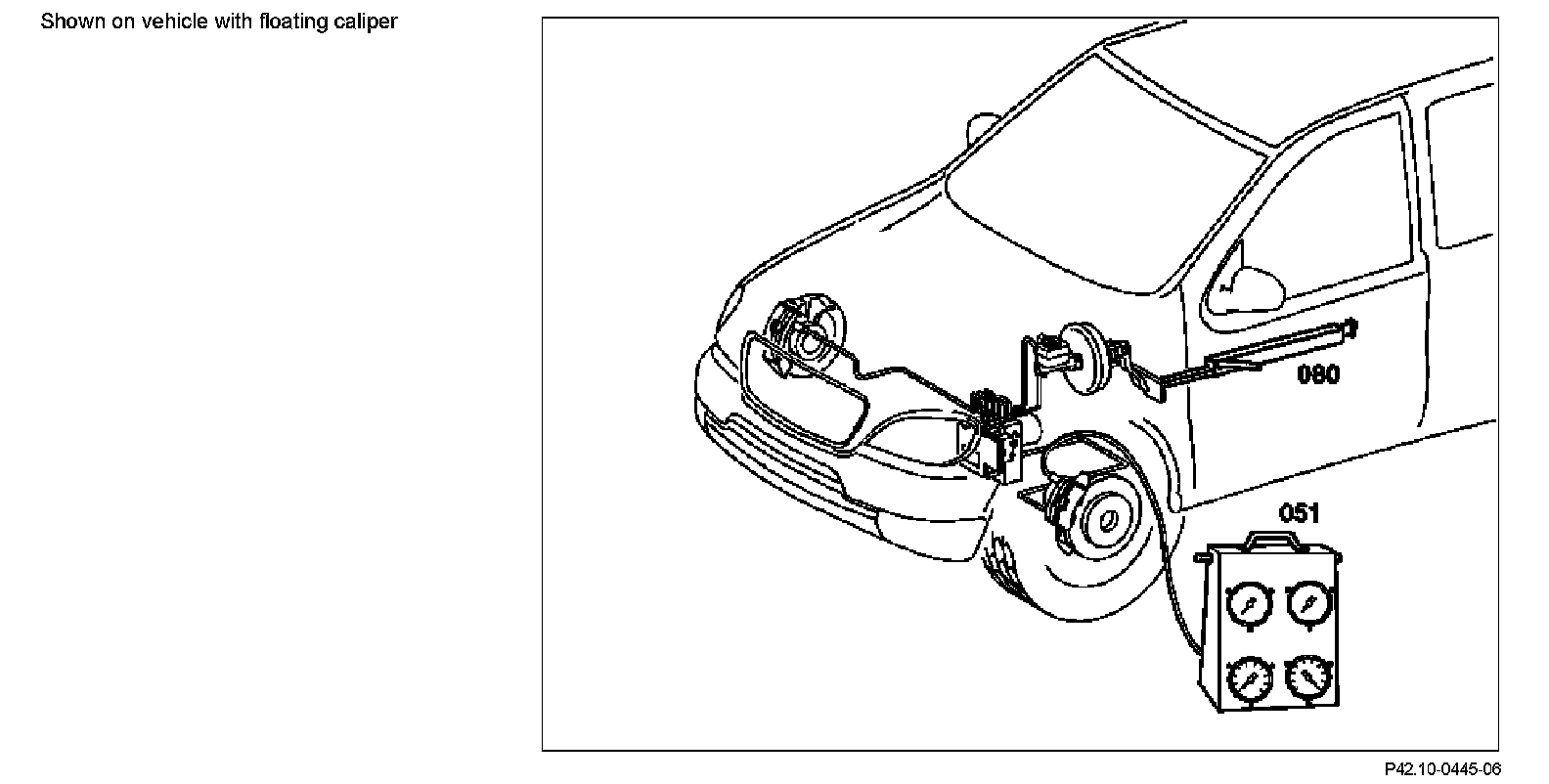

Checking braking system for leaks using pressure tester

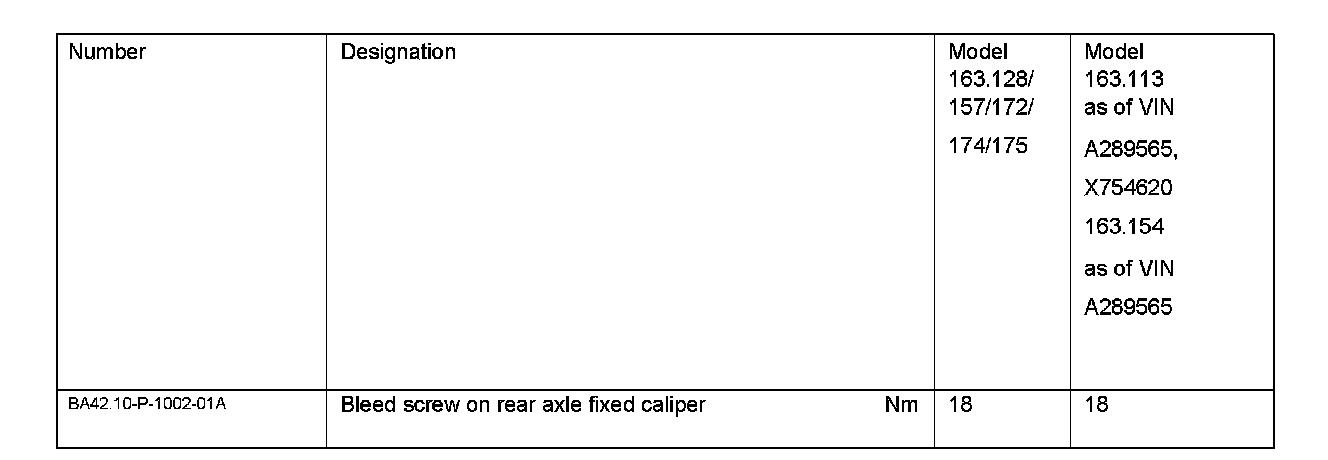

Fixed caliper at rear:
