GF80.20-P-3005GH Locking With Remote Control Key, Function

GF80.20-P-3005GH Locking With Remote Control Key, Function

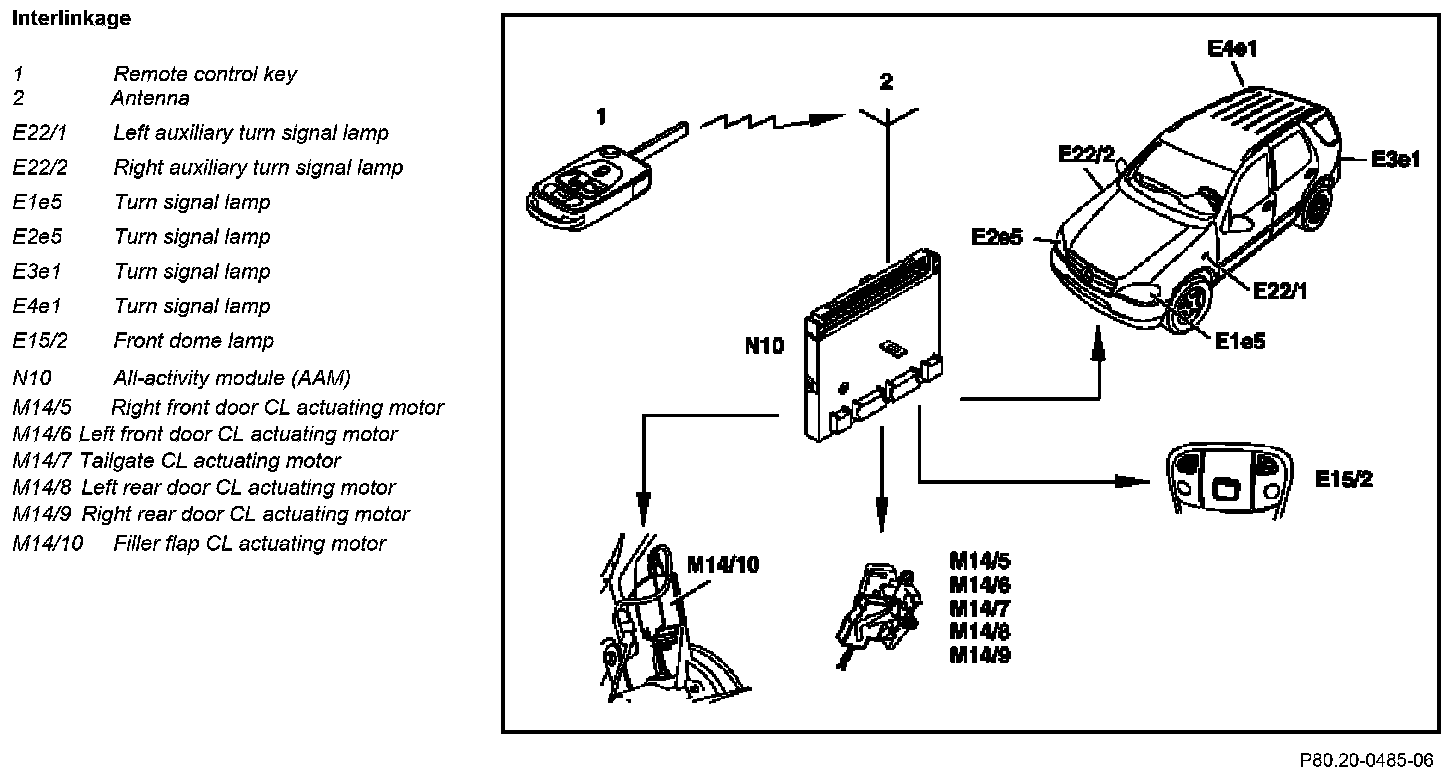

When the "Lock vehicle" button is pressed, the remote control key transmits a radio frequency signal. This signal contains the code for checking access authorization and the instruction to lock the vehicle. In the vehicle, the signal is received via the antenna by the receiver in the all-activity module (AAM) (N10). The AAM decodes the signal and checks the access authorization. If the code is valid, all doors which are closed are locked electrically by the AAM. Moreover, the central locking switch (S21s10) is disabled.

If the vehicle is locked completely, the anti-theft alarm (ATA) is activated.
- If it is not possible to lock one of the doors, the AAM first unlocks all doors again and then starts one new attempt. If the door can again not be locked during the second attempt, the door in question remains unlocked.
- If the remote control key is inserted into the ignition lock after locking with the remote control key, the central locking switch (S21s10) in the center console is reactivated. The central locking then has the same status as after locking with this switch.

Confirmation with turn signal lamps (as of 12.99):
When the vehicle is locked completely with the remote control key all turn signal lamps flash three times as confirmation.

If the vehicle cannot be locked completely, this confirmation is not given.
