AR68.10-P-1030GH Remove/Install Center Section of Instrument Panel

AR68.10-P-1030GH Remove/Install Center Section of Instrument Panel







Remove/Install
1 Remove radio (A2)
2.1 Remove stowage compartment (3)

NOTE: Only if present

3 Pry off top retaining clips (arrows) at center section of instrument panel (2) out of instrument panel (1)

NOTE:
- Risk of cracks and fracture!
- Put long wedge (5) behind center section of instrument panel (2) on the top edges of the opening and carefully pry off top retaining clips (arrows).

- Long Wedge: See Special Tools below.

4 Insert long wedge (5) into gap between instrument panel center section (2) and instrument panel (1) and pull down to rotary switches
- Long Wedge: See Special Tools below.

5 Carefully pry off bottom retaining clips (arrows) at center section of instrument panel (2) out of instrument panel (1)

NOTE: Risk of cracks and fracture!

- Long Wedge: See Special Tools below.

6.1 Pull off interior temperature sensor intake hose (4)

NOTE: Up to VIN A289564, X754619.

7 Unplug all connectors from center section of instrument panel (2)
8.1 Separate connectors from AAC pushbutton control module

NOTE: As of VIN A289565, X754620.

9 Remove instrument panel center section (2)
10 Install in the reverse order

Special Tools

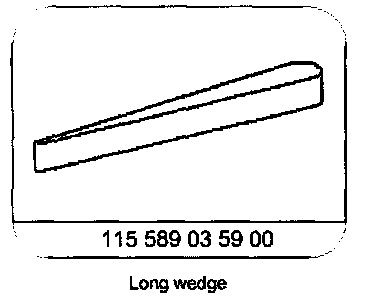

Long Wedge P/N # 115 589 03 59 00:
