AR68.20-P-2370GH Remove/Install Armrest Lid on Center Console

AR68.20-P-2370GH Remove/Install Armrest Lid on Center Console

Removing, installing
1.1 Remove storage compartment (1)

NOTE: Up to 31 08 01 Unclip stowage compartment (1) from stowage box (3)

2.1 Unscrew screws (2) and remove stowage box (3)

NOTE: up to 31 08 01

3 Unscrew screws (4)
4 Remove armrest lid (5)

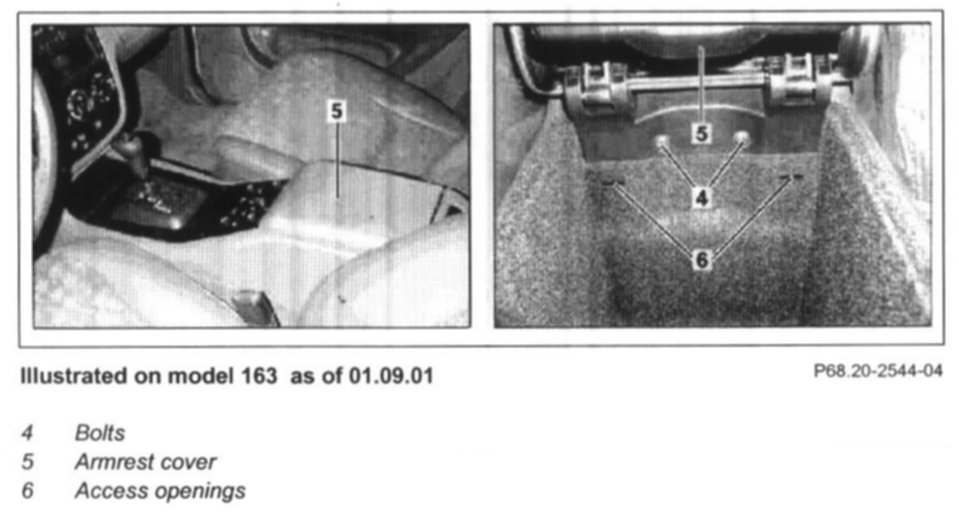

NOTE: As of 01 09 01 Insert long wedge into access openings (6) and loosen retaining lugs

- Long wedge: See Special Tools below.

5 Install in the reverse order

Special Tools

AR68.20-P-2370GH Remove/Install Armrest Lid on Center Console

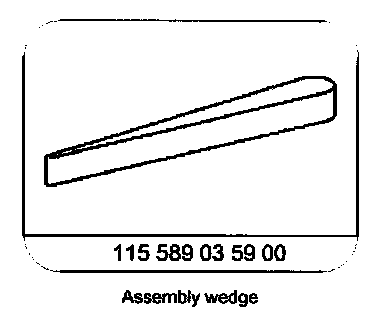

Assembly Wedge P/N # 115 589 03 59 00:
