AR68.20-P-2000GH Remove/Install Center Console

AR68.20-P-2000GH Remove/Install Center Console











Remove, Install
1 Remove armrest cover from center console
2 Remove cover on gearshift lever

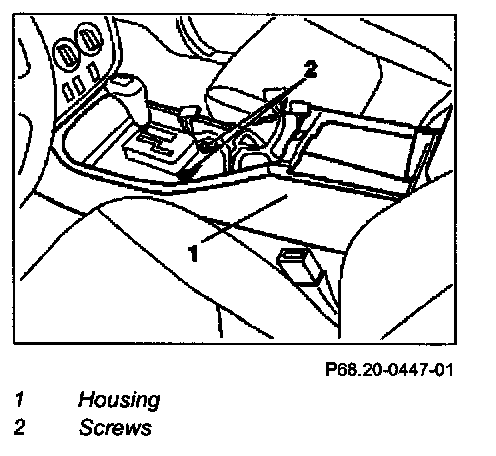

3 Unscrew screws (2) from front of housing (1)
4.1 Disconnect electrical connector on right and left rear power window switches (S21/15s1 and 821/15s2)

NOTE: Up to 31.08.01. Remove wiring harness from mount.

4.2 Disconnect connector from floor in center console

NOTE: Up to 31.08.01: Remove wiring harness from mount.

5 Unscrew screws (4) from rear of housing (1)
6 Remove housing (1)

NOTE:
- Set selector lever to position N
- Installation: As of 01.09.01, ensure that air duct is installed tightly.

7 Install in the reverse order
