Overhaul

AR68.20-P-2150GI Disassemble/Assemble Center Console
- Models 163.154/174 #A as of 289565
- Models 163.157/175 (all)







Disassembling, assembling

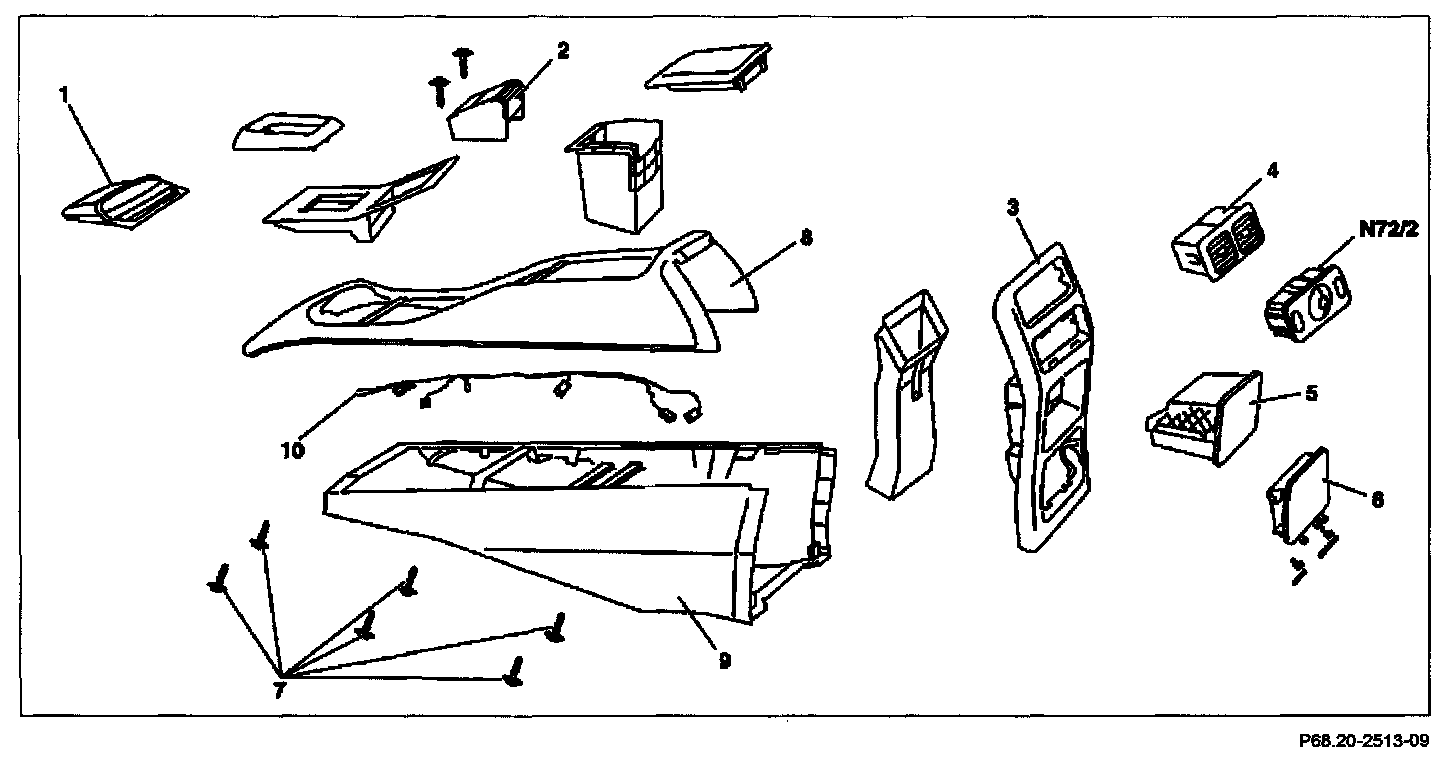

1 Remove center console
2 Place center console on a suitable base
3 Remove ashtray (1) at the front
4 Remove storage compartment (2)
5 Remove center console (3) at the rear
6 Remove rear air nozzle (4)
7 Remove RCP [HBF] control module (N72/2)
8 Remove rear cup holder (5)

NOTE:
- Up to 31.8.01.
- As of 1.9.01.

9 Remove rear ashtray (6)
10 Separate the screws (7) of the center fit console from the upper and lower part

NOTE: 6 bolts.

11 Separate the upper part (8) and lower part (9) of the center console
12 Disconnect wiring harness of the interior from the center console
13 Assemble in reverse order
