Removal and Replacement

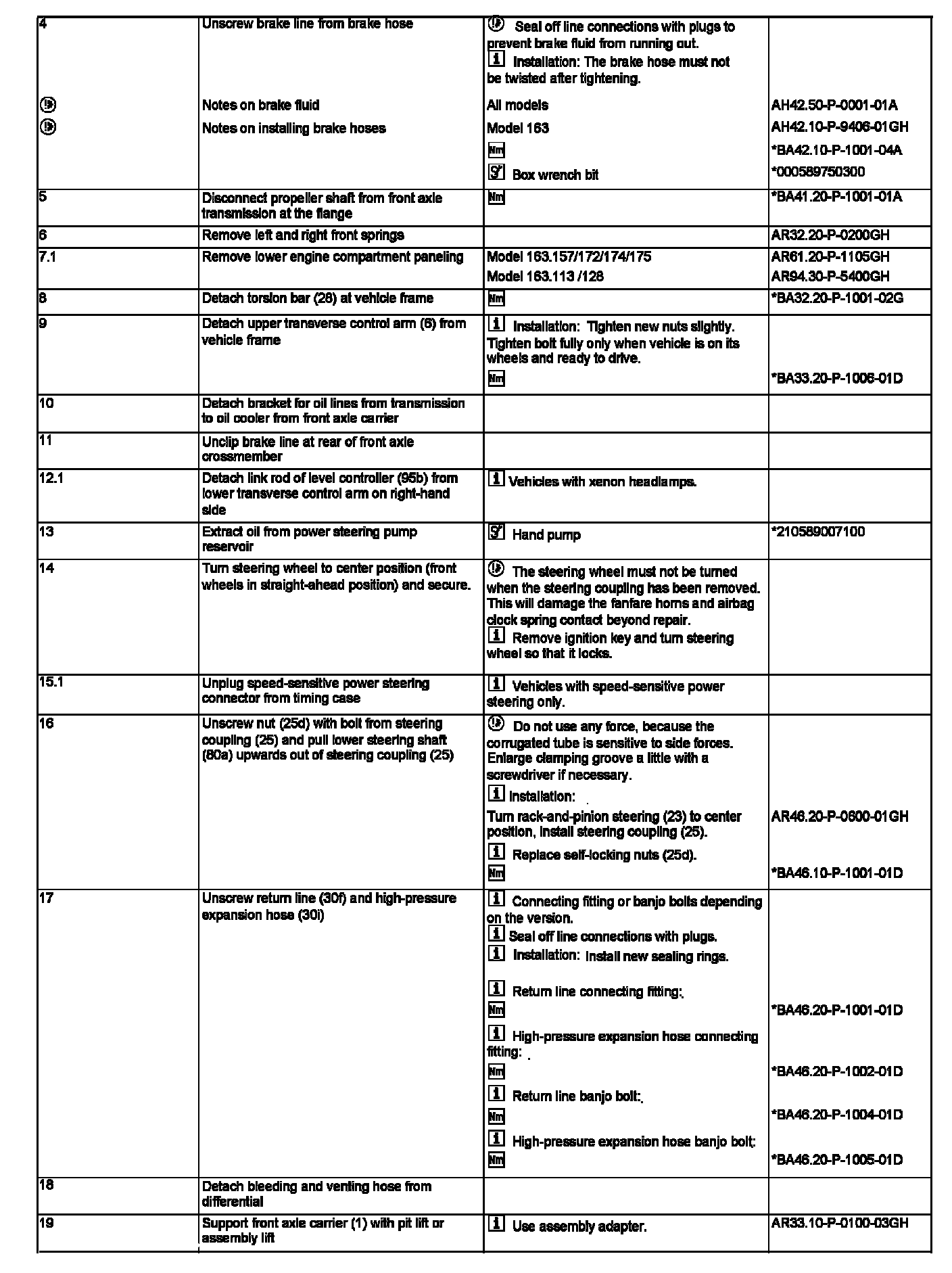

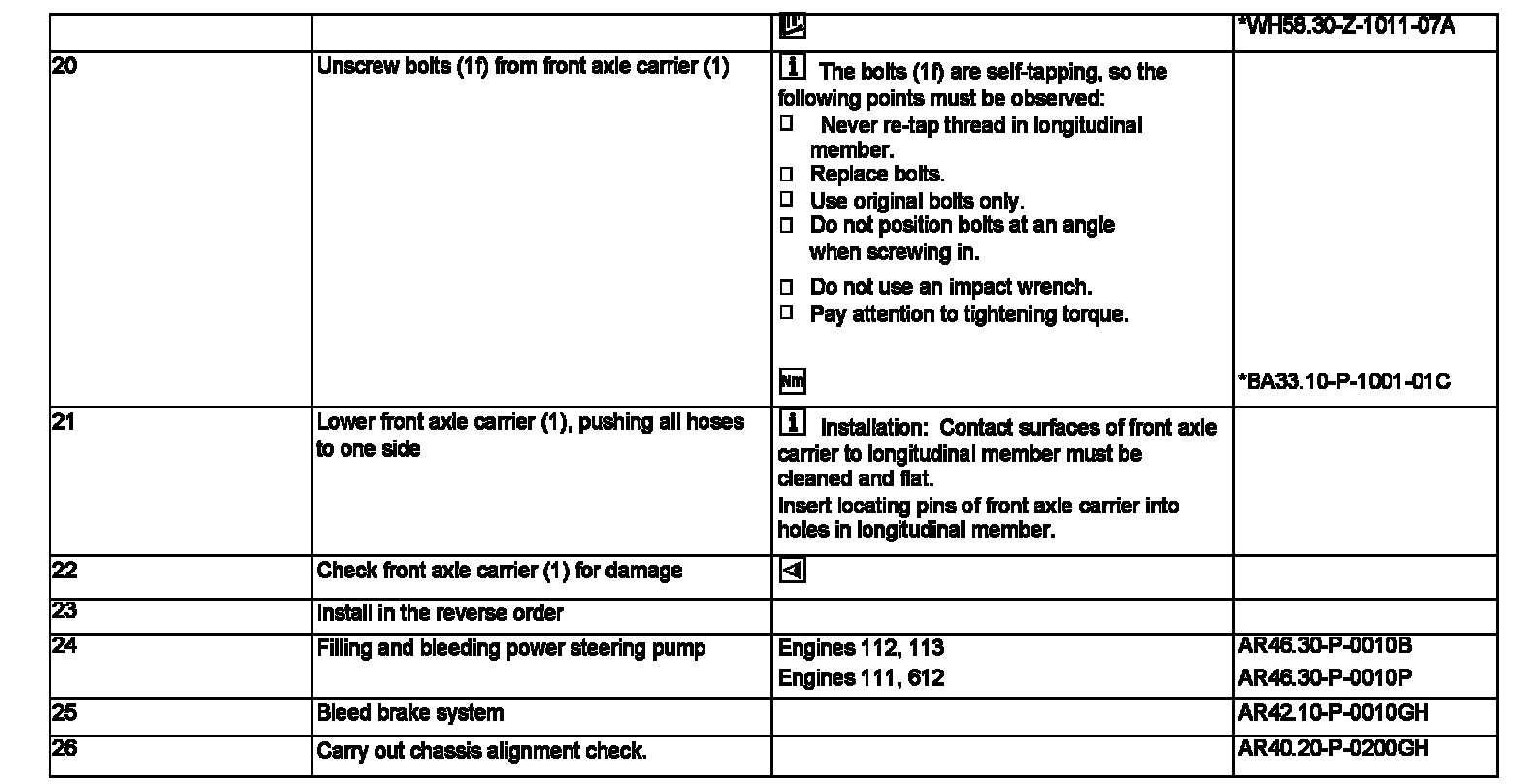

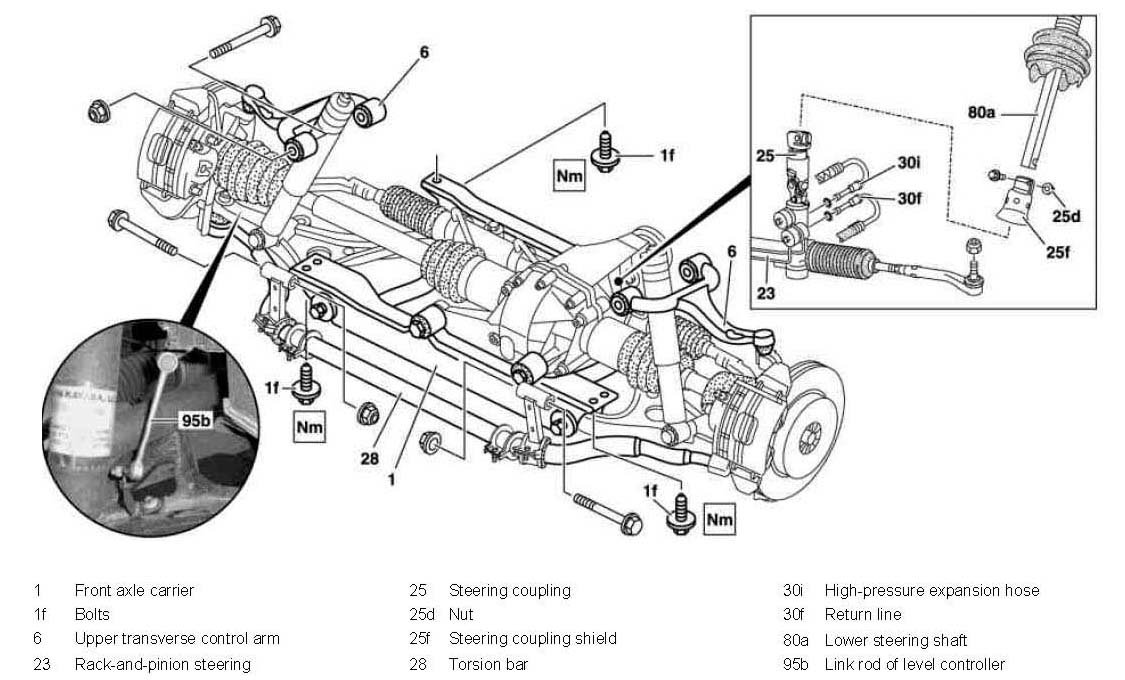

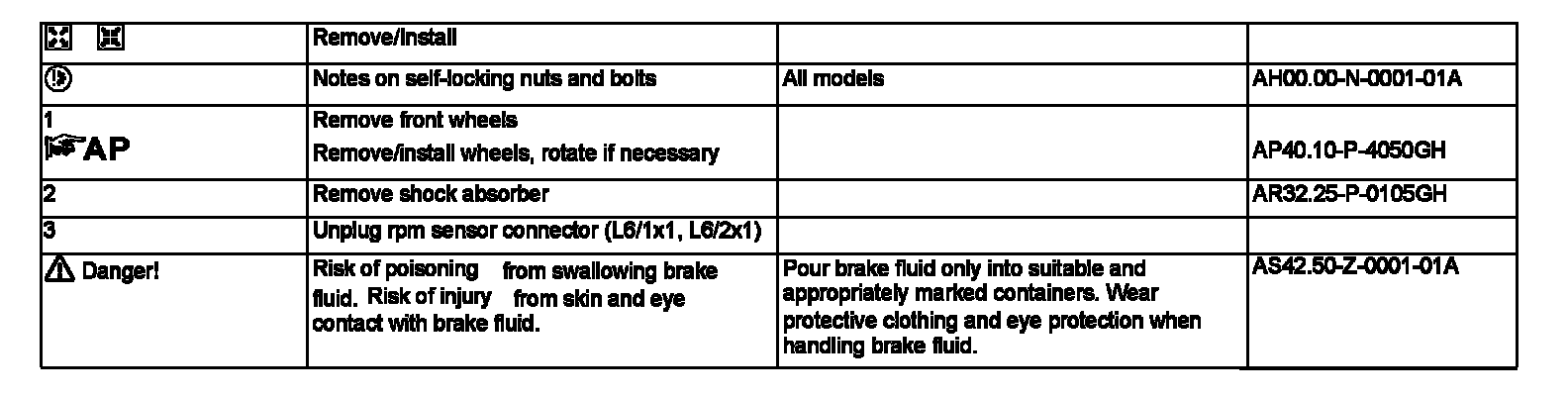

Removing and installing front axle











































Brake lines, brake hoses:
