Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Trunk / Liftgate Latch >> Service and Repair

Trunk / Liftgate Latch: Service and Repair

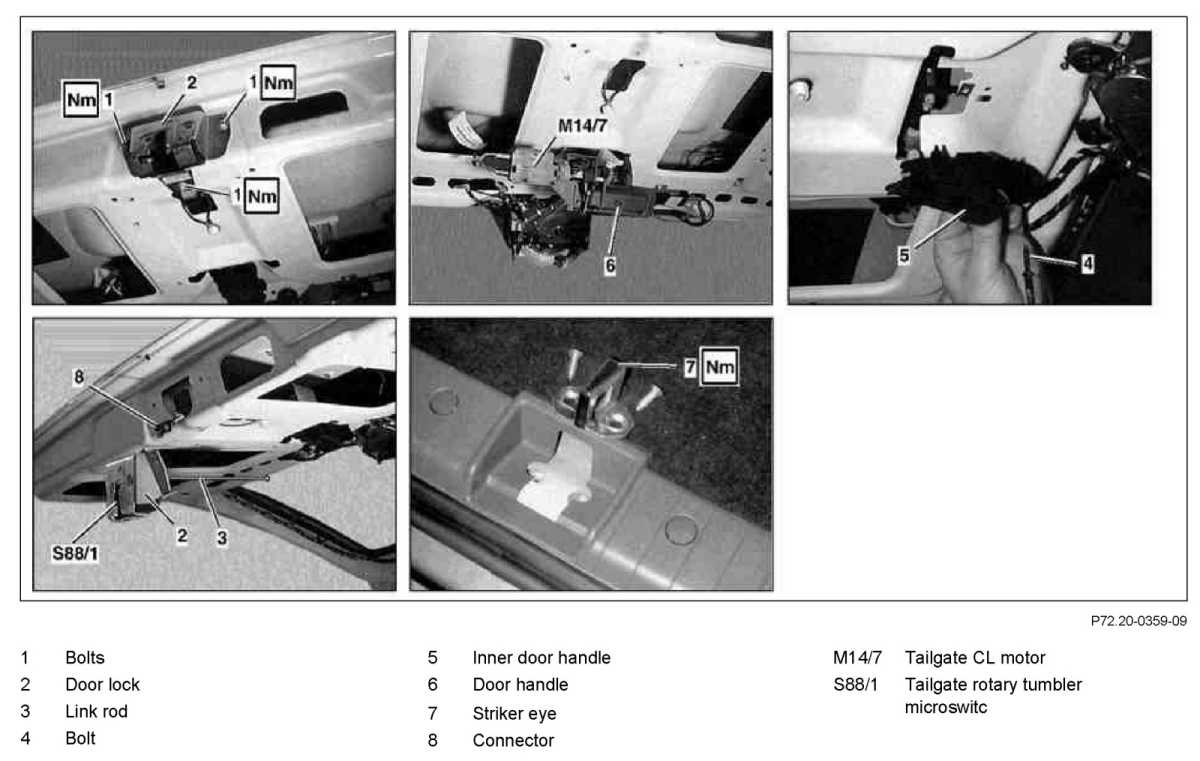

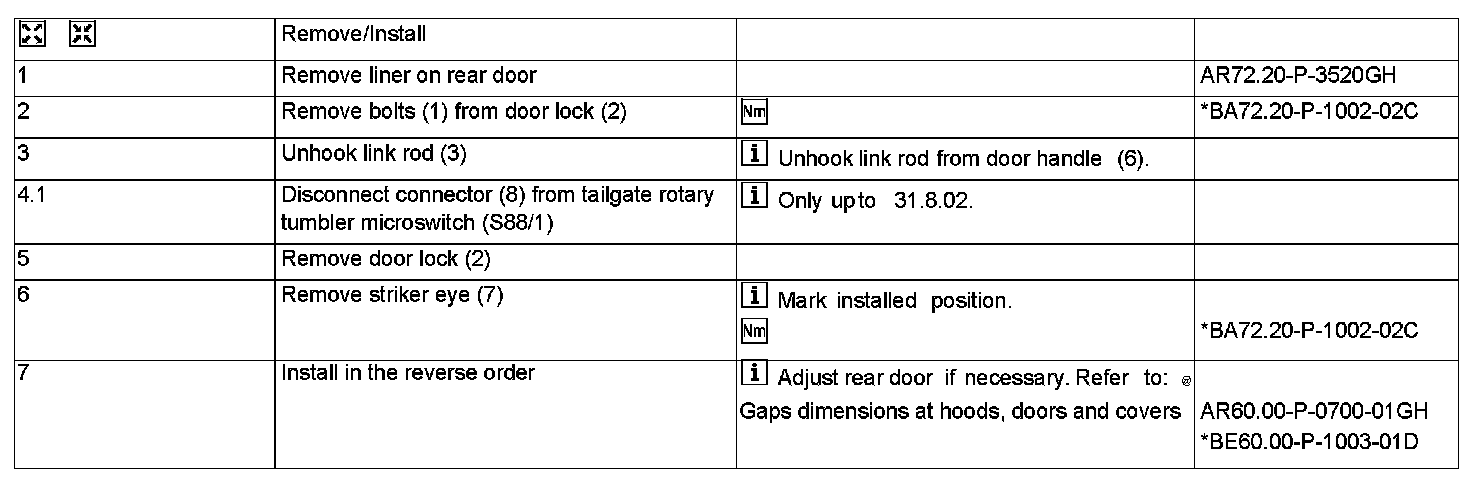

Remove/Install Rear Door Lock

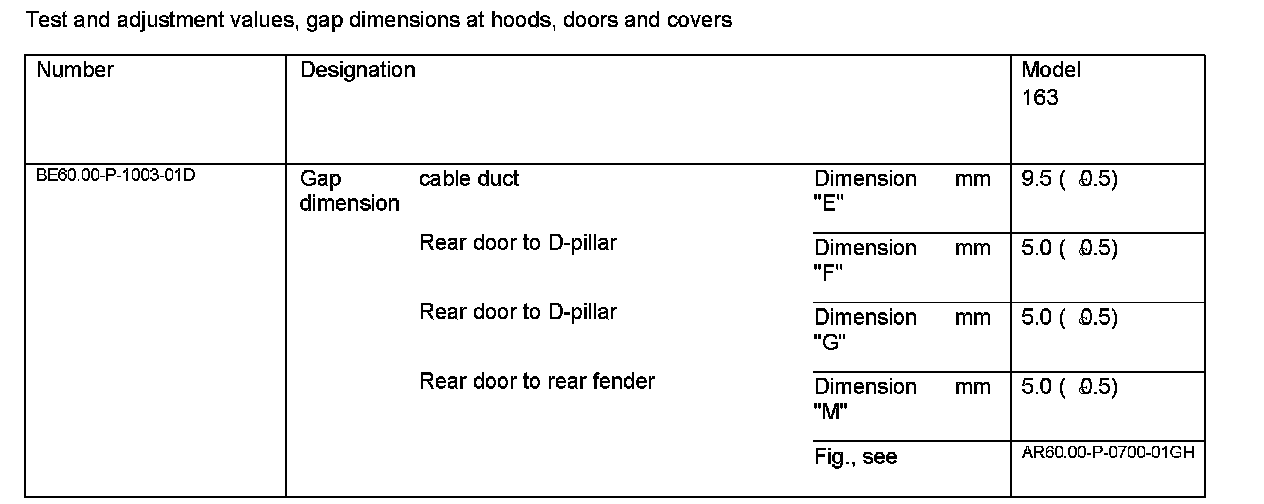

Test And Adjustment Values, Gap Dimensions At Hoods, Doors And Covers


Test and Adjustment Values, Gap Dimensions at Hoods, Doors and Covers:

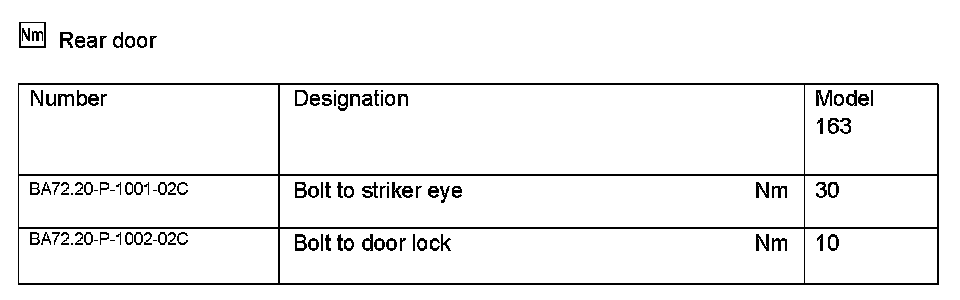

Rear Door


Rear Door:
