Trunk / Liftgate Hinge: Service and Repair
Removing and Installing
Tailgate Hinge

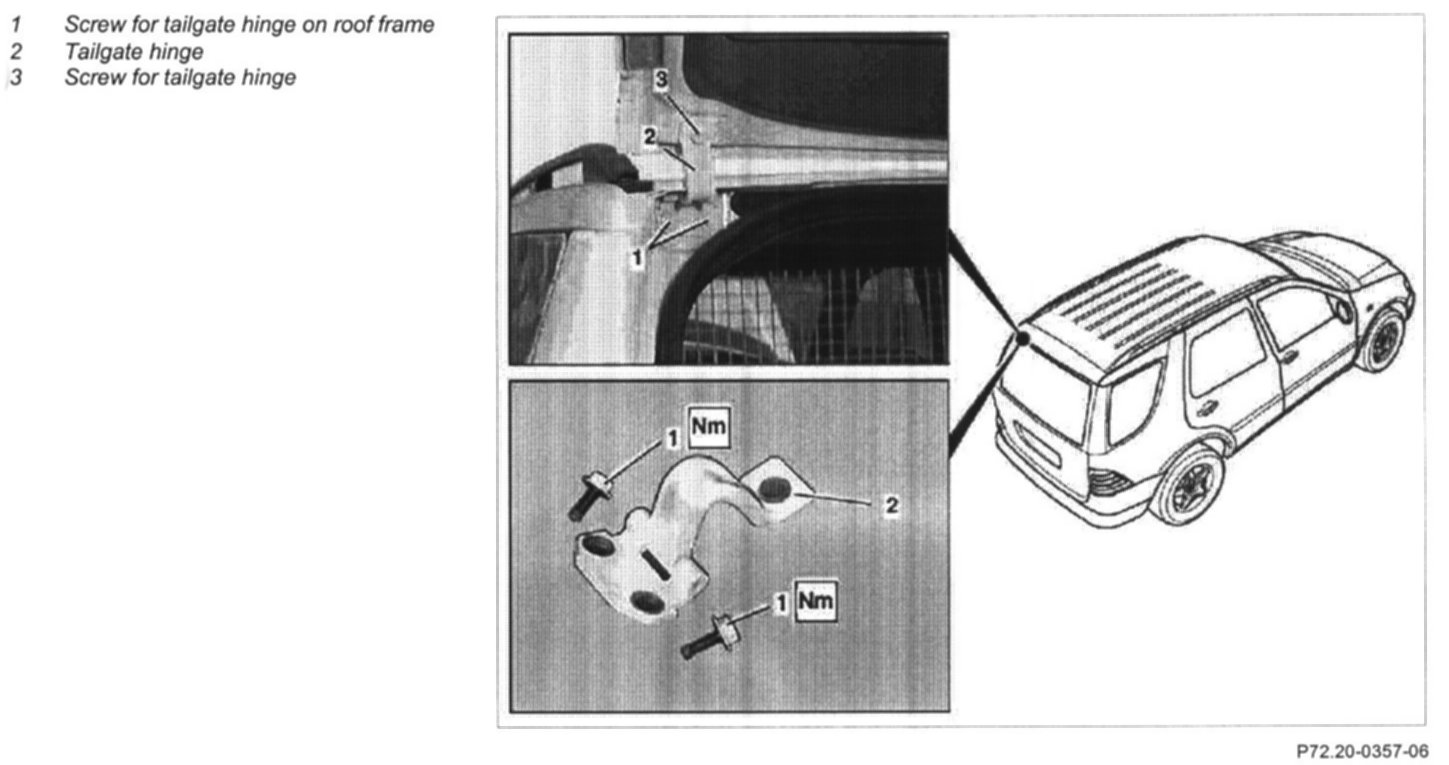

Component Identification:

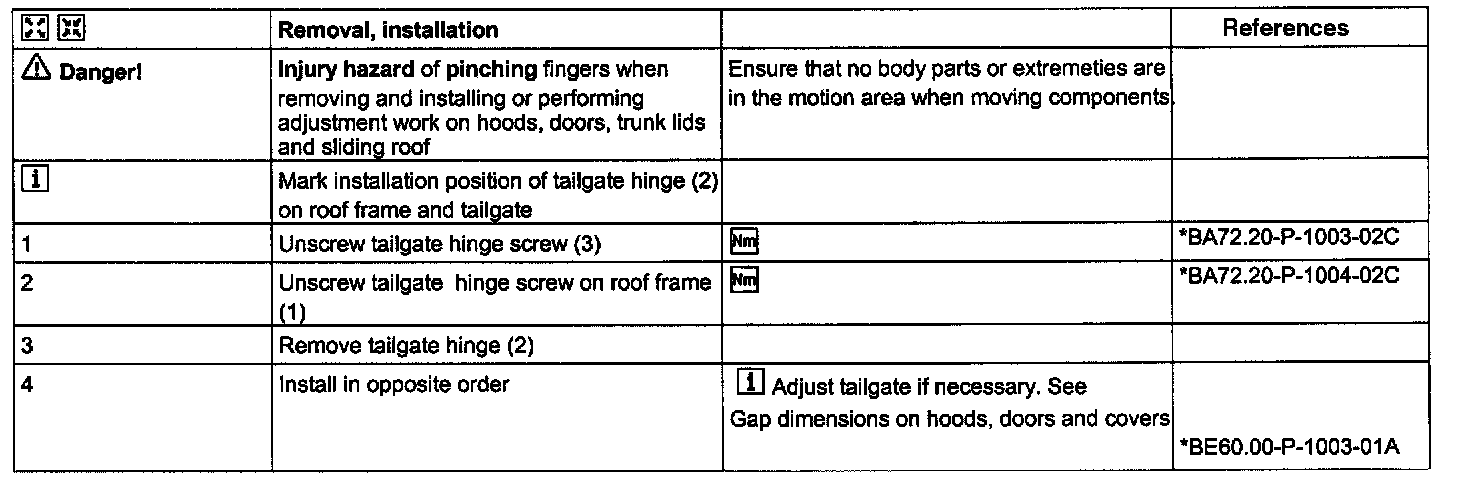

Removal, Installation, Steps 1 - 4:

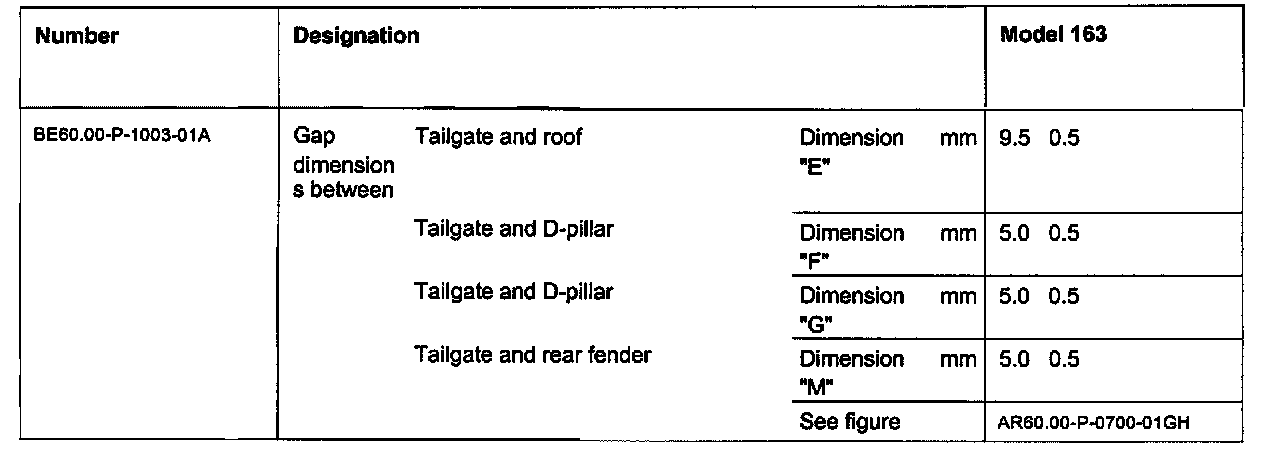

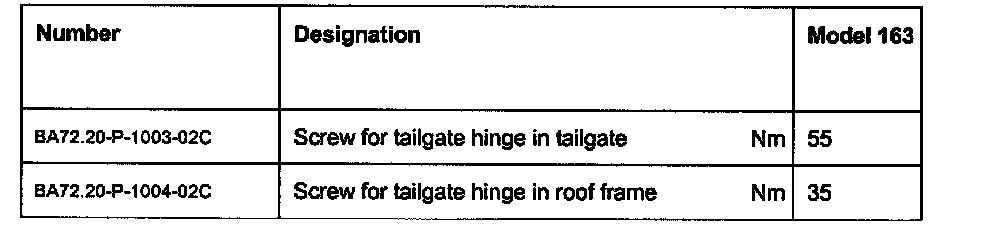

References (BA), Tailgate:
