Trunk / Liftgate Handle: Service and Repair




Removing and Installing Tailgate Handle Strip

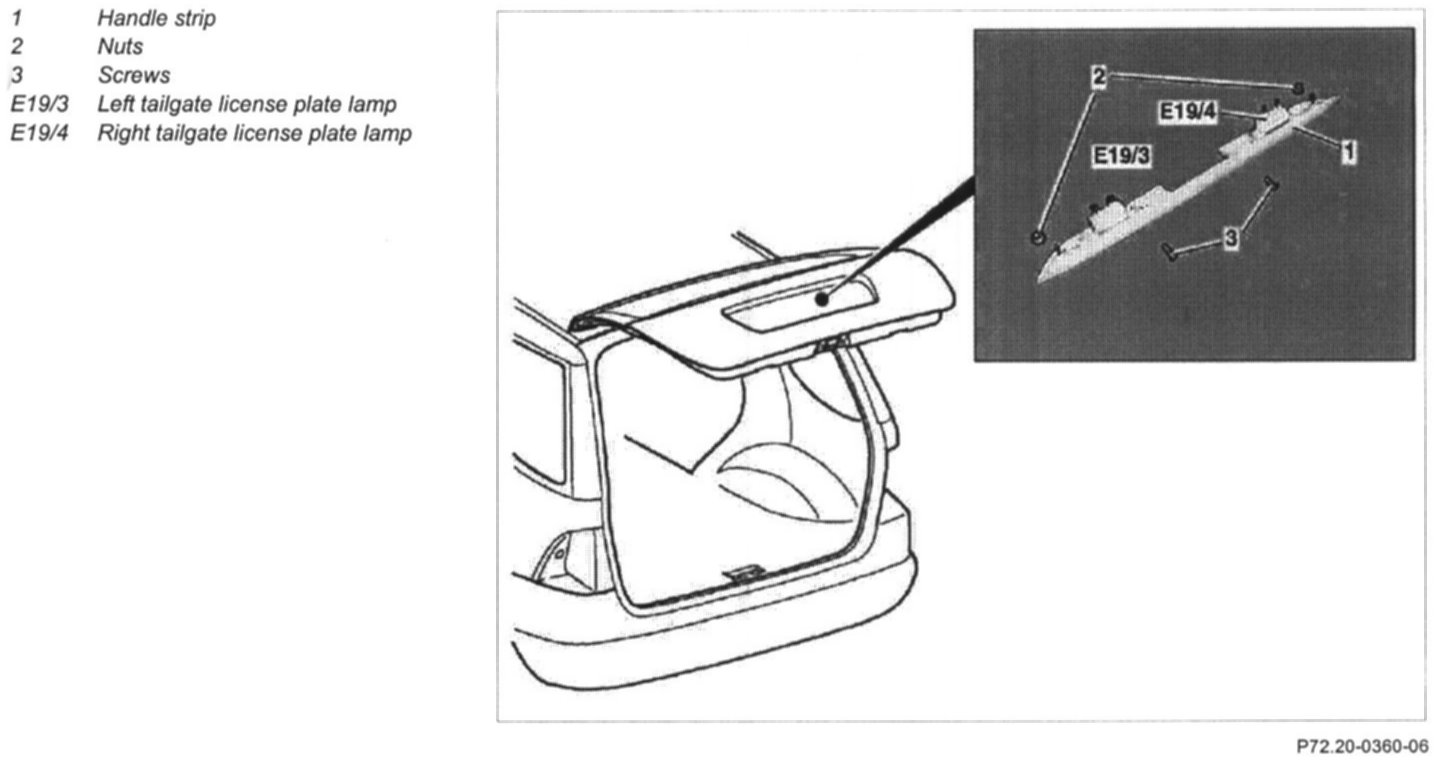

Component Identification:

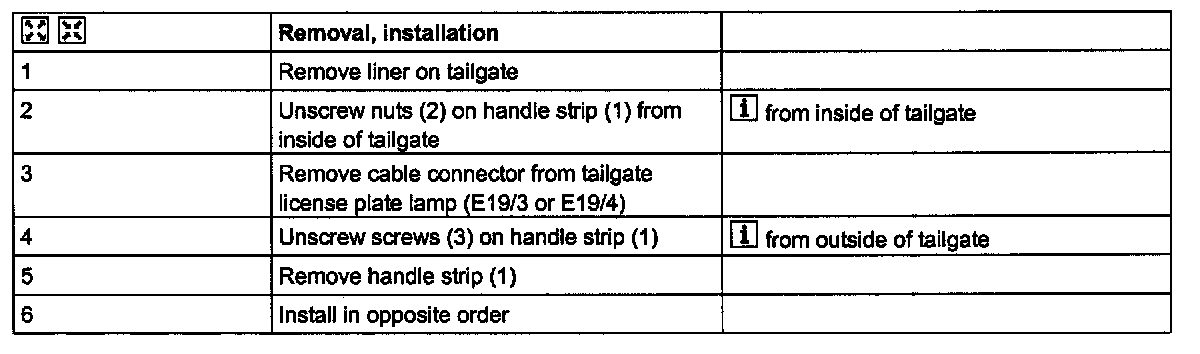

Removal, Installation, Steps 1 - 6:
