AR72.20-P-3520GH Remove/Install Tailgate Liner
AR72.20-P-3520GH Remove/Install Tailgate Liner
AR72.20-P-3520GH Remove/Install
Tailgate
Liner
Component Identification:

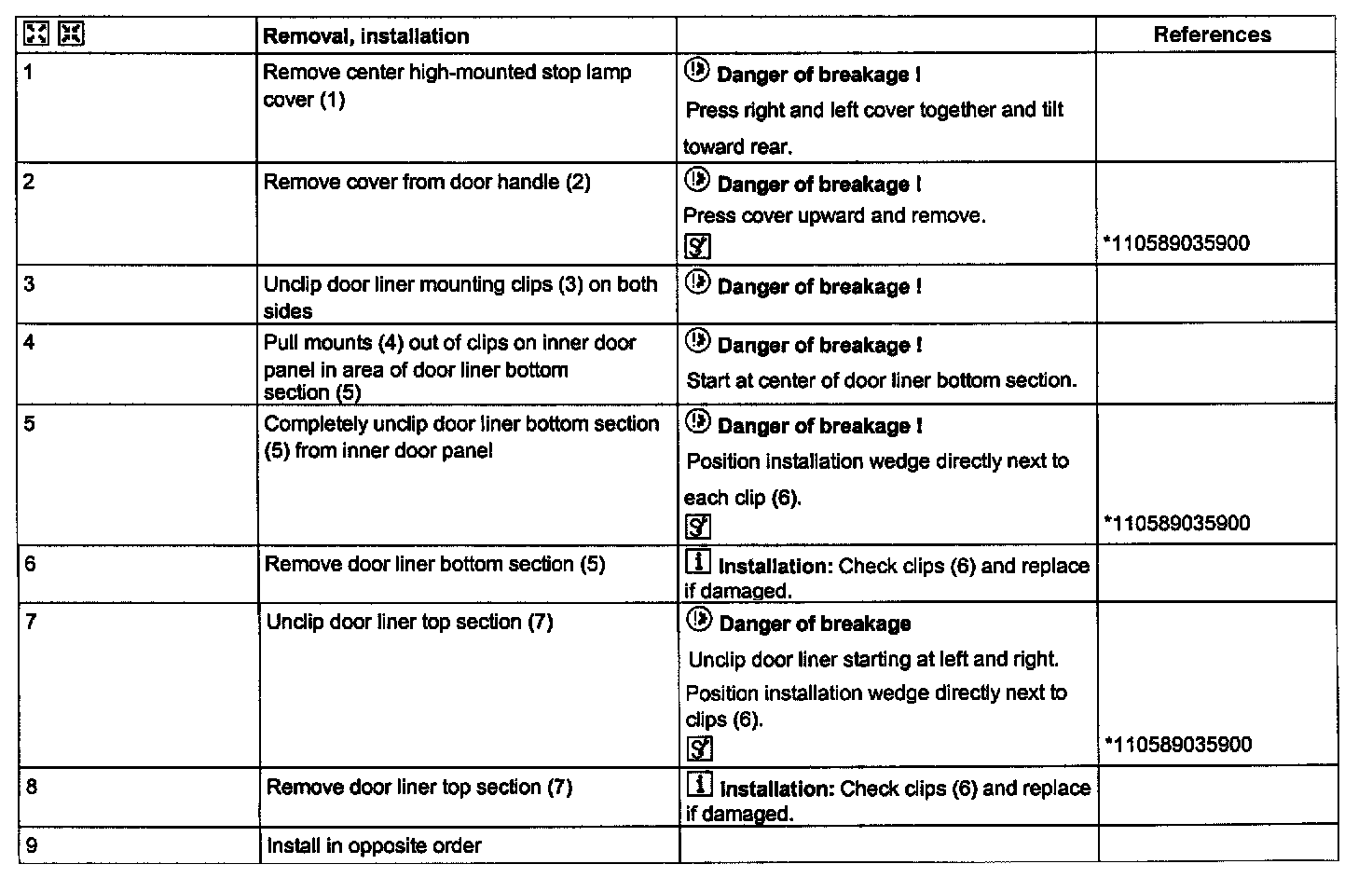

Removal, Installation, Steps 1 - 9:
References, Special Tools:
