Home >> Mercedes Benz Truck >> 2005 >> ML 350 (163.157) V6-3.7L (112.970) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Front Door >> Service and Repair

Front Door: Service and Repair



Remove/install front door

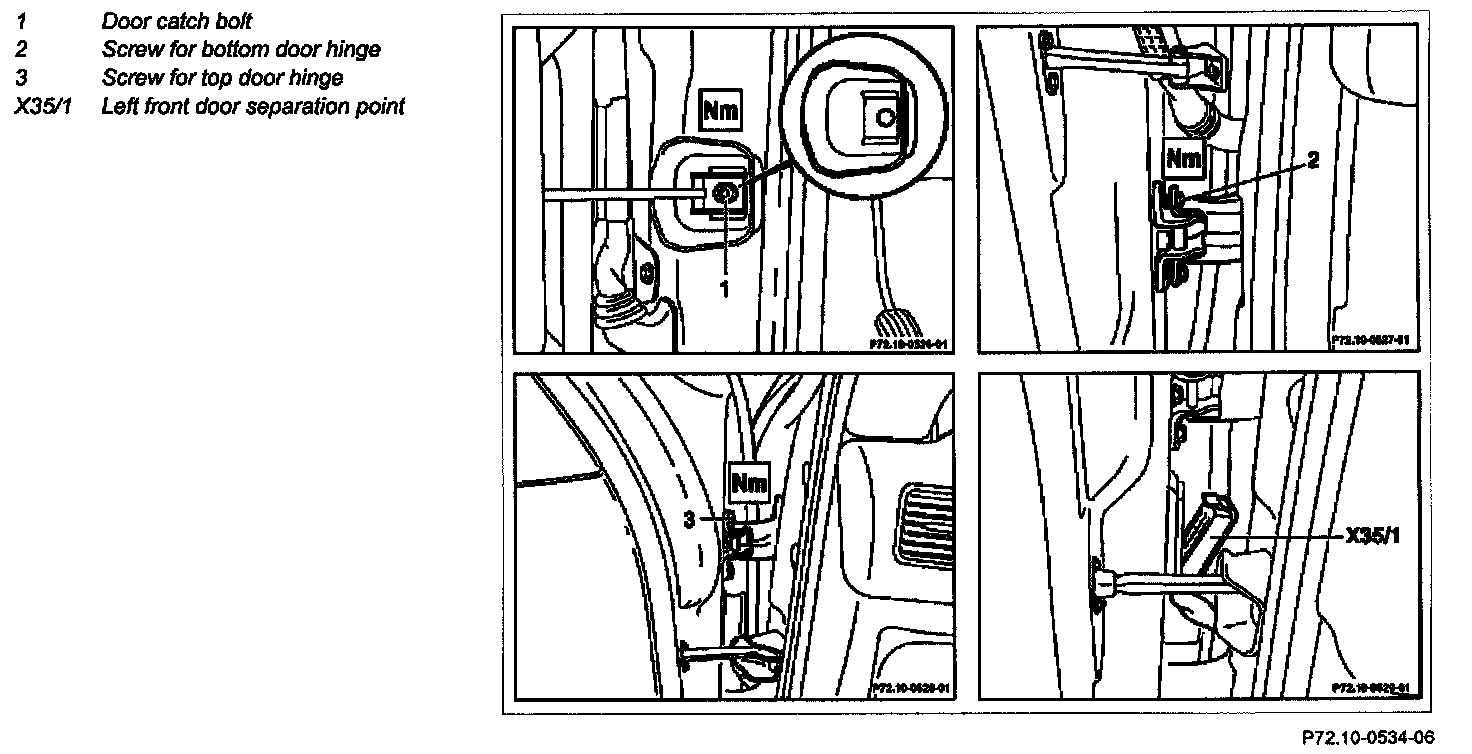

Component Identification, Part 1:






Component Identification, Part 2:

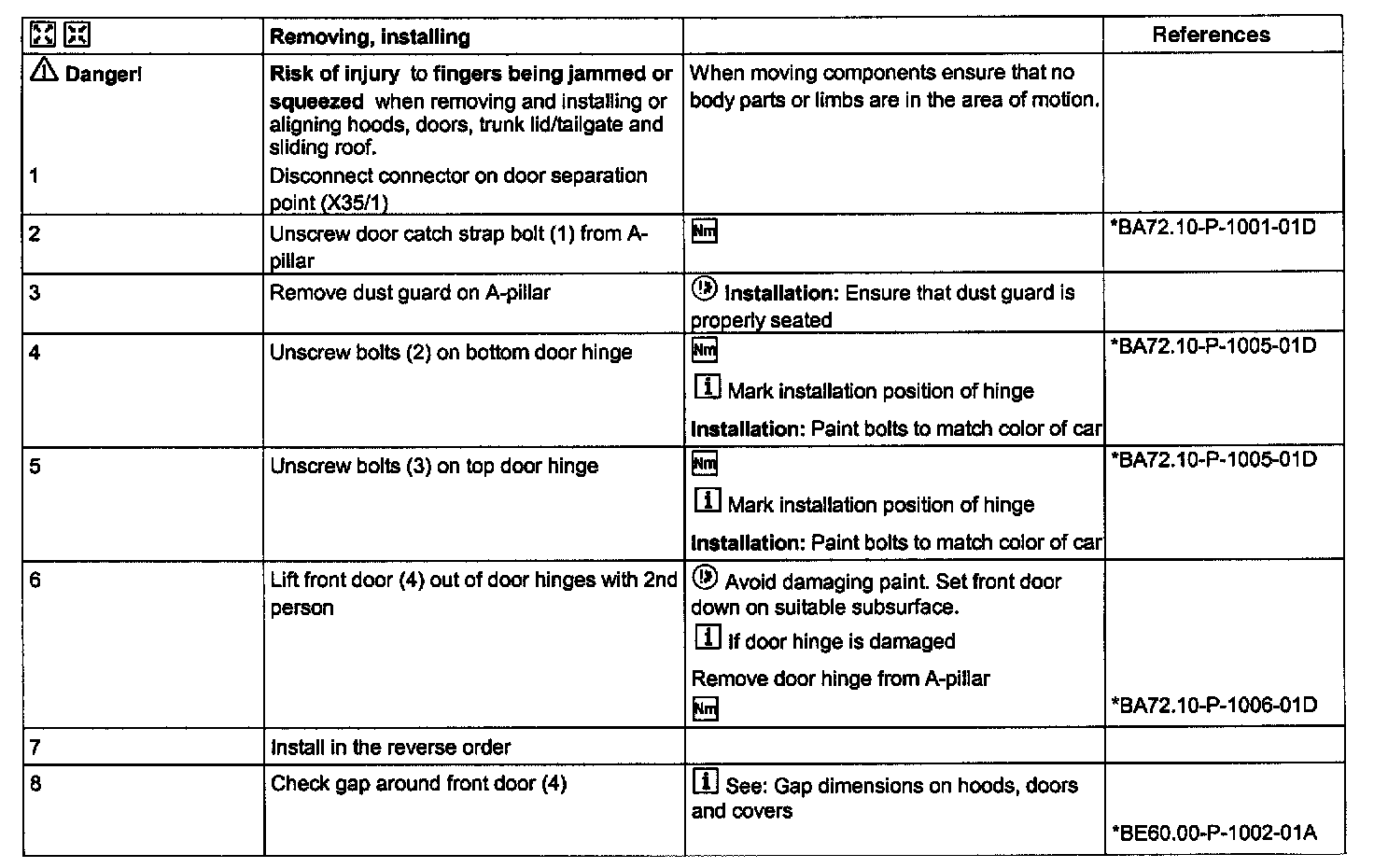

Removing, Installing, Steps 1 - 8:

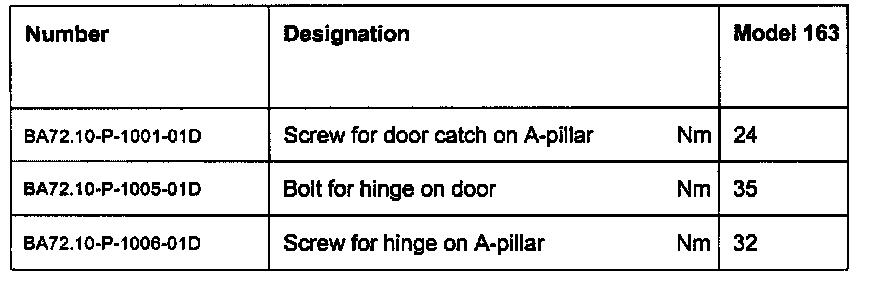

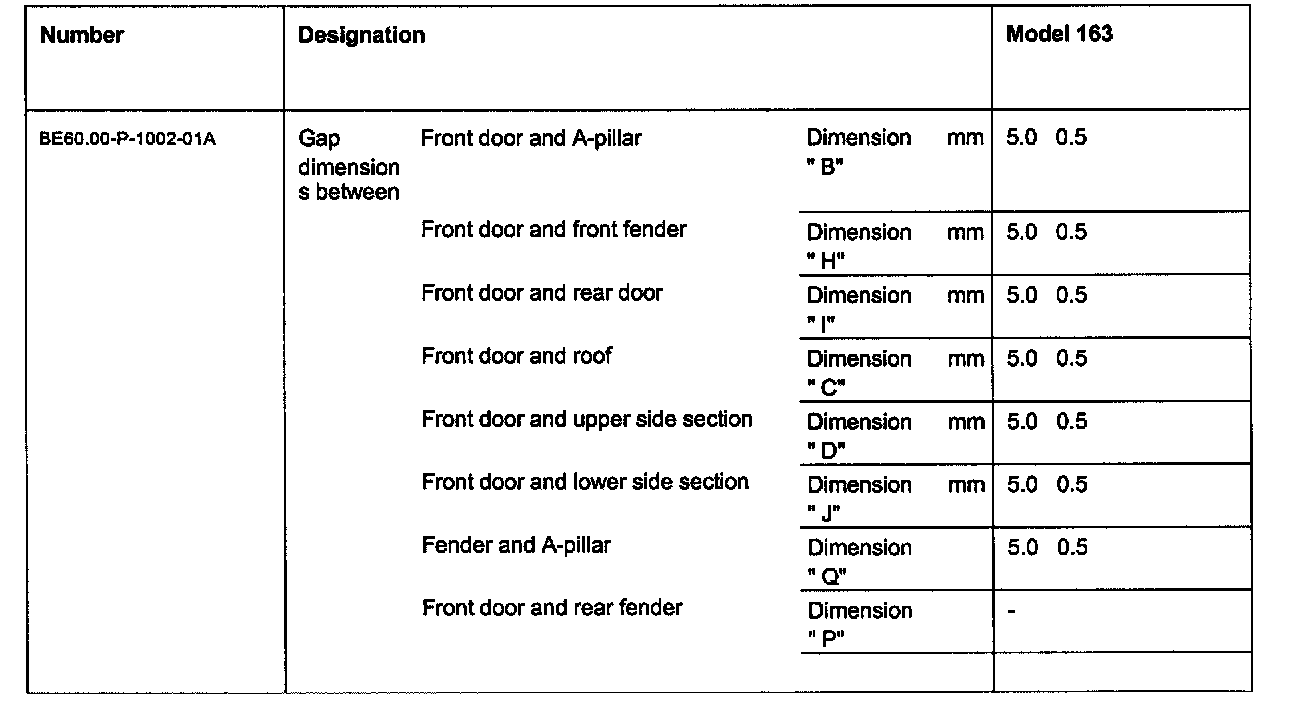

References (BA), Front Door:
