Front Door Panel: Service and Repair
AR72.10-P-1000GH Remove/Install Front Door Liner

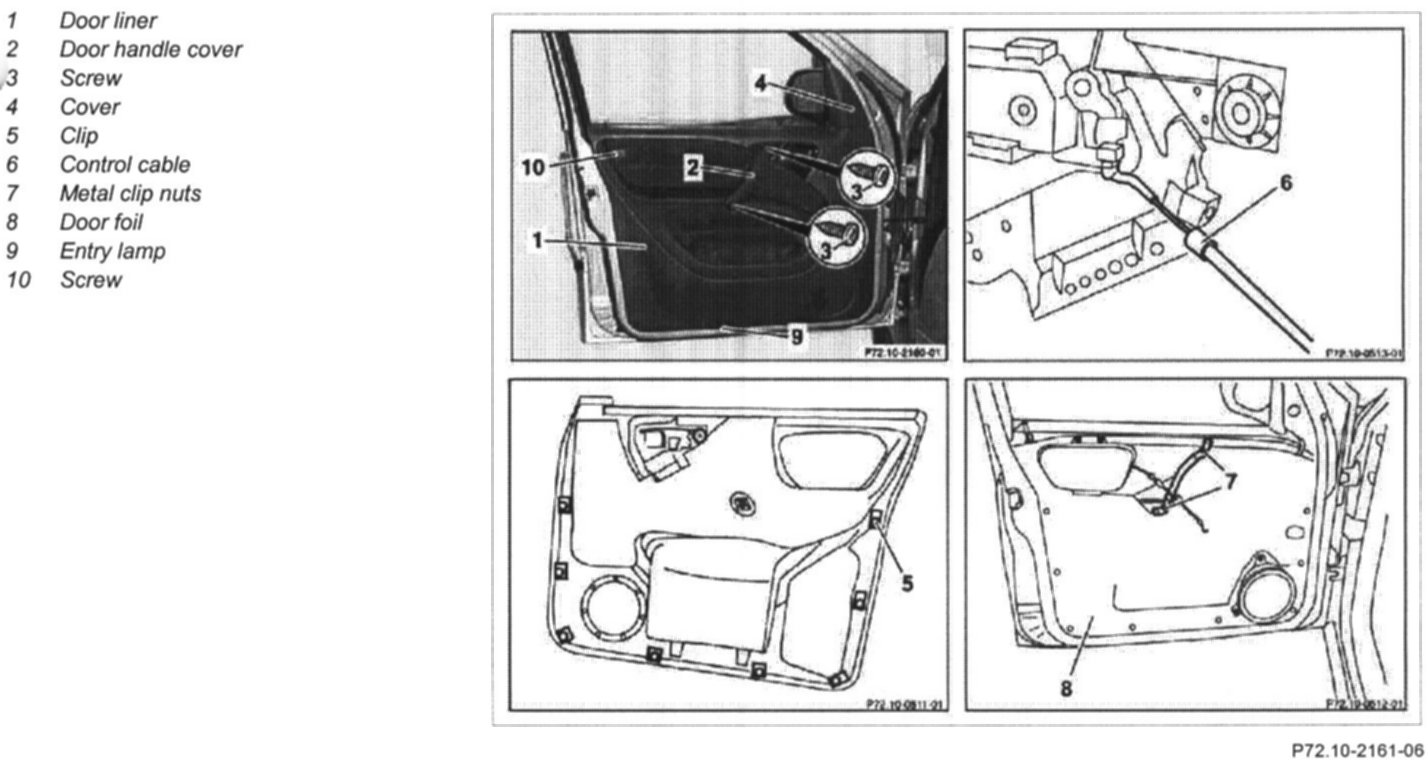

Component Identification:

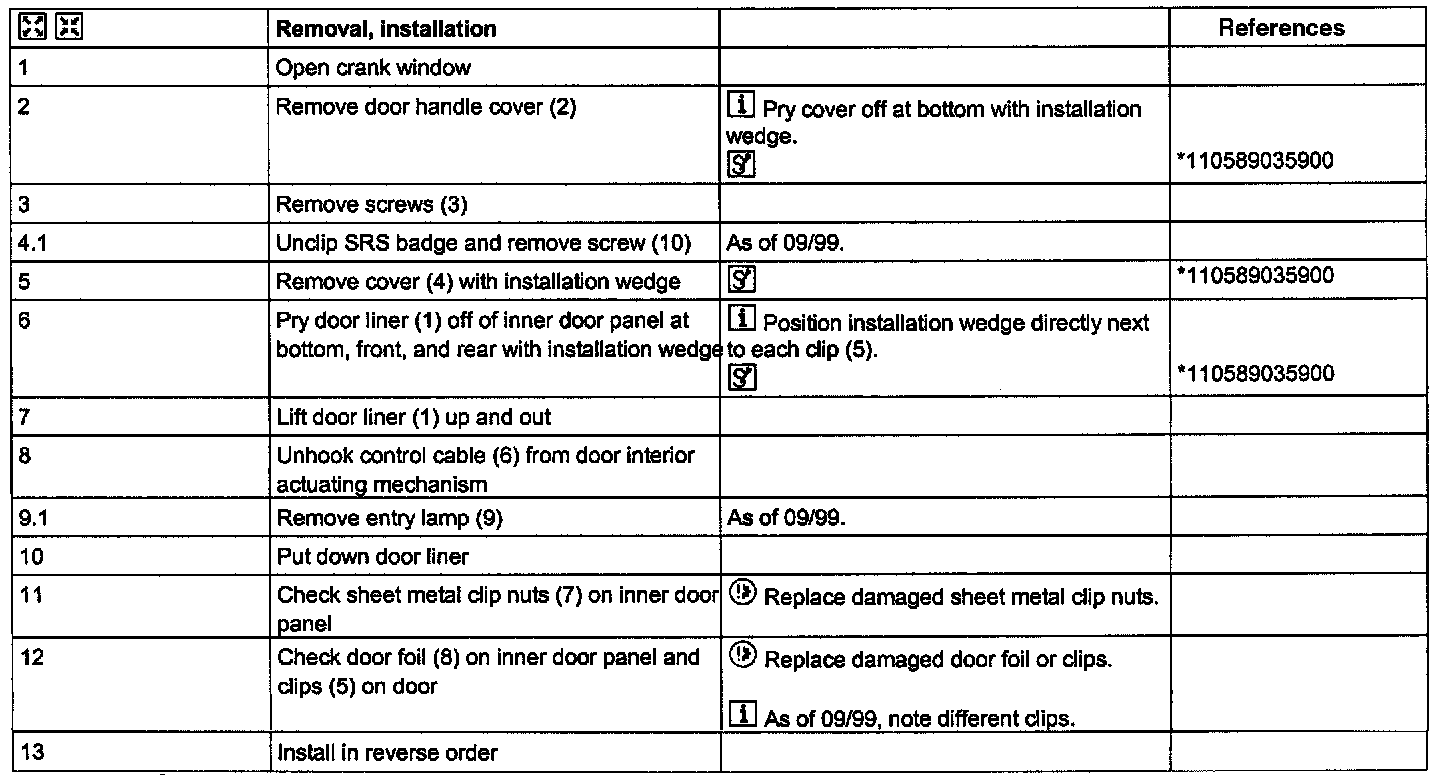

Removal, Installation, Steps 1 - 13:
References, Special Tools:
