Front Door Limiter: Service and Repair

Removing and Installing Door Catch

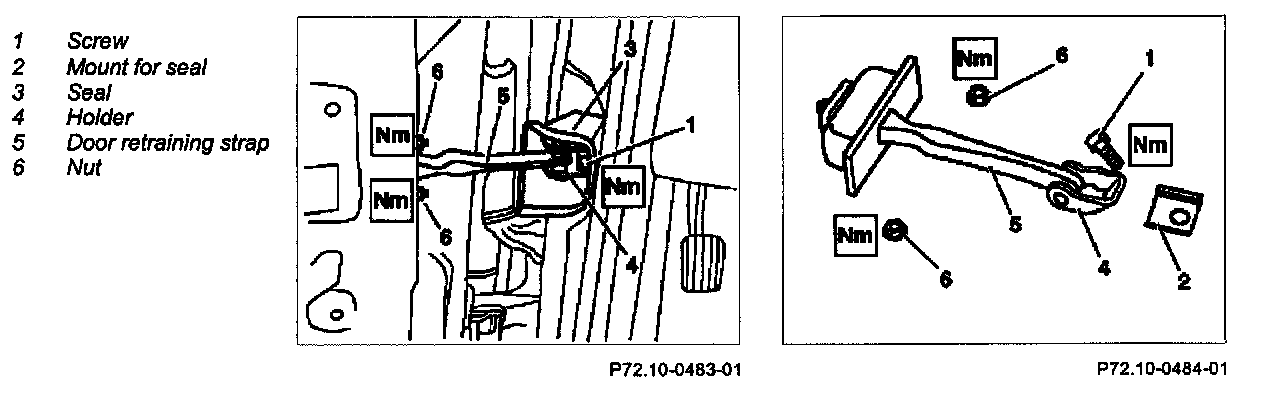

Component Identification:

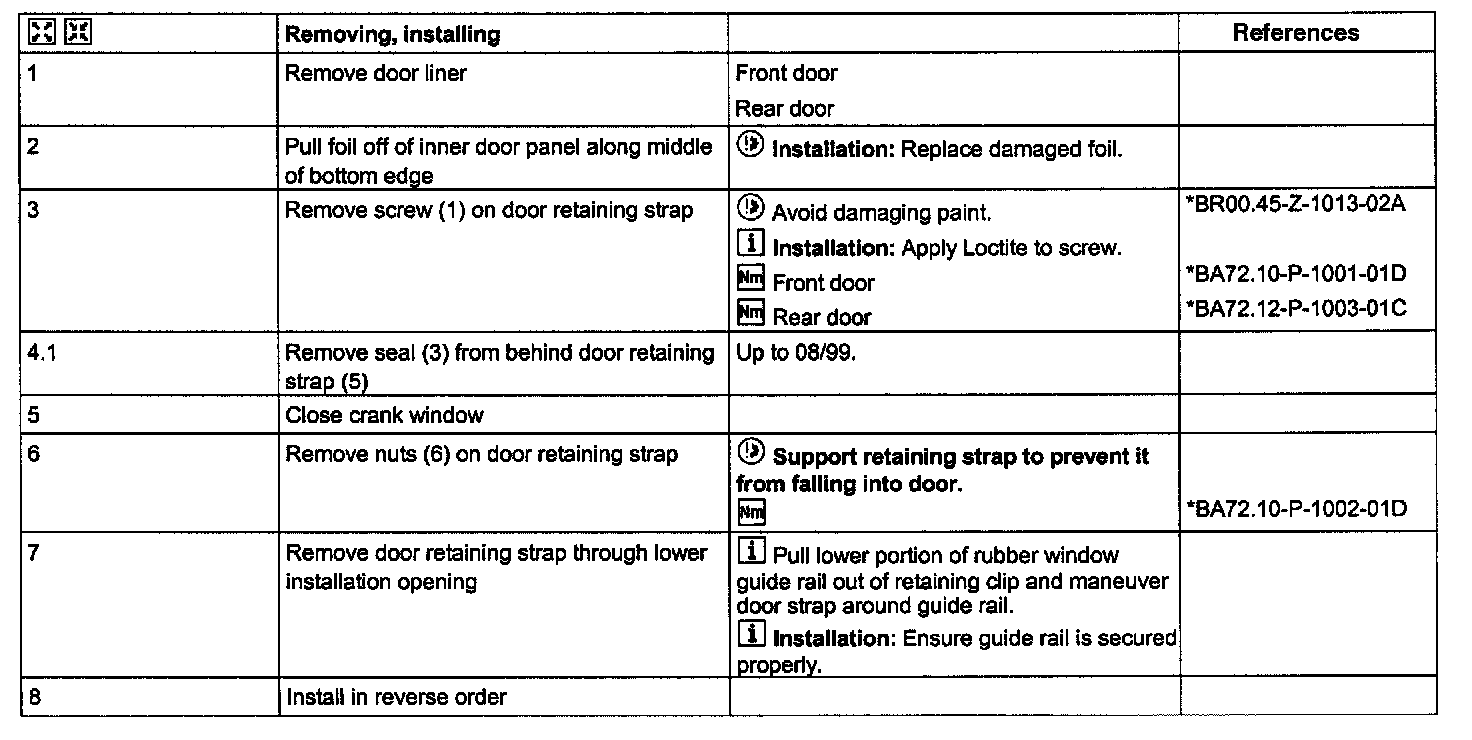

Removing, Installing, Steps 1 - 8:

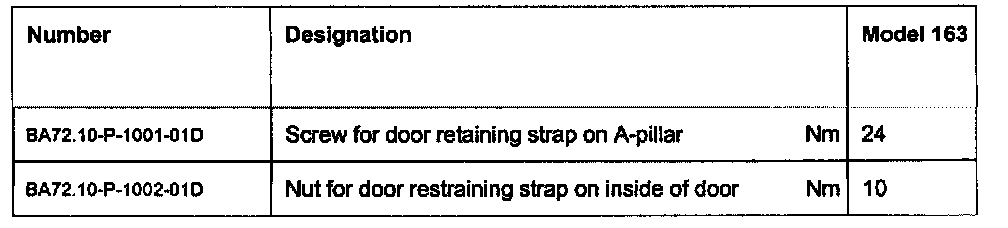

References (BA), Front Door:

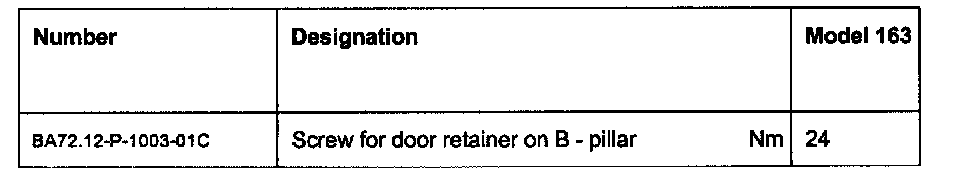

References (BA), Rear Door:

References (BR), Service Products For Repair:
