AR80.35-P-4220GC Remove/Install Folding Key on Remote Control Key

Removing And Installing Folding Key On Remote Control Key










Removing, installing

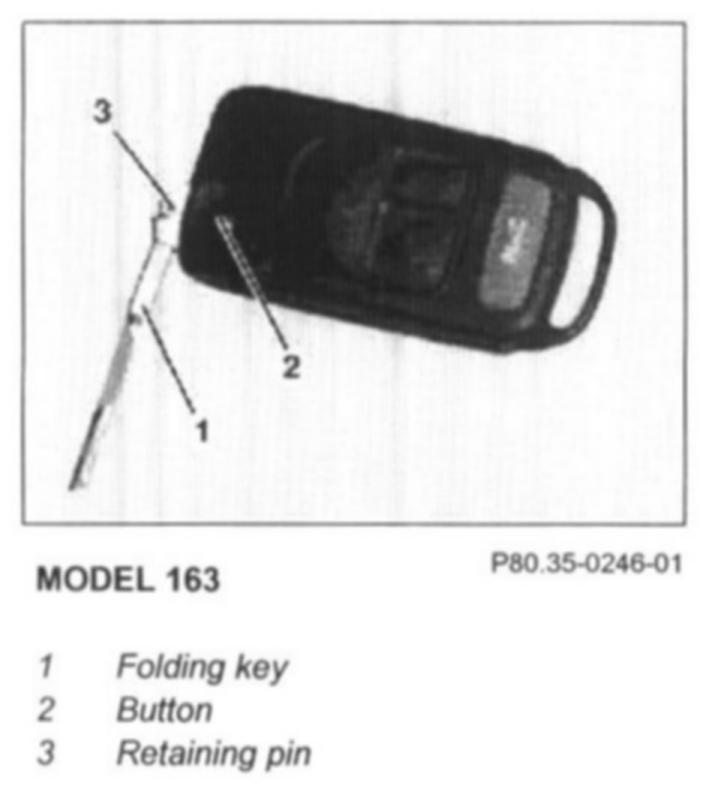

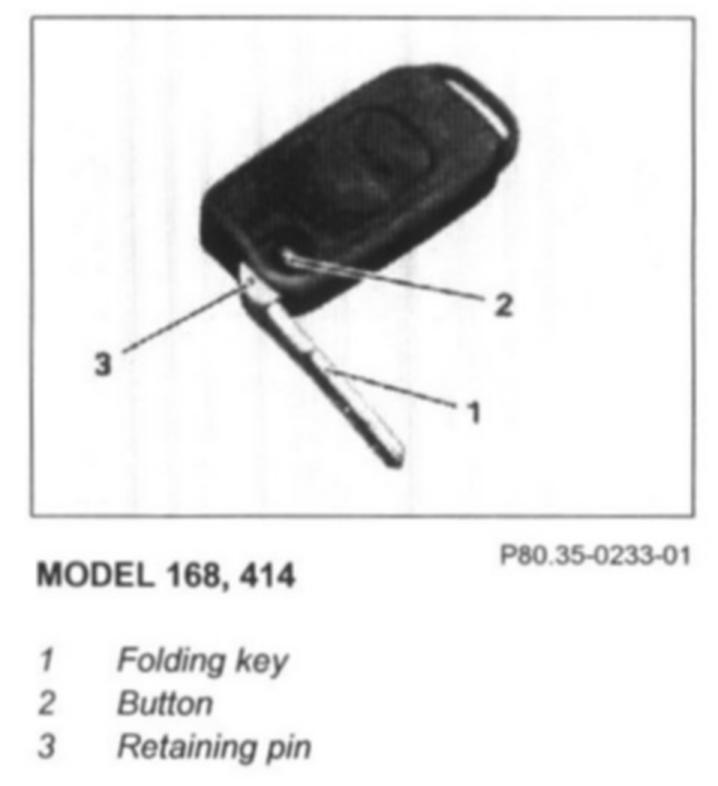

1 Press button (2)
2 Fold folding key (1) out approx. 90°
3 Drive retaining pin (3) out with suitable punch
4 Remove folding key (1)
5 Install in the reverse order
