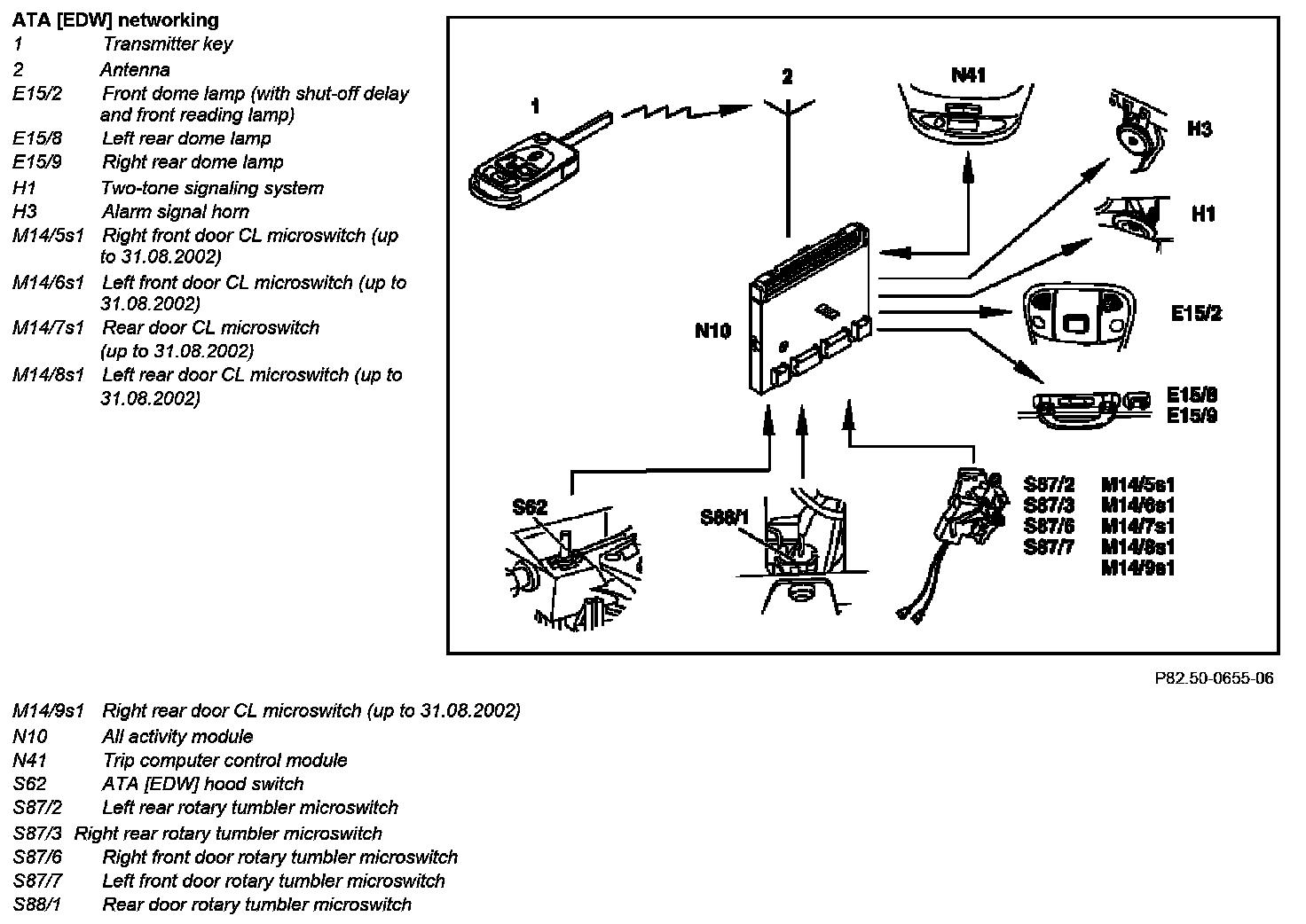

GF80.50-P-0001GH Anti-Theft Alarm System (ATA [EDW]), Function



GF80.50-P-0001GH Anti-Theft Alarm System (ATA [EDW]), Function
- with CODE (551a) Anti-theft alarm system (ATA)







The anti-theft alarm (ATA) is activated when the central locking is locked with the transmitter key, and deactivated when the central locking is unlocked. Additionally, a panic alarm can be triggered on the transmitter key.
