Seat Occupant Sensor: Service and Repair

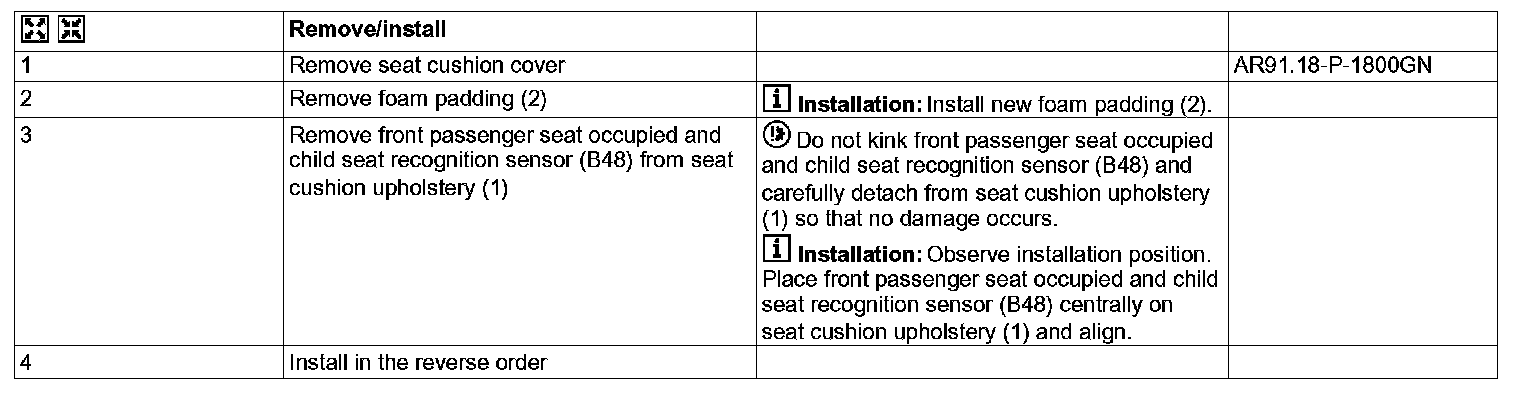

AR91.60-P-0720GZG Remove/install Seat Occupancy Recognition Sensor

- Front passenger seat,
- up to model year 2010


- Front passenger seat

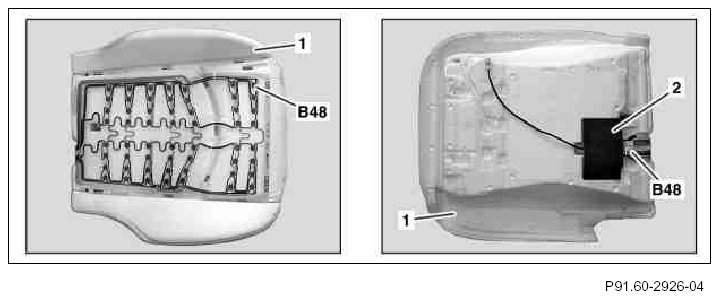

1 Seat cushion upholstery
2 Foam padding
B48 Front passenger seat occupied and child seat recognition sensor
