Fuel System Location Index





FUEL SYSTEM LOCATION INDEX [MZR 2.3 DISI Turbo]

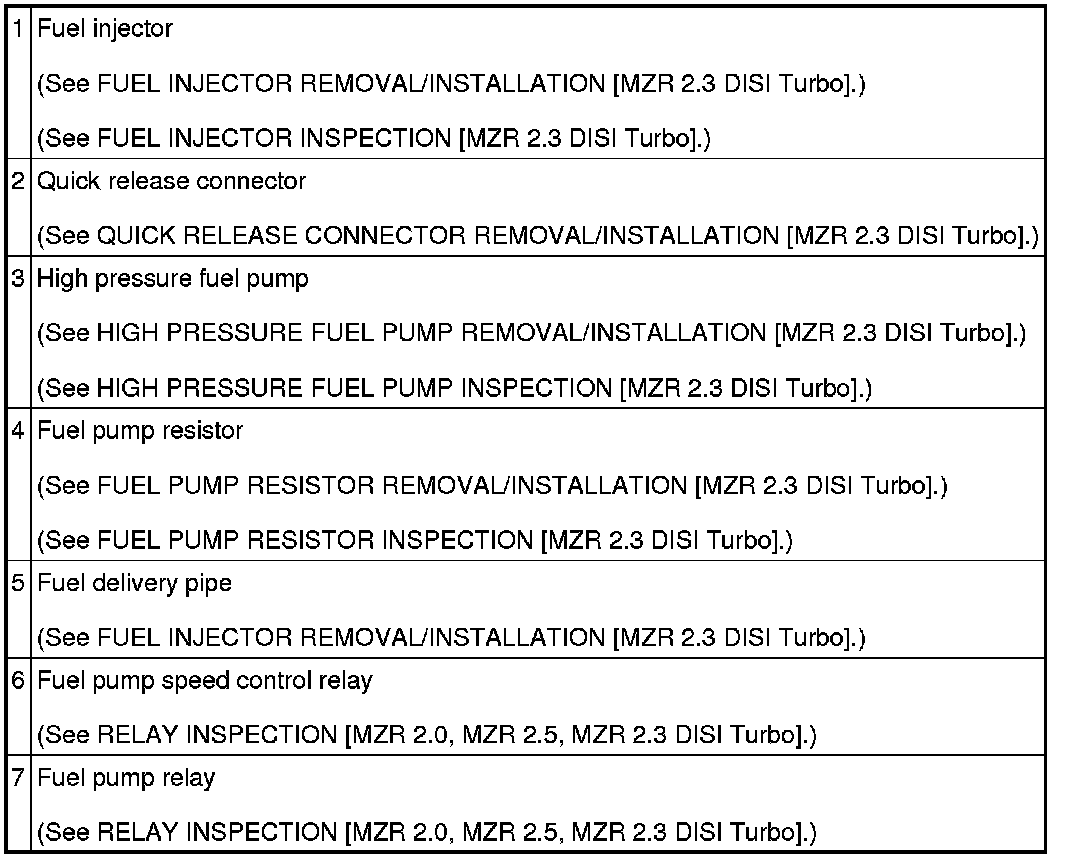

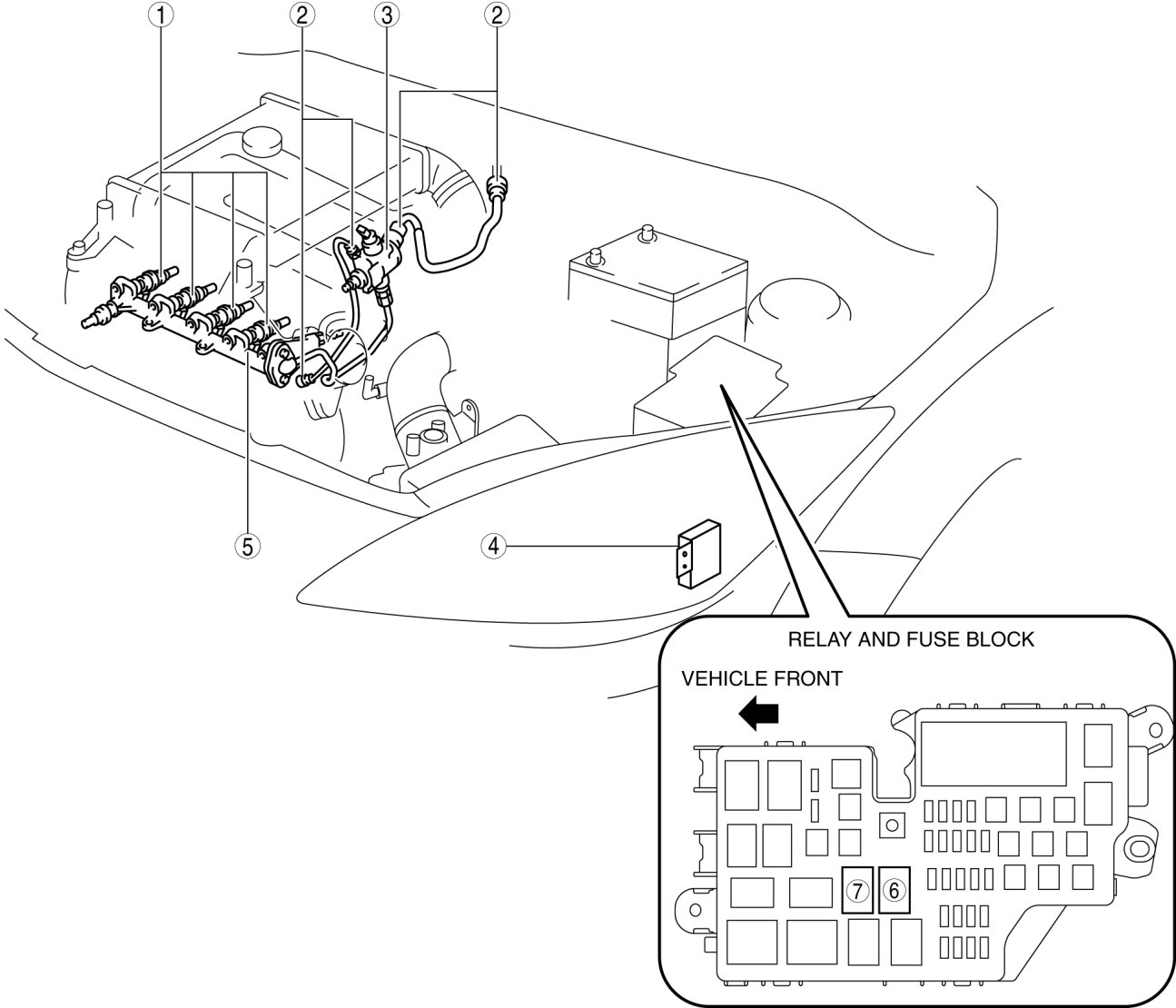

Engine Room Side

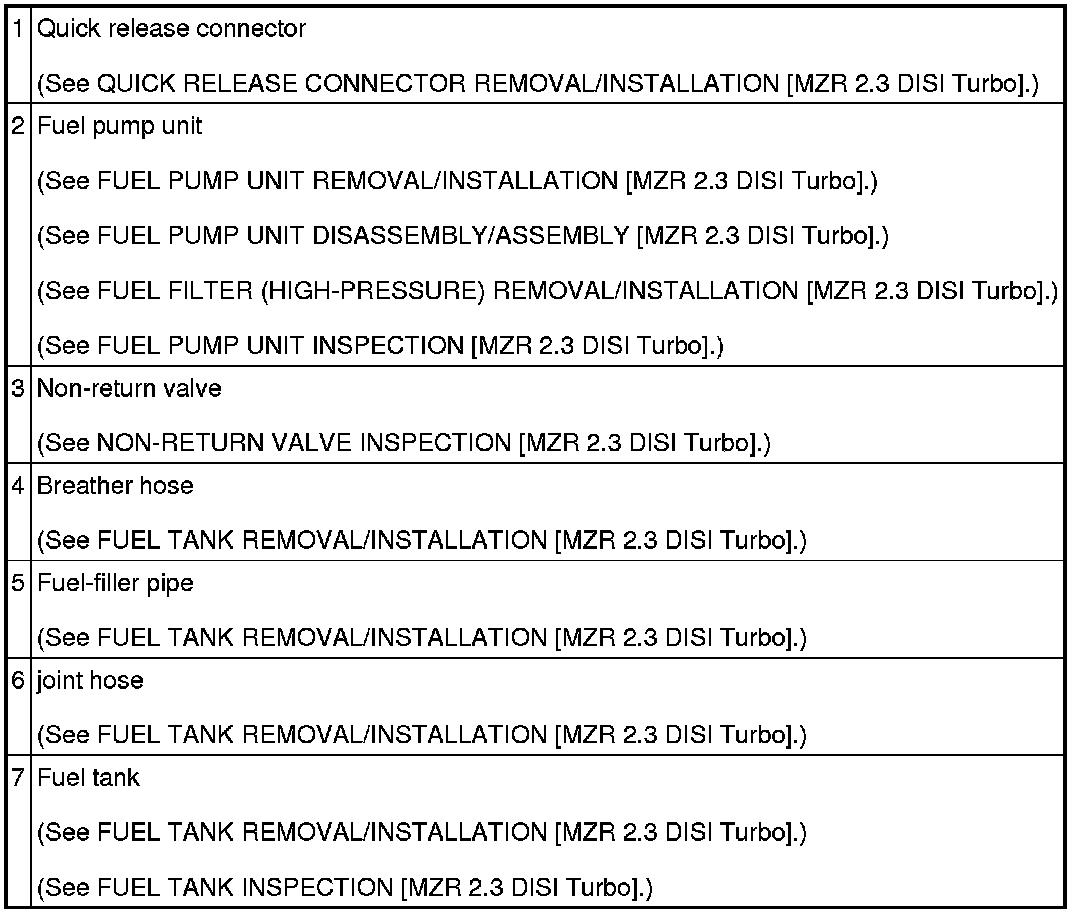

Fuel Tank Side
