Fuel Pump Unit Removal/Installation

FUEL PUMP UNIT REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo]

WARNING:
- Fuel is very flammable liquid. If fuel spills or leaks from the pressurized fuel system, it will cause serious injury or death and facility breakage. Fuel can also irritate skin and eyes. To prevent this, always complete the "Fuel Line Safety Procedure", while referring to "BEFORE SERVICE PRECAUTION".
- A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before performing work on the fuel system, discharge static electricity by touching the vehicle body.

CAUTION:
- Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.

1. Complete the "BEFORE SERVICE PRECAUTION". Before Service Precaution

2. Remove the battery cover. Removal and Replacement

3. Disconnect the negative battery cable. Removal and Replacement

4. Remove the rear seat cushion. Rear Seat Cushion Removal/Installation

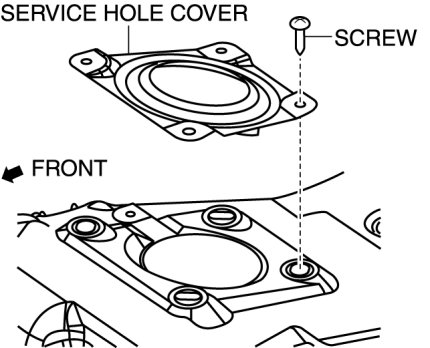

5. Remove the service hole cover.






6. Disconnect the fuel pump unit connector.

7. Disconnect the joint hose of fuel tank side.

8. Disconnect the breather hose of fuel-filler pipe side.

9. Remove the following parts as a single unit.

- Fuel tank
- Breather hose
- Fuel pump unit
- Fuel hose

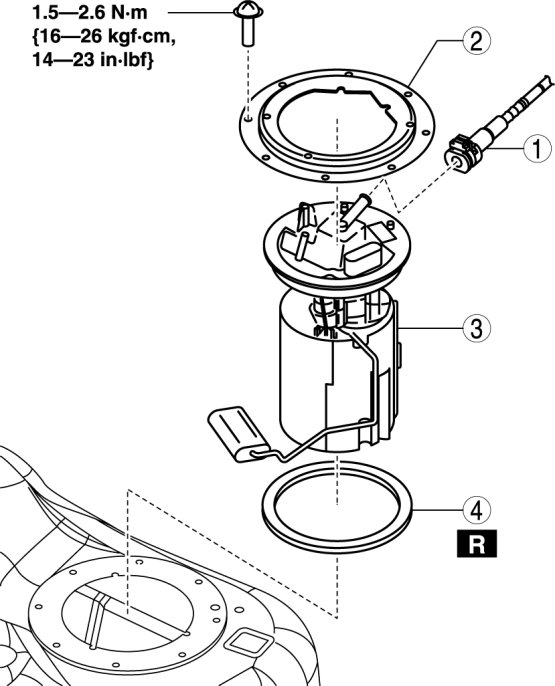

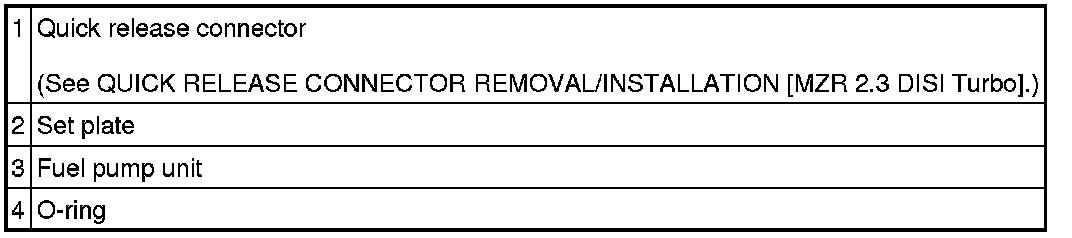

10. Remove the order indicated in the table.










11. Install in the reverse order of removal.

12. Complete the "AFTER SERVICE PRECAUTION". After Service Precaution
