Intake-Air System Vacuum Hose Routing Diagram
Intake-Air System Vacuum Hose Routing Diagram

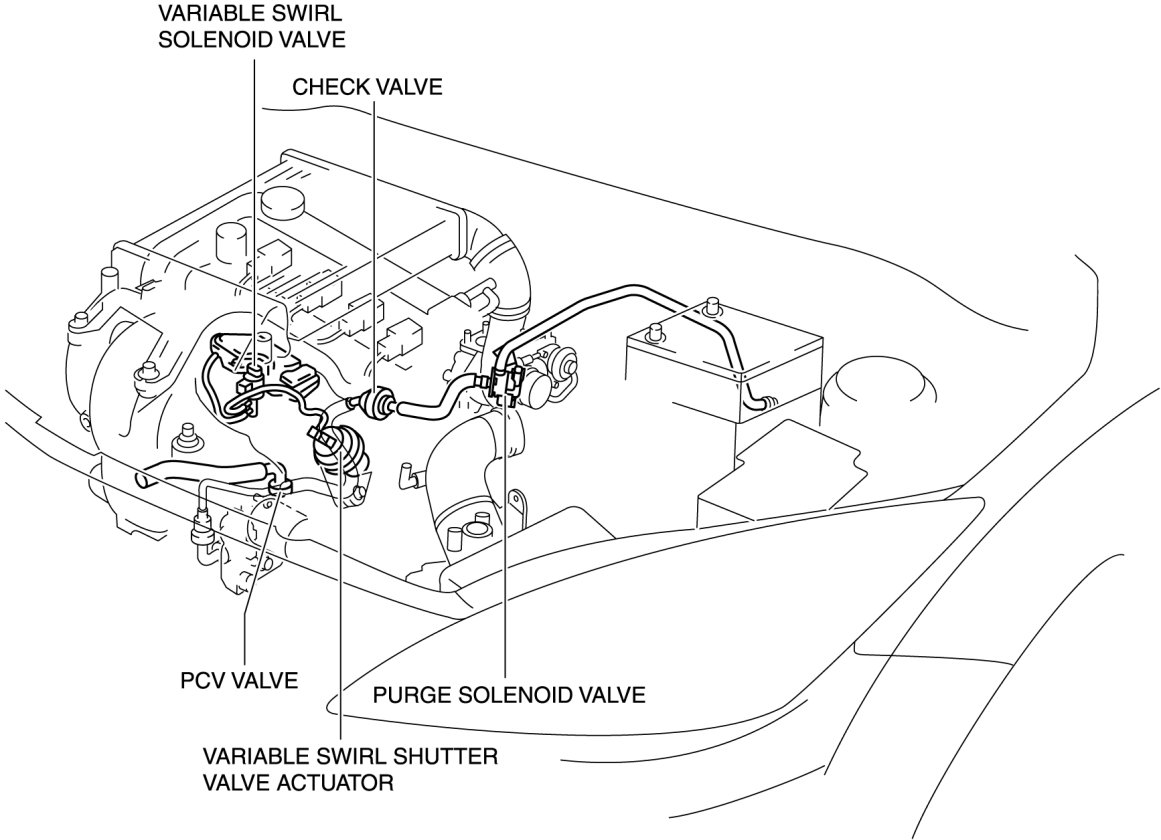

INTAKE-AIR SYSTEM VACUUM HOSE ROUTING DIAGRAM [MZR 2.3 DISI Turbo]
