Symptom Troubleshooting Wiring Diagram

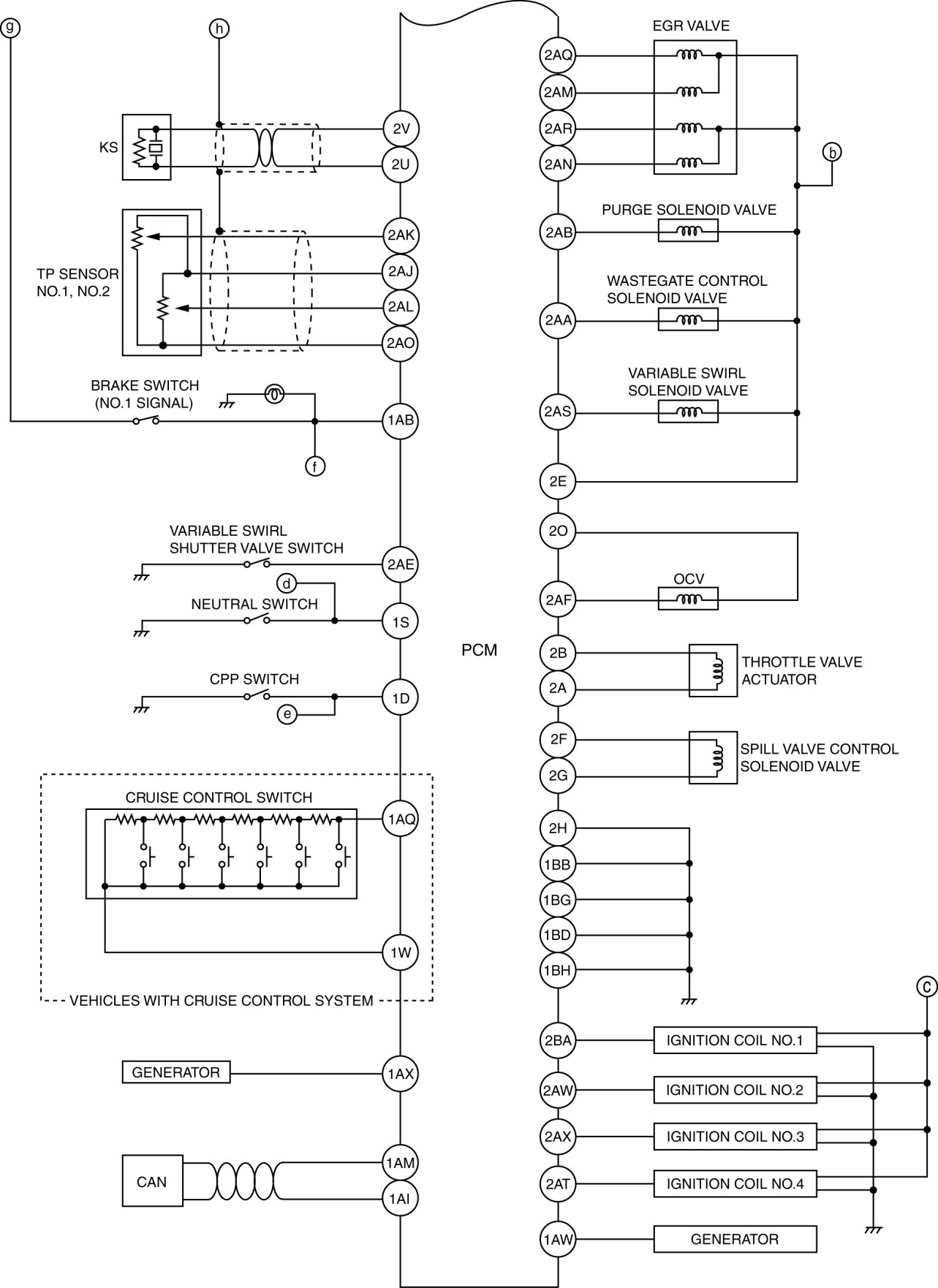

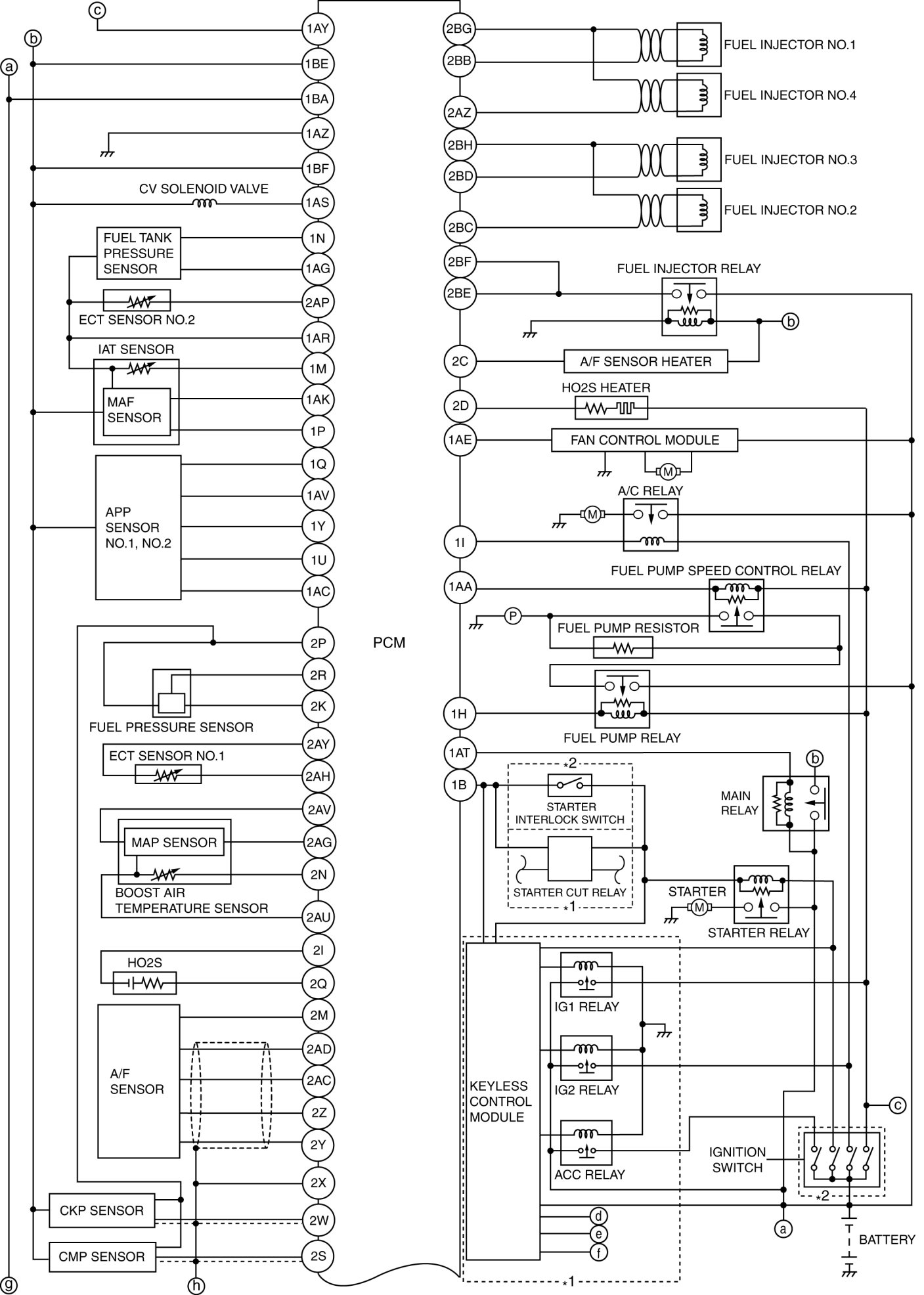

SYMPTOM TROUBLESHOOTING WIRING DIAGRAM [MZR 2.3 DISI Turbo]









*1
Vehicles with advanced keyless entry and push button start system
*2
Vehicles without advanced keyless entry and push button start system
