FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mazda
>>
2012
>>
Mazdaspeed3 L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No. 19 Exhaust Smoke
No. 19 Exhaust Smoke
NO.19 EXHAUST SMOKE [MZR 2.3 DISI Turbo]

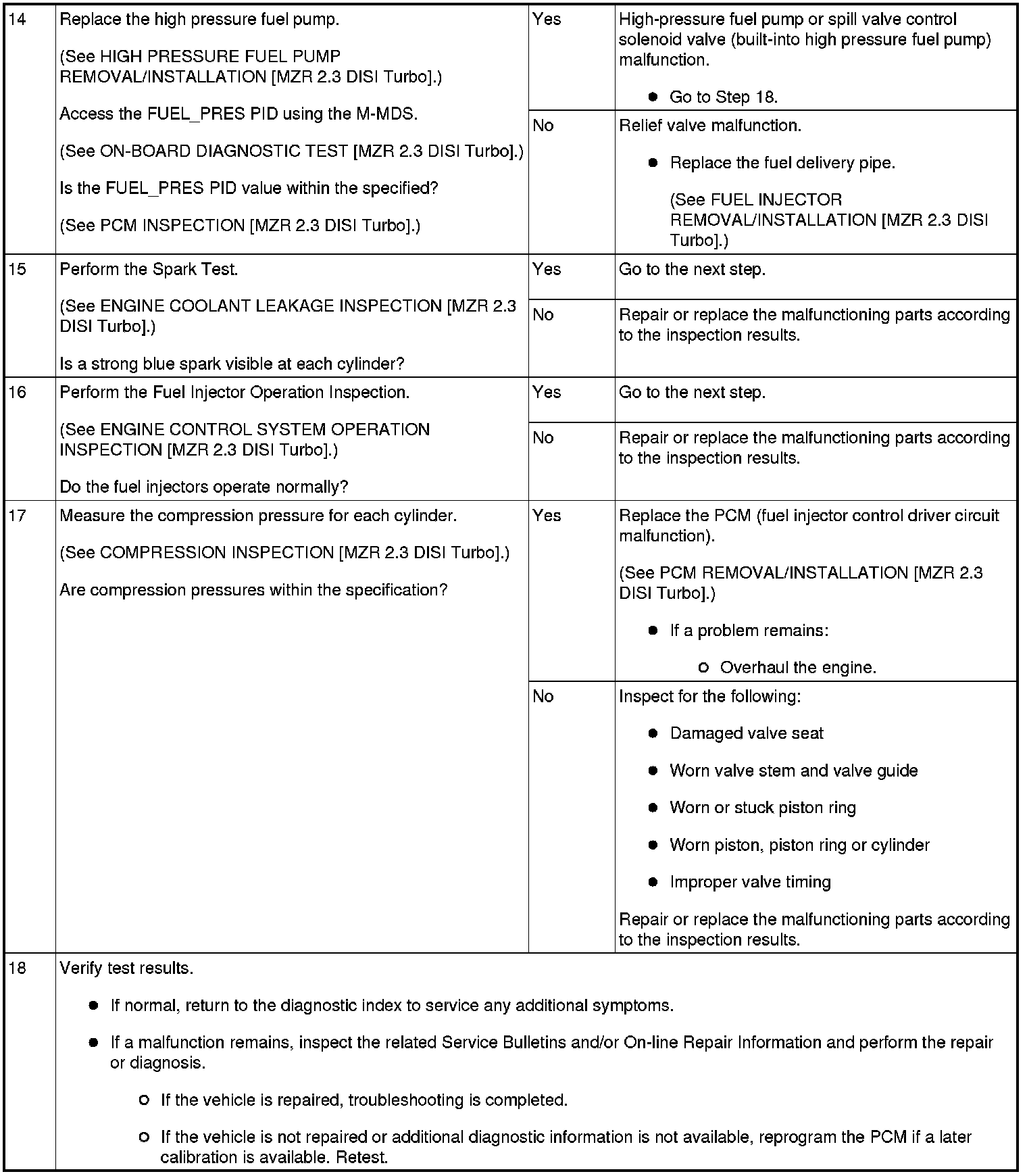

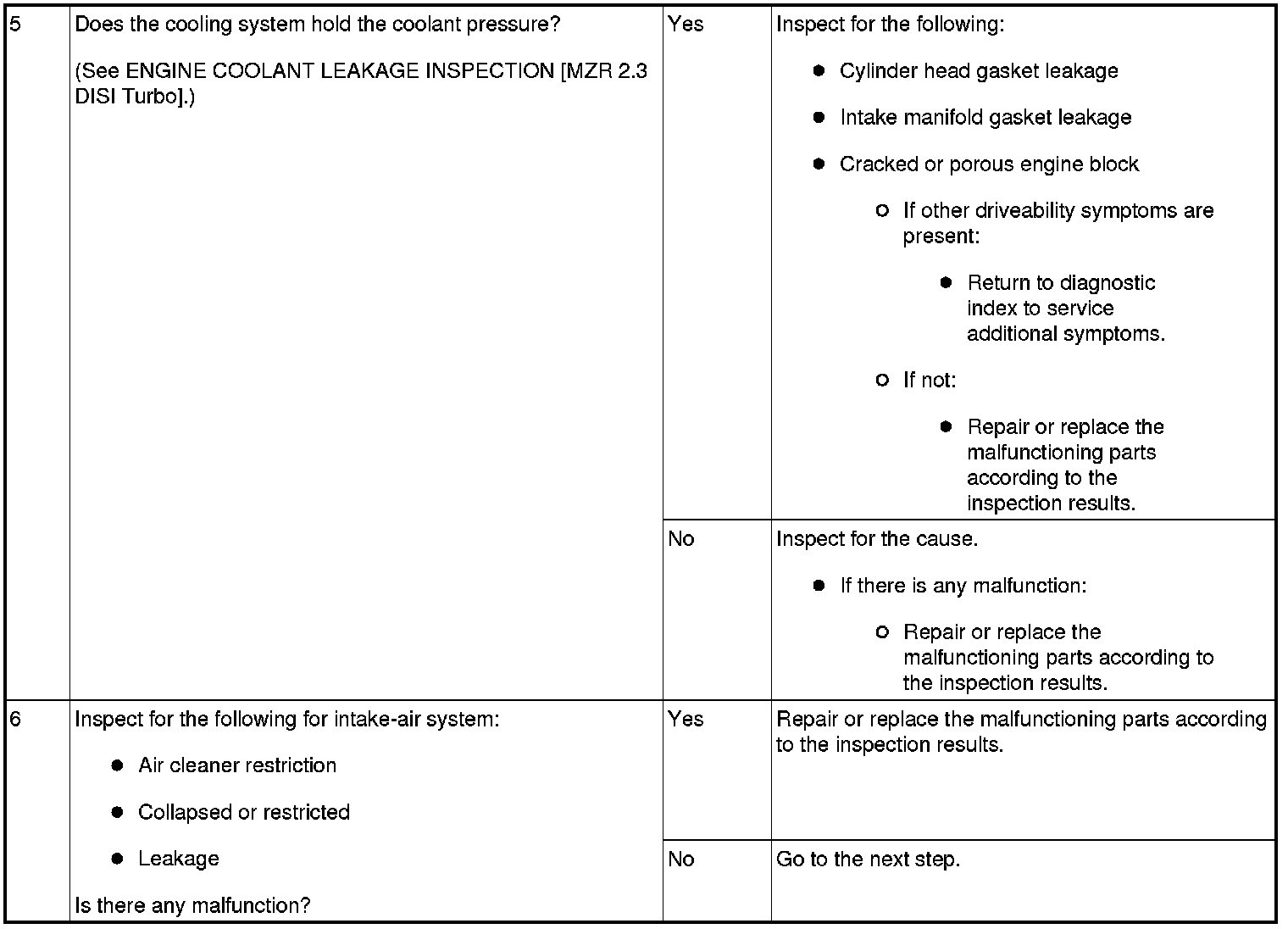

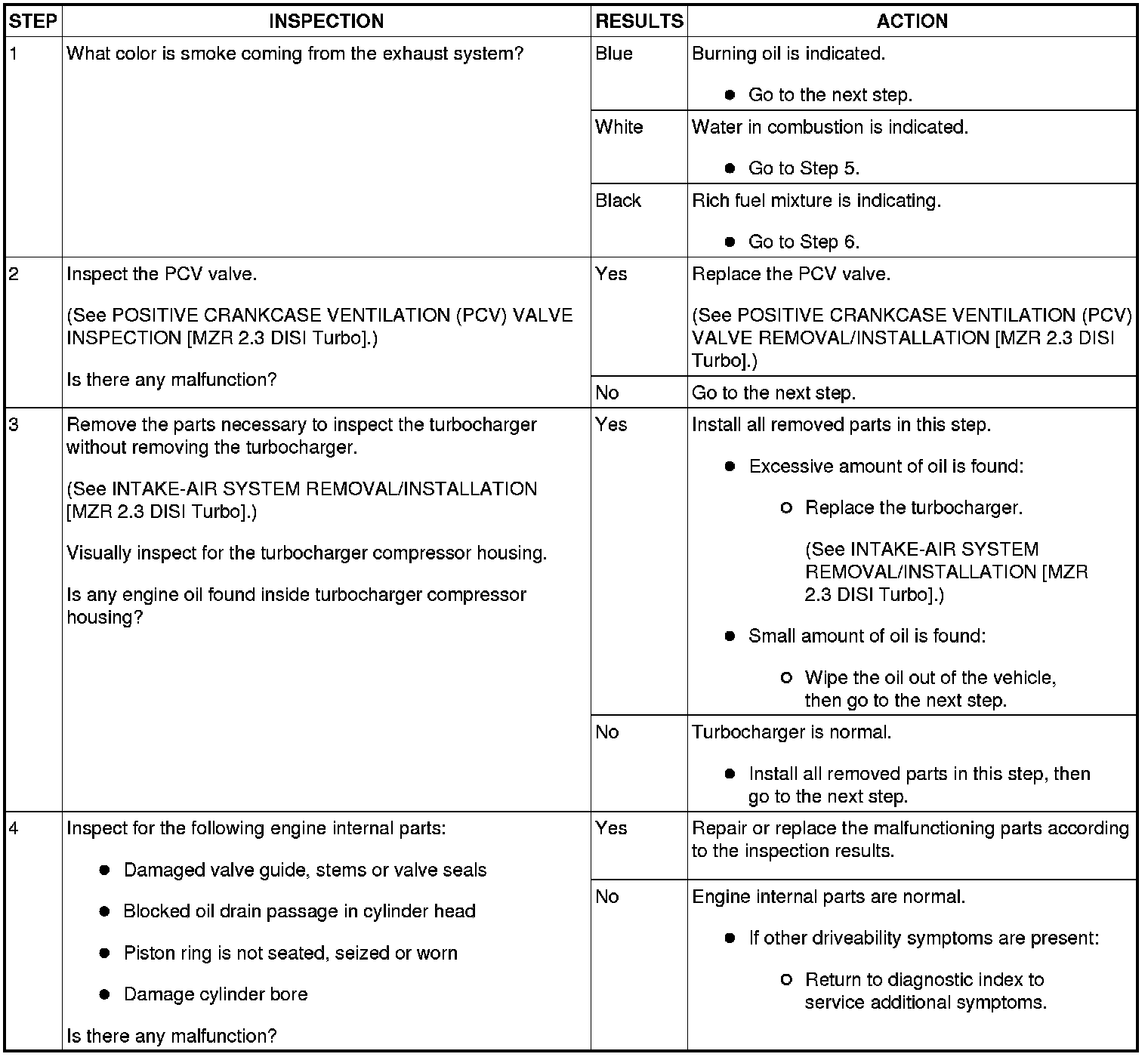

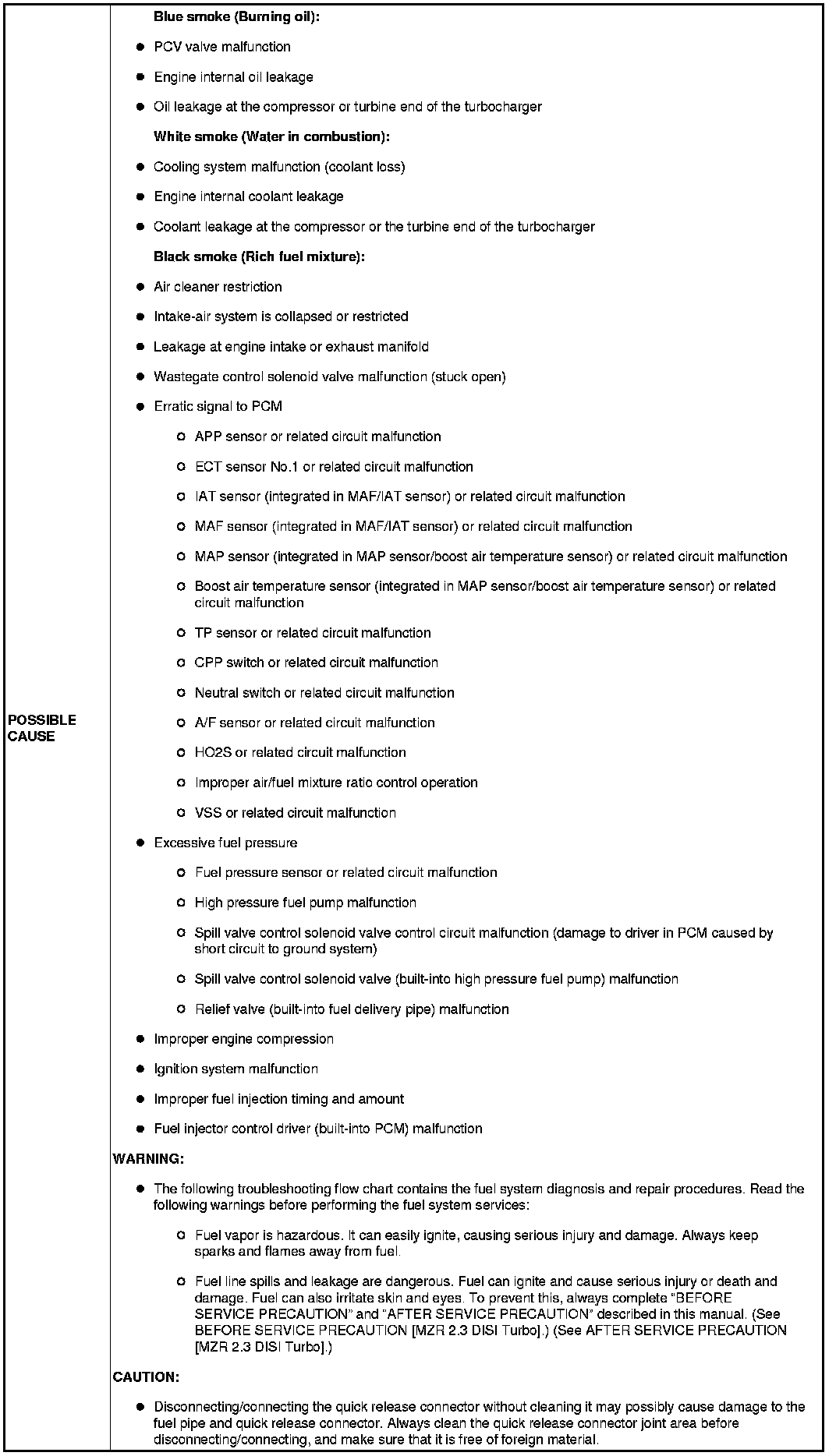

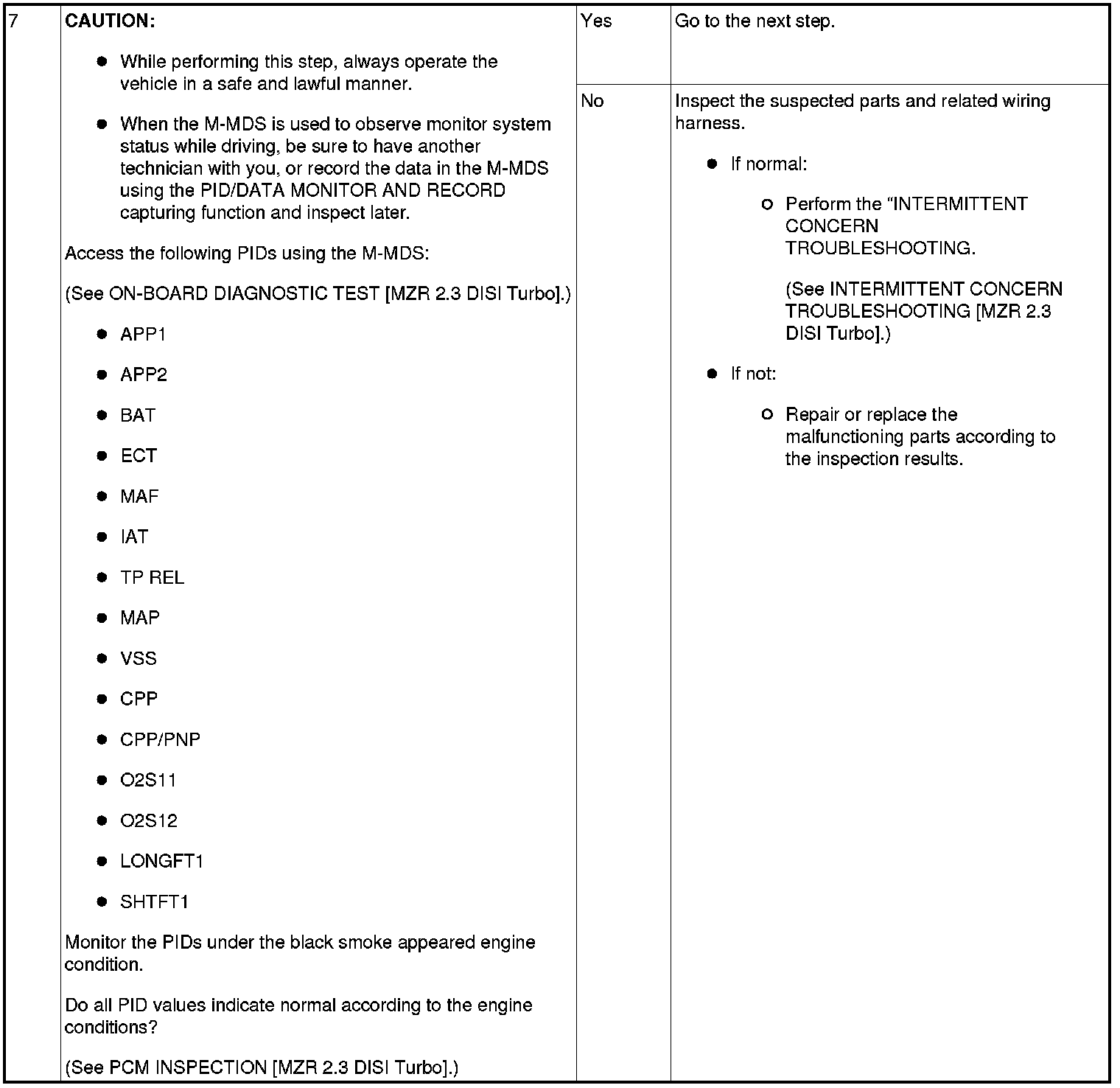

Diagnostic procedure
