No. 17 Cooling System Concerns-Overheating

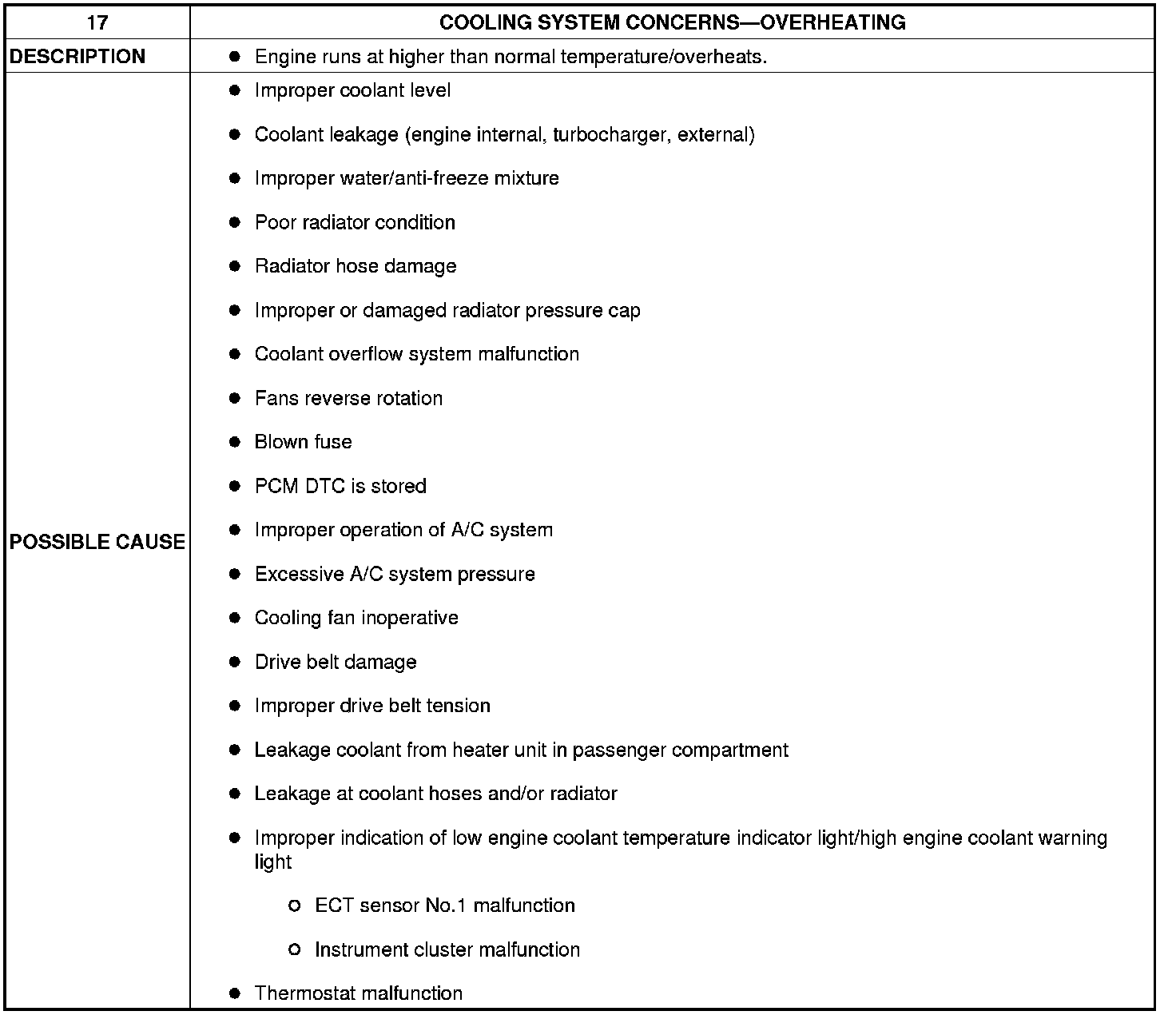

No. 17 Cooling System Concerns-Overheating
NO.17
COOLING SYSTEM
CONCERNS-OVERHEATING [MZR 2.3 DISI Turbo]

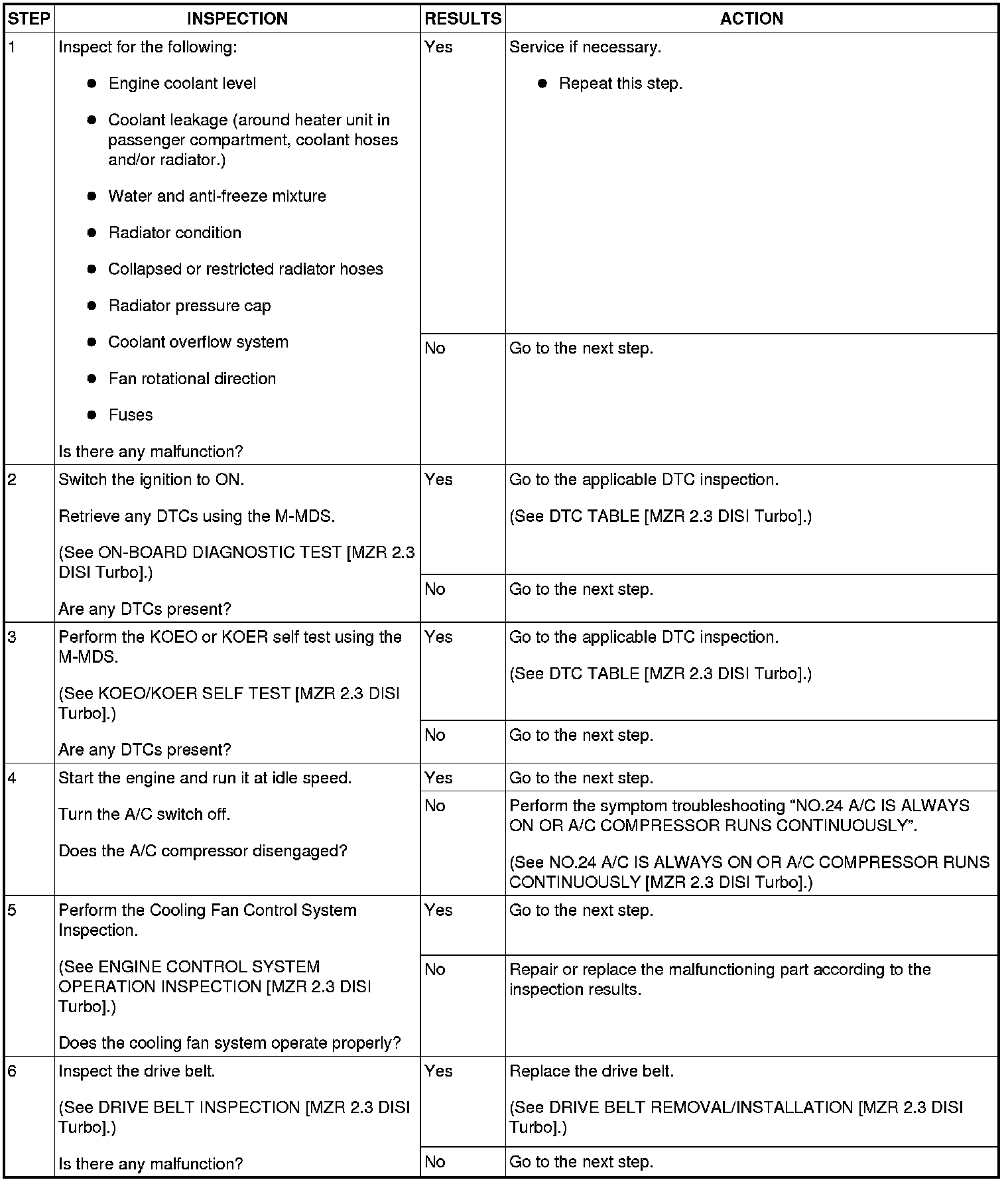

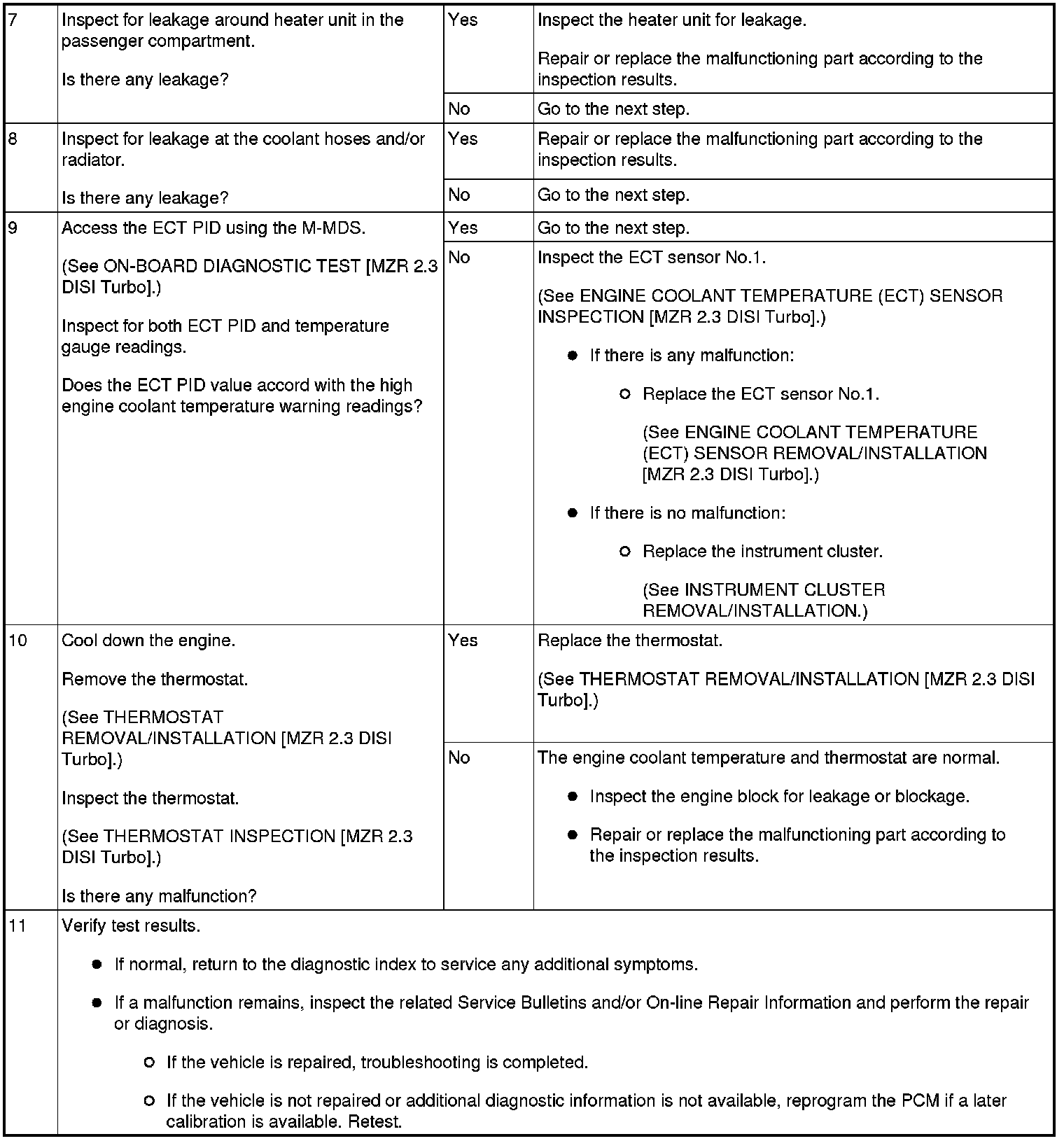

Diagnostic procedure
